Product description

• DJI Ronin-S Essentials Kit Whereas the standard DJI Ronin-S comes with a focus wheel, control cables, a power adapter, and other accessories, the Essentials Kit includes the gimbal and the key accessories required to go out and begin shooting. There's a difference of only several accessories, accompanied by a substantially more affordable cost, and you can always add a focus wheel or other accessory at a later point.

  The Ronin-S represents a scalable ecosystem for integrating DSLR and mirrorless cameras into professional-grade workflows. The single-handed form factor of the Ronin-S supports up to 8 lb and runs up to 12 hours on a single charge of the included battery grip. Additionally, separate modules are available sold separately for the handle and accessory docks, allowing you to customize the gimbal based on how you wish to operate it.Between the front trigger, the rear mode button, and the joystick, precise gimbal control lets you obtain the shots you require. The front trigger can lock the gimbal when held, re-center the gimbal when tapped twice, and engage the Selfie mode by turning 180° when tapped three times. Press the mode button to engage three customizable operation profiles, each with tuneable speed and response for different shooting scenarios. If fast-moving subjects are your forte, the Sport mode delivers extra-quick response times and fast gimbal movements, up to a maximum speed of 45 mph. With this operation flexibility, the Ronin-S will fit into documentary, event, and feature film workflows.

  The gimbal and all included accessories can be stored inside the included case, which helps protect your equipment during storage and transport.

  Automated Creative Features

  Panorama
  • Use the Ronin-S to capture panoramic photos using precise gimbal movements.
  Time-Lapse and Motion-Lapse
  • Using the DJI Ronin app for Android and iOS you can control your camera to take photos at specific intervals which, when combined and sequenced in post, can yield creative time-lapse movies. You can also pre-set a path for the gimbal to follow during time-lapse photography inside the app as well. Gimbal movement adds dynamic motion to your finished product without using post-production tools that can decrease resolution.
  Tracking
  • With the Track function, you can program a repeatable gimbal movement. Having this functionality is great for when you need to block out scenes precisely and require complex camera moves to be executed without active operator input.

  General Features

  Offset Roll Motor
  • By offsetting the roll motor the Ronin-S holds the camera above the roll axis, leaving the camera's LCD screen unblocked. This design also minimizes the camera shake that occurs when transitioning from upright to underslung modes and vice versa.
  SmoothTrack
  • Customize the response of the Ronin-S to fit your shooting style. Two response types can be saved and instantly recalled with a single click of the mode button. Go from smooth camera movement to rapid response with the flick of a switch to be ready for any kind of shooting situation.
  Modular Design
  • The Ronin-S was built to be modular. Direct-connected and wireless accessories are supported. For example, separately available DJI control devices, such as the Master Wheels and Master Force, enhance the usability of the Ronin-S in professional scenarios. The S-Bus connection supports third-party controls compatible with that standard protocol.
  Versatility
  • The Ronin-S can mount onto an RC buggy for low-angle shots, or even act as a stabilized remote head when mounted to a jib. The DJI Focus Command Unit can be mounted on the accessory dock, enabling creators to pull focus when operating with the standard handle. You can also attach the Ronin-S to a dual-handheld bar without compromising control of the gimbal, focus, or the camera shutter.
  Multitasker
  • Multiple accessory mounts are allocated on the Ronin-S, providing full support for add-ons such as a microphone, LED light, or a wireless video transmitter. Compatibility with DJI control devices such as Master Force provides intuitive controls. The Master Wheels are also able to provide remote operators with precise gimbal movements.
  Additional Features
  • Advanced 32-bit ARM processor
    DJI specialized gimbal drive motors with encoders
    Support for 2.4/5.8 GHz receivers
    Support for D-Bus receiver
    Support for extended GPS
    360° continuous rotation through slip ring
    Three profile settings, including SmoothTrack and joystick parameters
    Support for virtual joystick operation
    Support for time-lapse, track, and panorama
    Sport mode support
    Roll 360° rotation support
    Quick record function
  UPC: 190021329461
• Nanuk 923 Case for DJI Ronin-S Gimbal (Black) Keep your DJI Ronin-S gimbal snug and safe with this black 923 Case from Nanuk. Featuring a custom-cut foam insert, this case ensures all your gimbal's delicate parts remain in place and properly organized. The Nanuk 923 boasts a tough yet lightweight NK-7 resin shell, a PowerClaw latching system, and a waterproof design. Rubber feet provide a secure grip while two standard TSA locking latches protect your Ronin-S and accessories during your travels. The spring-loaded handle retracts when not in use and the reinforced padlock eyelets add another layer of protection for your gear.
  • TSA PowerClaw latching system
  • Waterproof and dustproof, IP67-rated
  • Impact-resistant NK-7 resin construction
  • Two padlockable hasps
  • Stackable with similar cases
  • Molded-in bezel system
  • Soft-grip stay handle
  • Automatic pressure-release valve
  • Integrated lid stay
  • Stainless steel hardware
  UPC: 666365021052

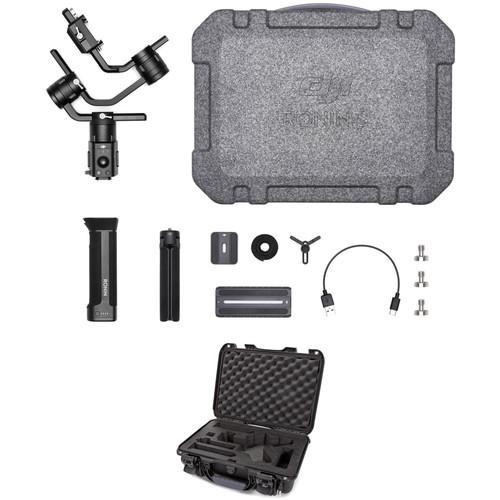

• Ronin-S Essentials Kit bxfcqvvaeawffvrtwbcawefwf
• Ronin-S
• BG37 Grip with Built-In Battery
• Camera Mounting Plate
• 3 x 1/4"-20 Camera Screw
• USB Type-C Cable
• Lens Support
• Camera Riser
• Extended Grip/Tripod (Plastic)
• Touch Fastener Strap for Gimbal
• Storage Case
• Limited 1-Year Warranty on Gimbal
• Limited 6-Month Warranty on Motors

• Nanuk - 923 Case for DJI Ronin-S Gimbal (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Ronin-S Essentials Kit

  Number of Axes	3-Axis (Pitch, Roll, Yaw)
  Rotation Range	Yaw (Pan): 360° Pitch (Tilt): 280° (-95 to 185°) Roll: 360°
  Follow Speed	Pan: 360°/s Tilt: 360°/s Roll: 360°/s
  Load Capacity	8 lb / 3.6 kg

  Ports	1 x USB Type-C
  Wireless Frequency	Remote: 2.4 GHz (2.4 - 2.48 GHz)
  Wireless Protocols	Bluetooth 4.0

  Battery Type	1 x Built-In
  Capacity	2400 mAh, 34.56 Wh
  Battery Runtime	12 Hours
  Battery Chemistry	Lithium-Ion

  Operating Current	0.16 A

  Operating Temperature	-4 to 113°F / -20 to 45°C

  Mounting	1 x 1/4"-20, Female 1 x 3/8"-16, Female
  Dimensions	23.23 x 11.54 x 10.08" / 59.0 x 29.3 x 25.6 cm
  Weight	4.1 lb / 1.86 kg

  Box Dimensions (LxWxH)	18.9 x 13.7 x 6.2"

• Nanuk 923 Case for DJI Ronin-S Gimbal (Black)

  Holds	DJI Ronin-S gimbal USB power adapter BG-37 grip Camera mounting plate Accessories box Extended grip/tripod
  Materials	Case Shell: NK-7 high-impact polypropylene Latches: Nylon 66 Handle: NK-7 high impact polypropylene, TPE Purge Valve: Nylon 66, Gore membrane, silicone washers Pins/Hardware: 304 stainless steel Gasket: EPDM
  Buoyancy	40 lb / 18.1 kg, max.
  Temperature Range	-20 to 140°F / -29 to 60°C
  Airline Carry-On	Yes
  Certifications	IP67: Waterproof and dustproof ATA Specification 300: Category 1 impact ASTM D-4169 DC-18: Drop test at 19" / 48 cm ASTM D-4169 DC-18: Vibration ASTM D-4169 DC-18: Rainfall MIL-STD-810F: Immersion down to 3.28' / 1 m
  Locking System	0.34" / 0.86 cm padlock holes
  Lid Depth	1.8" / 4.6 cm
  Base Depth	3.6" / 9.1 cm
  Exterior Dimensions	18.6 x 14.4 x 6.3" / 47.2 x 36.6 x 16.1 cm
  Interior Dimensions	16.6 x 11.3 x 5.4" / 42.2 x 28.7 x 13.7 cm
  Weight	6.9 lb / 3.1 kg, with foam

  Box Dimensions (LxWxH)	18.9 x 15.2 x 6.8"
