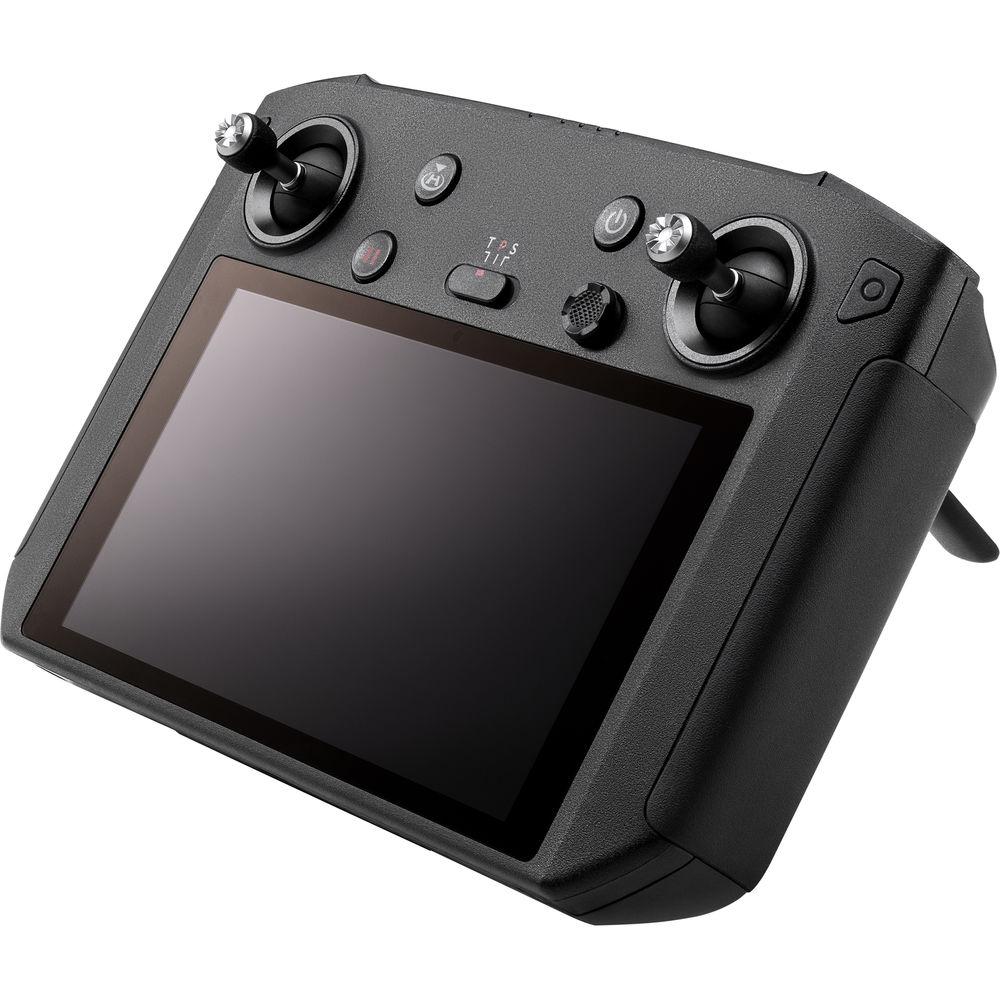

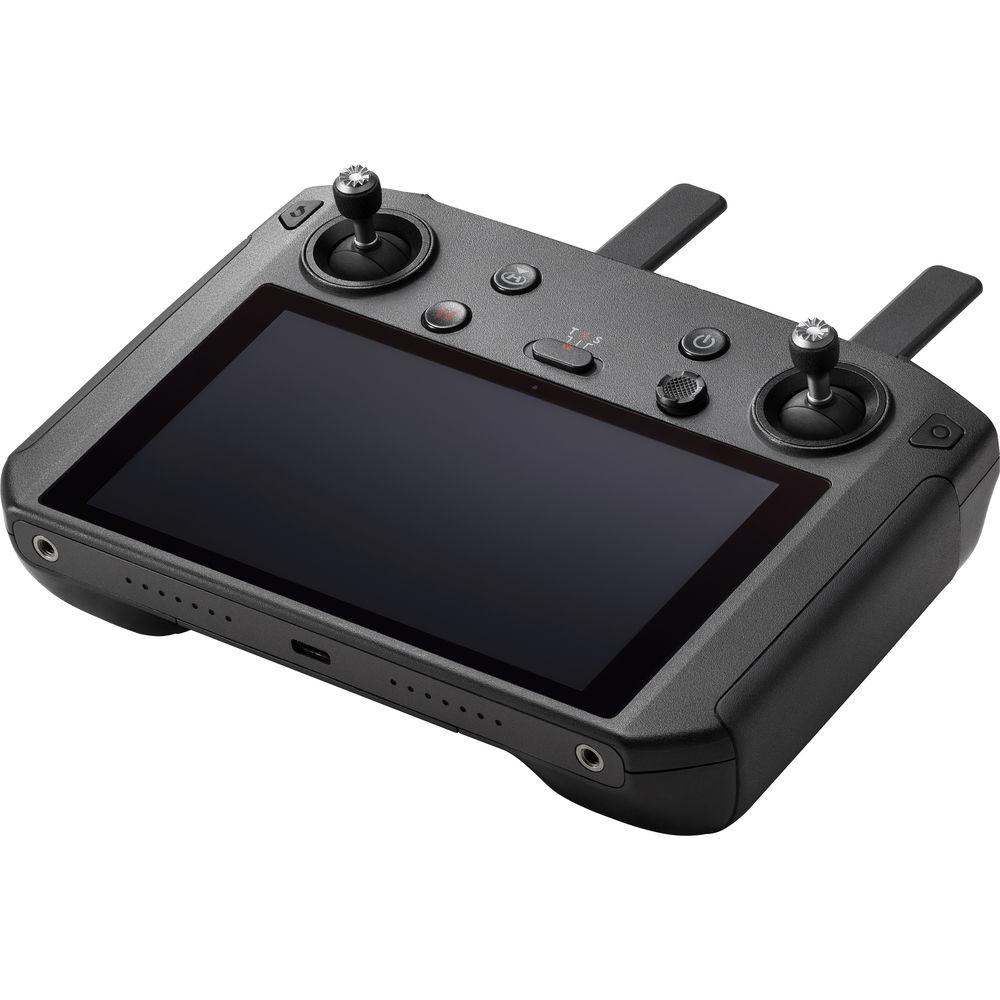

User Manual for DJI Smart Controller Click to enlarge the picture
Contents of the user manual for the DJI Smart Controller
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Smart Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

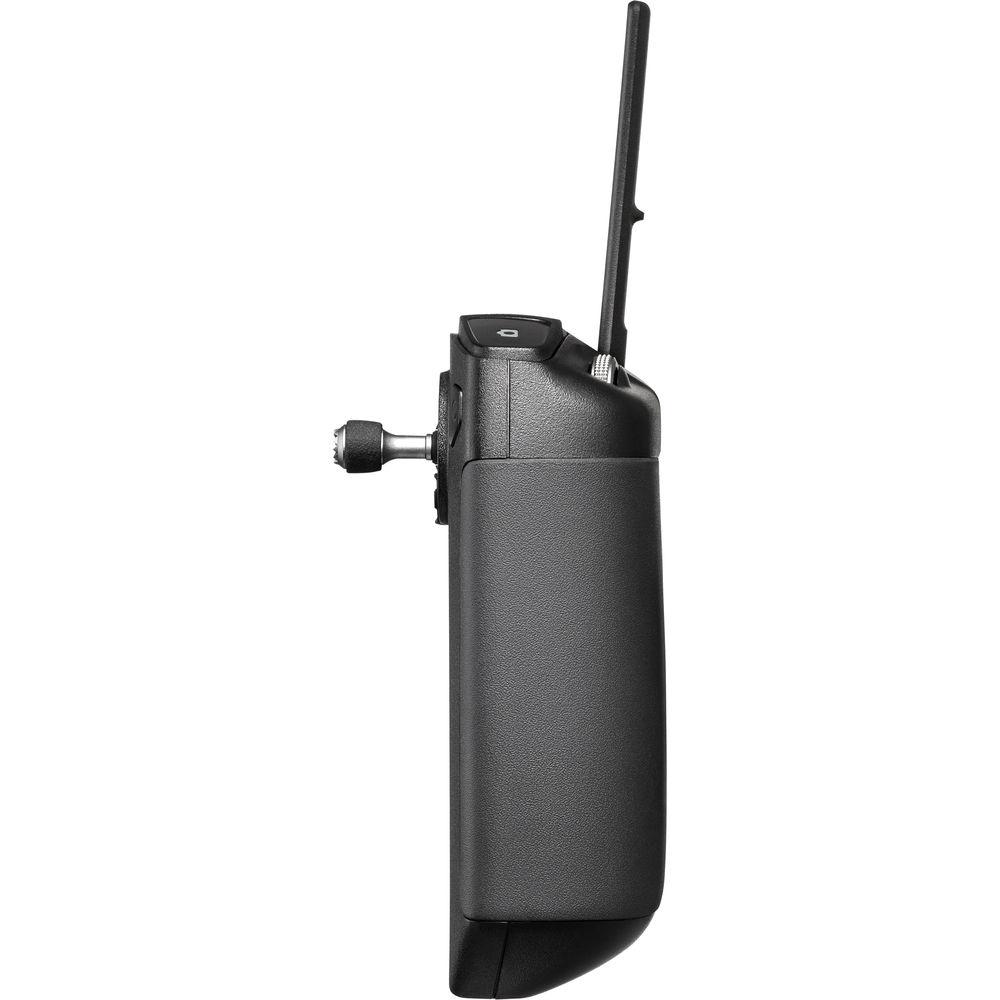

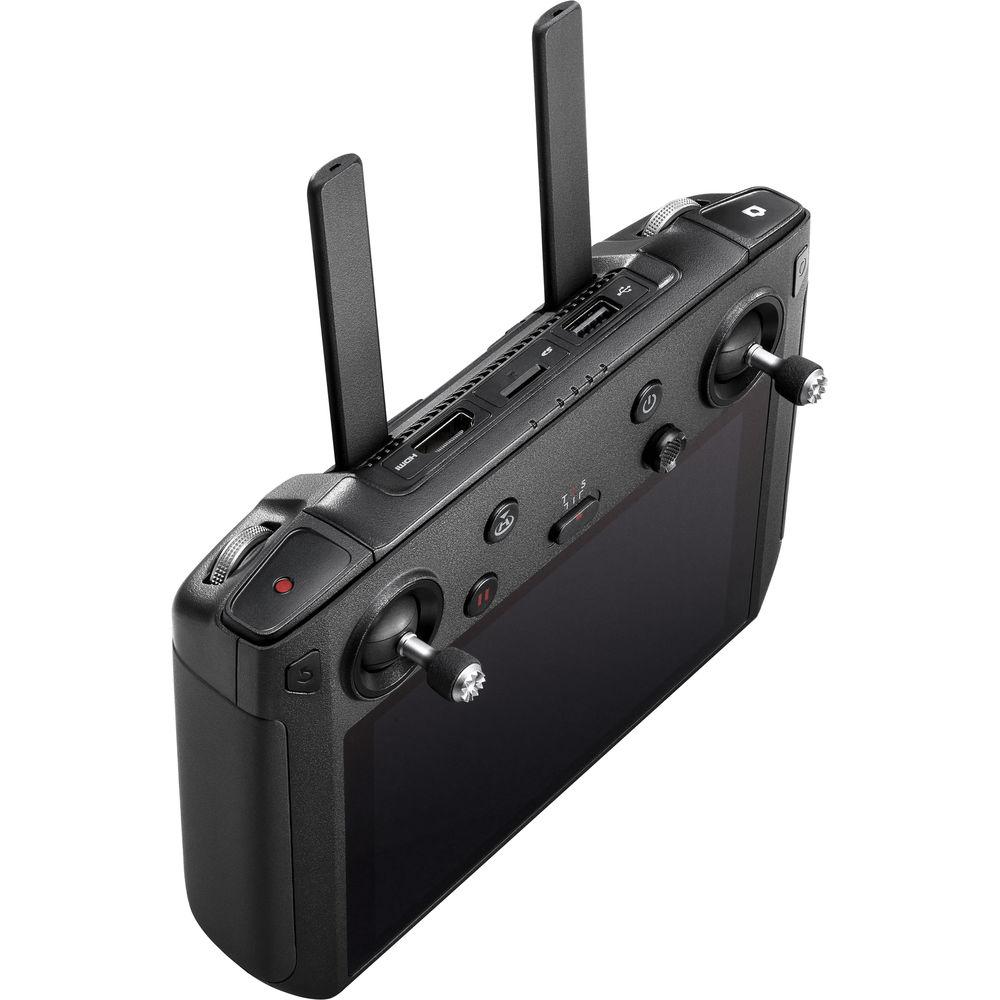

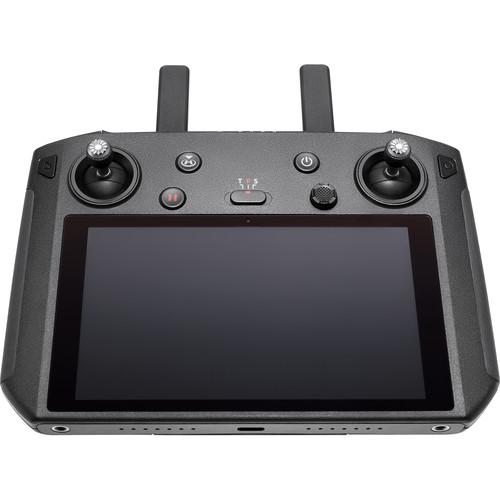

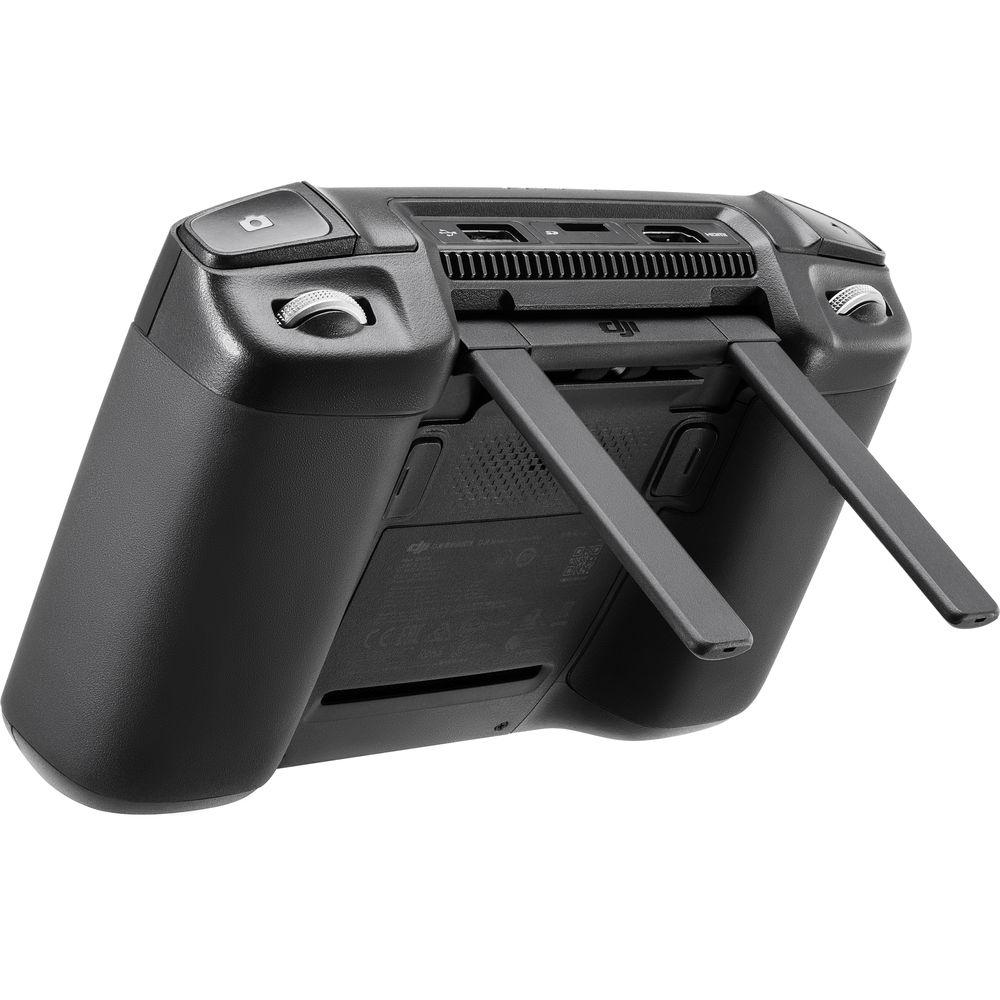

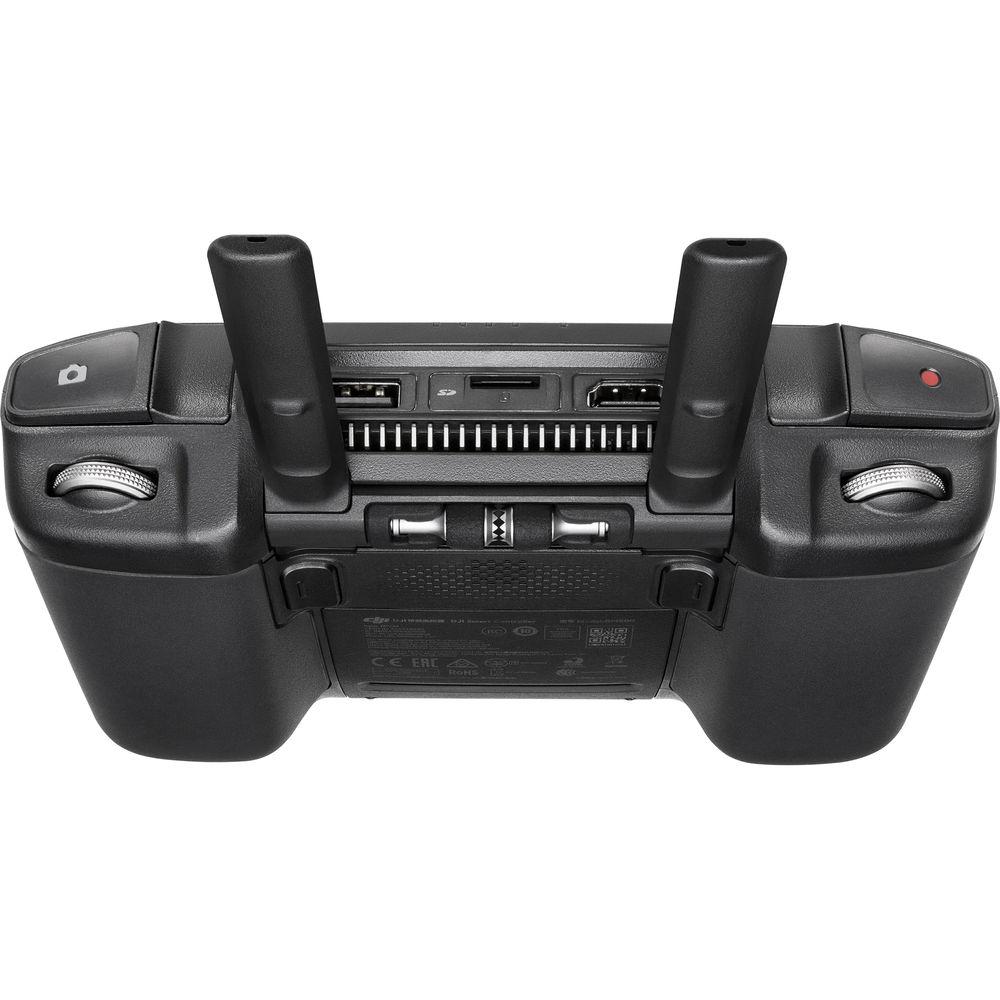

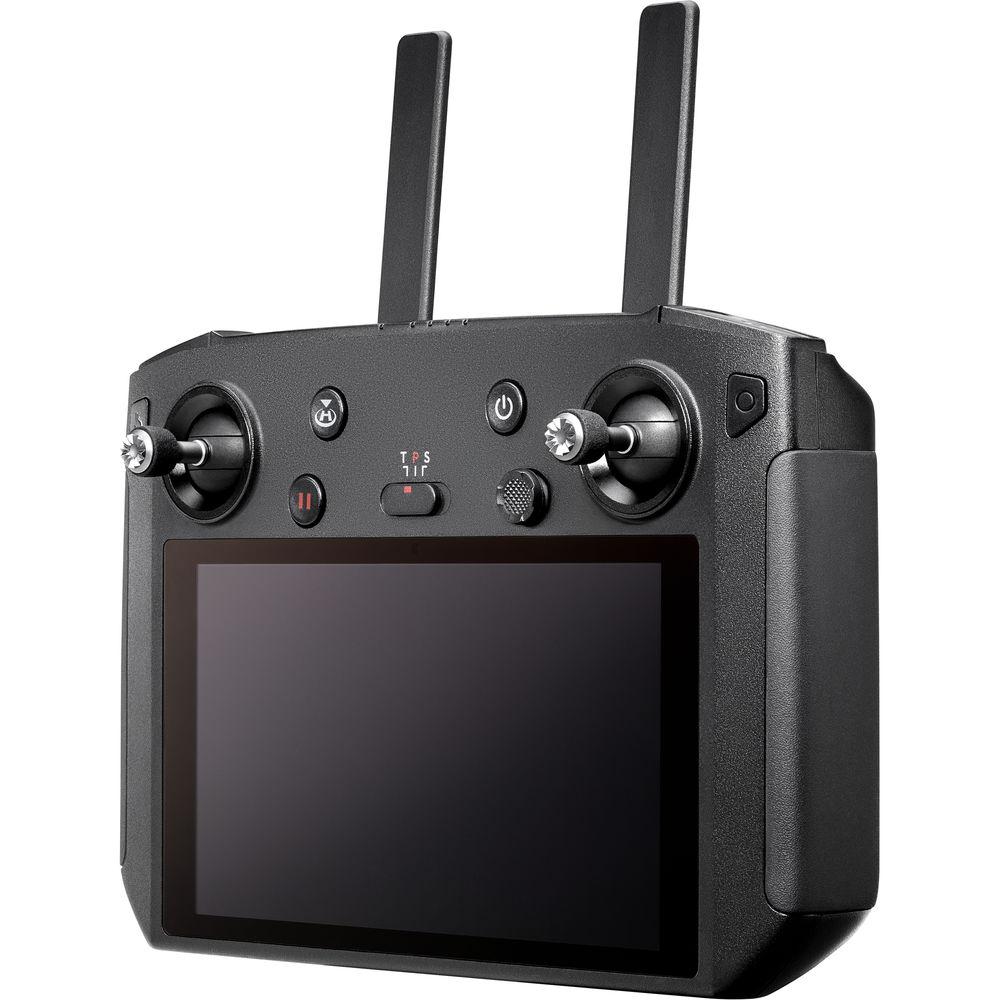

Product description Pilot your Mavic 2 Pro, Zoom, or any other OcuSync 2.0-compatible drone in style with the Smart Controller from DJI. The Smart Controller has been engineered and designed to drastically improve your piloting experience and your ability to quickly connect your work with the world. With the Smart Controller, you can experience the joy of flying via a built-in 5.5" screen that displays your gimbal's footage and flight data in Full HD 1080p60 resolution. It's also designed to be extremely viewable, even in direct sunlight, with 1000 cd/m2 of brightness.
DJI's OcuSync 2.0 technology helps keep that crisp and clear HD video feed stable at up to five miles by having the ability to auto-switch between 2.4 and 5.8 GHz signals. And you don't have to wait to share the great footage with everyone online. The Smart Controller is designed to get your content out there quickly with SkyTalk and DJI Go Share. With these features and more, the Smart Controller is meant to elevate your flying experience, give you the tools to fly in more locations, and connect with more people around the world. - DJI Go Share
- Go from drone to phone in minutes with DJI Go Share, designed to get the content you just shot uploaded to the web quickly and conveniently. DJI Go Share is a function of the DJI GO 4 app which can access the 16GB of storage built into the Smart Controller. With that access, DJI Go Share gives you the ability to transfer images and clips to your smartphone or tablet.
- SkyTalk
- SkyTalk lets you connect to your audience in real time, giving you the ability to live stream your drone's camera to social media platforms such as Facebook and Instagram. SkyTalk also lets you create short videos to share instantly.
- Microphone, Speaker, and HDMI
- The Smart Controller features a built-in microphone, speaker, and HDMI port to help further enhance your content and share it with others:
- Microphone: The built-in microphone helps you interact and enhance your livestream footage.
- Speaker: Watch and listen to clips directly stored on your Smart Controller.
- HDMI Out: Pass video through the Smart Controller with an HDMI cable (not included) and display it on a TV in 4K resolution at up to 60 fps, utilizing either the H.264 or H.265 codecs.
- Android Inside
- The Smart Controller features a customized Android operating system that combines with the DJI GO 4 app to let you do more within the controller, instead of relying on external mobile devices. It even supports third-party apps to increase your sharing and editing capabilities.
- Go Further, Go Farther
- The Smart Controller has been engineered to support extreme temperatures, letting you film worry-free from a frozen tundra to the scorching desert. It is designed to operate from -4 to 104°F.
- Efficient and Portable
- The Smart Controller connects to your drone as soon as it's powered on, letting you take off and fly quickly. It also features detachable control sticks, making it that much more portable and easy to store in a gear bag or backpack.
- Long Battery Life
- The Smart Controller comes with a 5000mAh battery that supports Quick Charging and can deliver up to 2.5 hours of life per charge.
- Expandable Storage
- Expand the built-in 16GB of storage with an optional microSD card up to 128GB in size.
UPC: 190021324893 In the Box DJI Smart Controller Pair of Spare Control Sticks 24W USB Charger USB 3.0 Type-C Cable Limited 1-Year Warranty More info from DJI Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Smart Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Smart Controller Specs | | | Screen Size | 5.5" / 14.0 cm | | Resolution | 1080p (1920 x 1080) | | Brightness | 1000 cd/m2 | | OcuSync 2.0 | Operation Frequency Range
2.400 to 2.4835 GHz
5.725 to 5.850 GHz
Max Transmission Distance (Unobstructed, Free of Interference)
2.400 to 2.4835 GHz: 2.5 Miles / 4 km (CE, SRRC, and MIC)
2.400 to 2.4835 GHz: 5.0 Miles / 8 km (FCC)
5.725 to 5.850 GHz: 1.24 Miles / 2 km (CE)
5.725 to 5.850 GHz: 3.11 Miles / 5 km (SRRC)
5.725 to 5.850 GHz: 5.0 Miles / 8 km (FCC)
Transmitter Power (EIRP):
2.400 to 2.4835 GHz: 18.5 dBm (CE and MIC), 19 dBm (SRRC), and 25.5 dBm (FCC)
5.725 to 5.850 GHz: 12.5 dBm (CE), 18.5 dBm (SRRC), and 25.5 dBm (FCC) | | | | Protocols | Wi-Fi 5 (802.11ac)
Wi-Fi Direct
Wireless Display
Wi-Fi with 2x2 MIMO | | Operation Frequency Range | 2.400 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 to 5.850 GHz | | Transmitter Power (EIRP) | 2.400 to 2.4835 GHz: 18.5 dBm (CE & SRRC), 20.5 dBm (MIC) & 21.5 dBm (FCC)
5.150 to 5.250 GHz: 19 dBm (CE, SRRC, CE, & FCC)
5.725 to 5.850 GHz: 13 dBm (CE) & 21 dBm (SRRC & FCC) | | | | Protocol | 4.2 | | Operation Frequency Range | 2.400 to 2.4835 GHz | | Transmitter Power (EIRP) | 4 dB (CE, SRRC, MIC & FCC) | | | | Battery | 18650 Li-Ion (5000 mAh at 7.2 VDC) | | Charge | Supports USB Power Adapters Rated 12 VDC, 2 A | | Rated Power | 15 W | | Storage Capacity | 16 GB | | Card Slot | microSD (Supports up to 128 GB Cards) | | Charging Time | 2 Hours (Using a USB Power Adapter Rated 12 VDC, 12 A) | | Working Time | 2.5 Hours | | Video Output Ports | HDMI (H.264 & H.265) | | Charging Port | USB Type-A (5 VDC, 900 mA) | | Operating Temperature Range | -4 to 104°F / -20 to 40°C | | Storage Temperature Range | Under 1 Month: -22 to 140°F / -30 to 60°C
1-3 Months: -22 to 113°F / -30 to 45°C
3-6 Months: -22 to 95°F / -30 to 35°C
Over 6 Months: -22 to 77°F / -30 to 25°C | | Charging Temperature Range | 41 to 104°F / 5 to 40°C | | Supported Aircraft | Mavic 2 Pro
Mavic 2 Pro
Drones that Support OcuSync 2.0 | | GNSS | GPS+GLONASS | | Model Number | RM500 | | Weight | 22.2 oz / 630.0 g (Approximately) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.0 x 8.5 x 2.5" |
