User Manual for DJI Snail Racing Propulsion System Click to enlarge the picture
Contents of the user manual for the DJI Snail Racing Propulsion System
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Snail Racing Propulsion System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description The DJI Snail is a racing-optimized propulsion system created to give drone racers an edge. The system includes four Snail 2305 motors to pair with four Snail 430-R ESCs as well as installation hardware. - 430-R ESCs
- Combined with the separately available Snail MCU, the race-optimized control algorithms found inside the 430-R ESC allow this speed controller to outperform similar products in both response and efficiency. Its ultra-compact hardware design allows it to sustain a continuous current as high as 30A from a form that is just 1.4". It can be further fine-tuned to meet racer needs using the ESC Programmer and DJI Assistant 2.

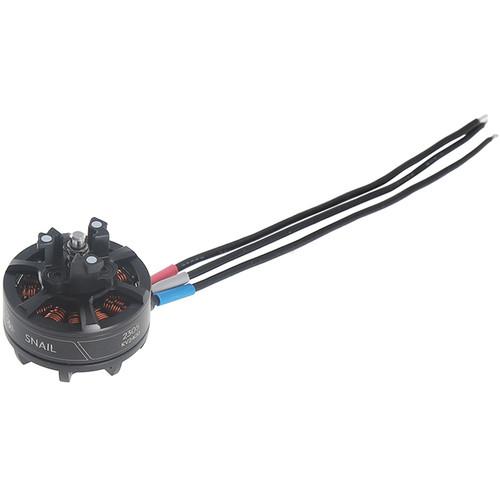

- 2305 Motors
- When combined with the separately available 5048S Tri-Blade Propeller, each Snail 2305 Motor delivers 3 lb of thrust. Extensive simulations and flight tests have been carried out to make the Snail 2305 Motor stronger while keeping weight to a slim 1 oz.

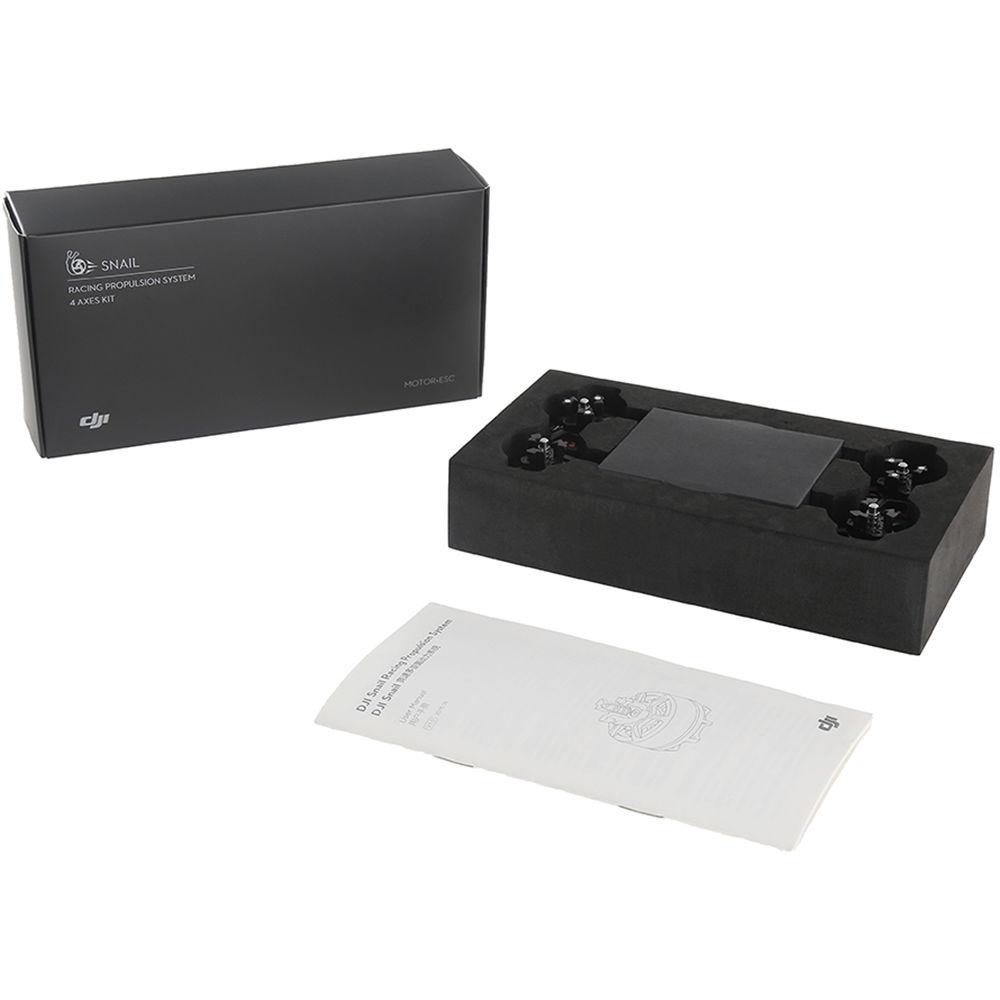

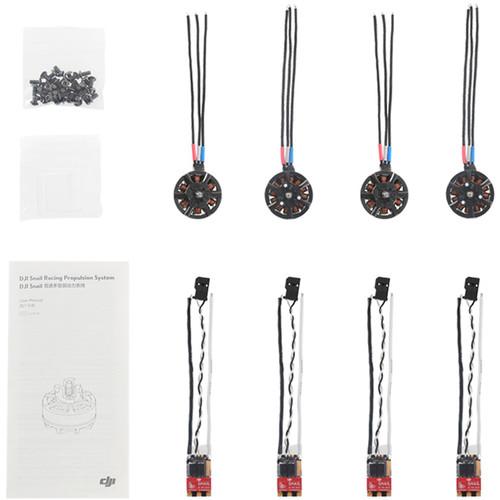

UPC: 190021283404 In the Box DJI Snail Racing Propulsion System 4 x 2305 Motor for Snail Racing Propulsion System fuvtqsaxfrfqdwwysrwrrwfbxxfyaqrf 4 x 430-R ESC for Snail Racing Propulsion System 4 x Heat-shrink Cover Screw Set Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Snail Racing Propulsion System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.EP.000132 Specs | | | Maximum Voltage | 17.4 V | | Maximum Current | Continuous: 30 A
Peak: 45 A | | Supported Throttle Signal Modes | Regular
OneShot125 | | Signal Frequency | With OneShot125: 1 kHz
Maximum with PWM: 500 Hz
Default with PWM: 16 kHz | | Supported Battery | 3S to 4S LiPo | | Weight | 0.1 oz / 2.8 g (without cables) | | | | Stator Size | 23 x 5 mm | | Motor Velocity Constant | 2400 rpm/V (KV) | | Weight | 1 oz / 27.8 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.7 x 3.5 x 2.1" |
