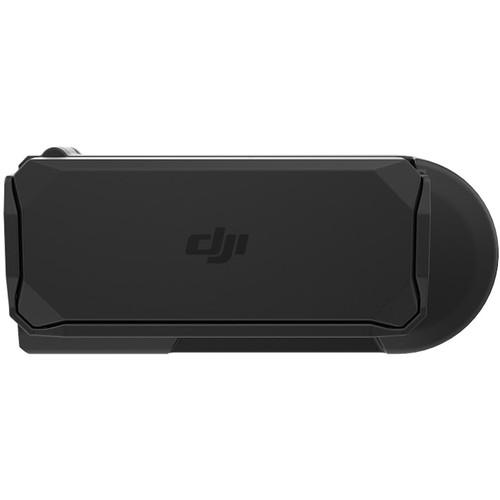

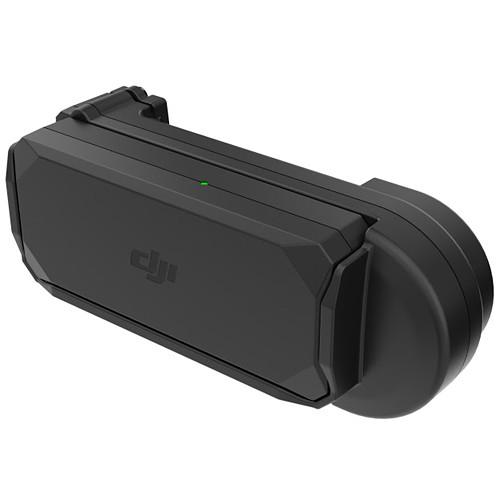

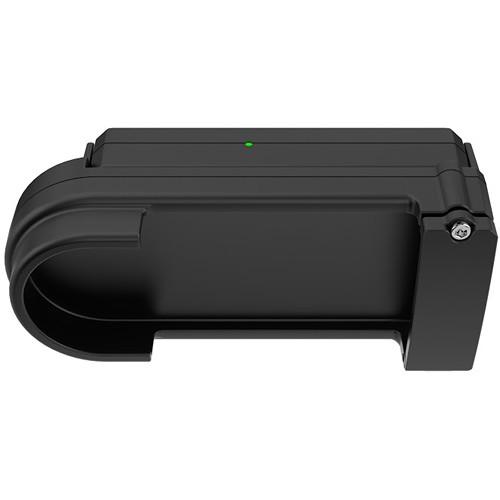

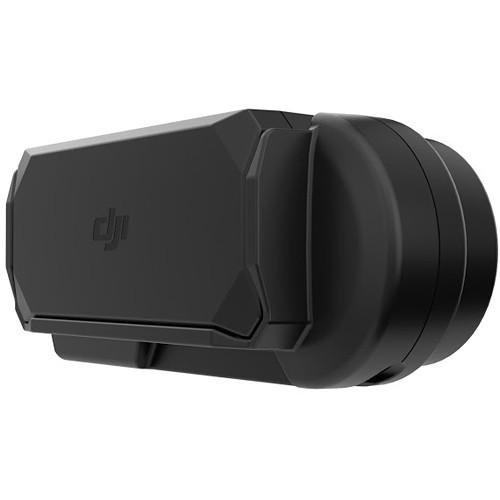

Product description The DJI SRW-60G is a short-range wireless video link, which can transmit real-time HD video or images for up to 32.8'. Containing both a transmitter and a receiver, it is suited not only for the Ronin series of handheld gimbals (cable available separately), but compatible with third-party HDMI devices as well.
Note: Not permitted for use with aerial devices. UPC: 190021010314 In the Box DJI SRW-60G for Short-Range Video Transmission Transmitter Receiver Power Cable for Transmitter Power Cable for Receiver 2 x USB Cable 4 x M3x5.5 Screw Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI SRW-60G for Short-Range Video Transmission in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.ZM.000550 Specs | | | Range | 32.8' / 10 m (unobstructed) | | Frequency | 59.4 to 63.56 GHz | | Transmit Power | Up to 28 dBm | | Receive Sensitivity | -72 dBm | | Latency | < 1 ms | | Antenna Gain | Transmitter: 7 dBi
Receiver: 18 dBi | | Antenna Type | Transmitter and Receiver:
Built-in antenna | | | | Transmitter | 1 x HDMI
1 x CAN-Bus Port
1 x Power Supply Port | | Receiver | 1 x HDMI
1 x CAN-Bus Port
1 x Power Supply Port | | | | Resolution | 480i/576i to 1080p at 60 Hz | | Operating Voltage | Transmitter and Receiver:
CAN Port: 7.4 to 12 V
USB Port: 5 V | | Maximum Power Consumption | Transmitter: 1.2 W
Receiver: 2.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | Transmitter: 3.1 x 1.3 x 0.6" / 78 x 33 x 16 mm
Receiver: 2.6 x 1.8 x 0.6" / 65 x 46 x 14 mm | | Weight | 1.6 oz / 46 g
1.7 oz / 47 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.6 x 4.9 x 1.5" |
