User Manual for DJI Standard 6010 Motor for E2000 Tuned Propulsion System Click to enlarge the picture
Contents of the user manual for the DJI Standard 6010 Motor for E2000
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Standard 6010 Motor for E2000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

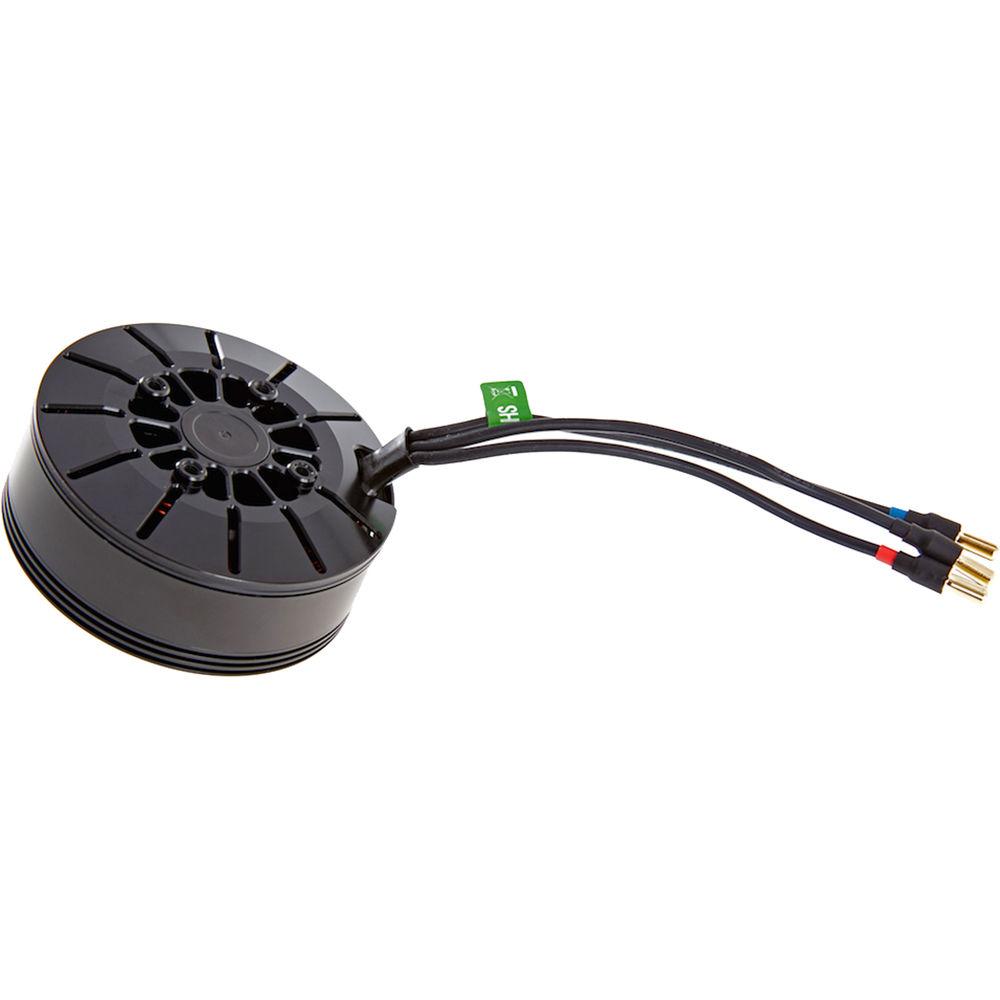

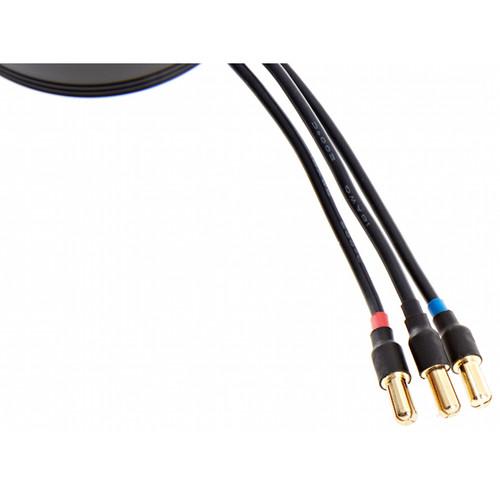

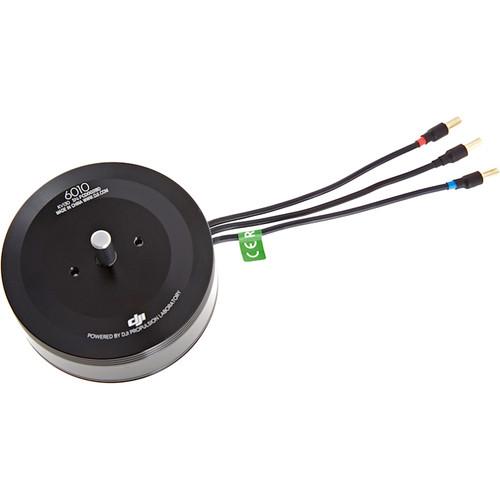

Product description The Standard 6010 Motor for E2000 Tuned Propulsion System from DJI helps give your multi-rotor the horsepower it needs to lift payloads weighing up to 5.5 lb per axis. The motor features a motor velocity constant of 130 Kv. It is designed to be used with ESCs and props for the E2000 Tuned Propulsion system. - Weather-resistant under IP56 rating
- Bearings are fully sealed to prevent fluids like rain, pesticide, and salt spray from entering and causing corrosion
- Surface coating applied to the stator helps improve motor's ability to withstand rusting
- Integrated centrifugal cooling system effectively cools the motor while keeping dust and micro particles out
UPC: 190021003996 In the Box DJI Standard 6010 Motor for E2000 Tuned Propulsion System Tags Screws Pack Reminder Cards Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Standard 6010 Motor for E2000 Tuned Propulsion System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.EP.000088 Specs | | | Motor Velocity Constant | Kv: 130 rpm/V | | Back Electromotive Force Constant | 0.0734 V-s/rad | | Mechanical Time Constant | 200 ms | | Motor Rotor Inertia | 529 kg-cm2 | | Total Rotor Inertia | Including Propeller: 1029 kg-cm2 | | Torque Constant | 0.076 N-m/A | | Line-to-Line Inductance | 0.224 mH | | Line-to-Line Resistance | 230 mΩ | | Thermal Constant | 600 s | | | | Stator Size | 60 x 10 mm | | Weight | 8.1 oz / 230 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.1 x 2.3 x 1.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
