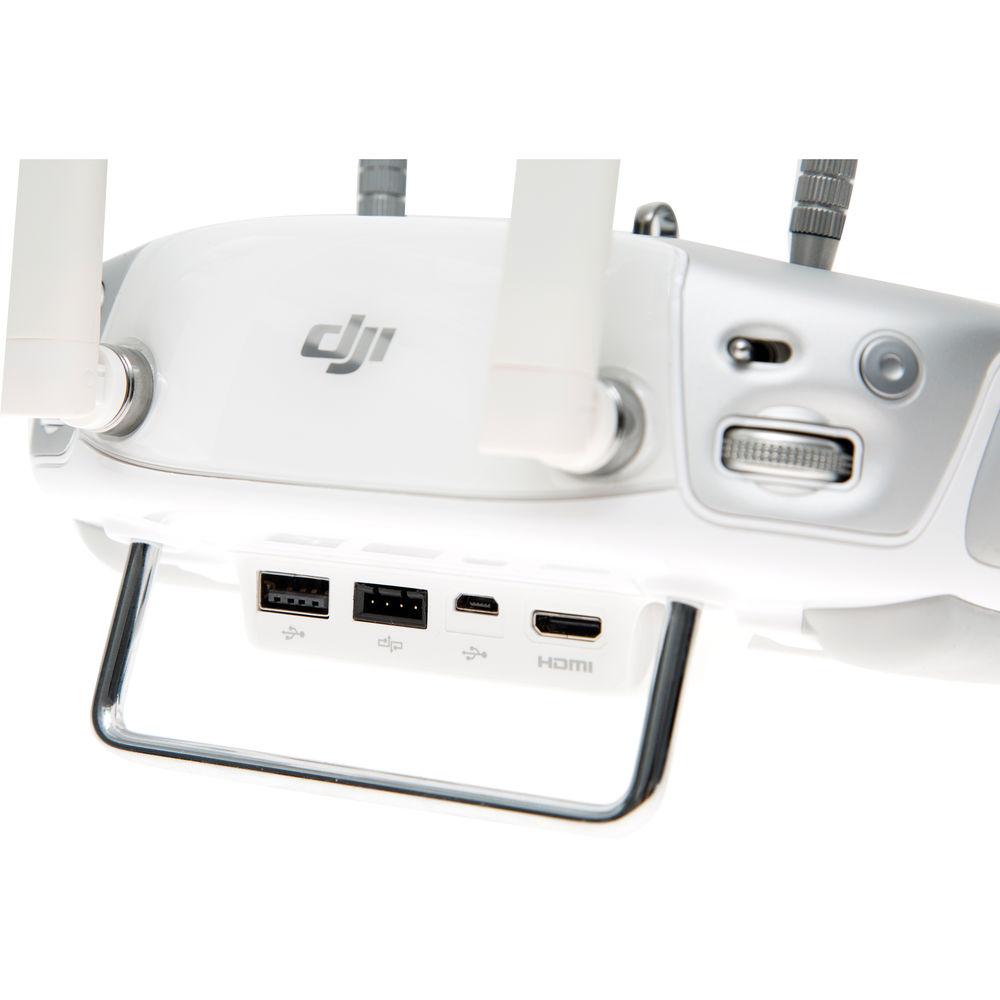

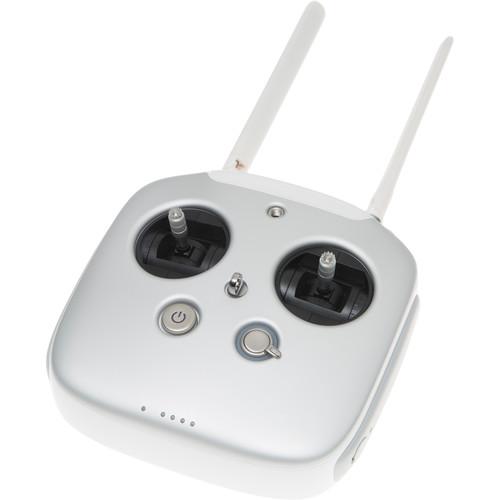

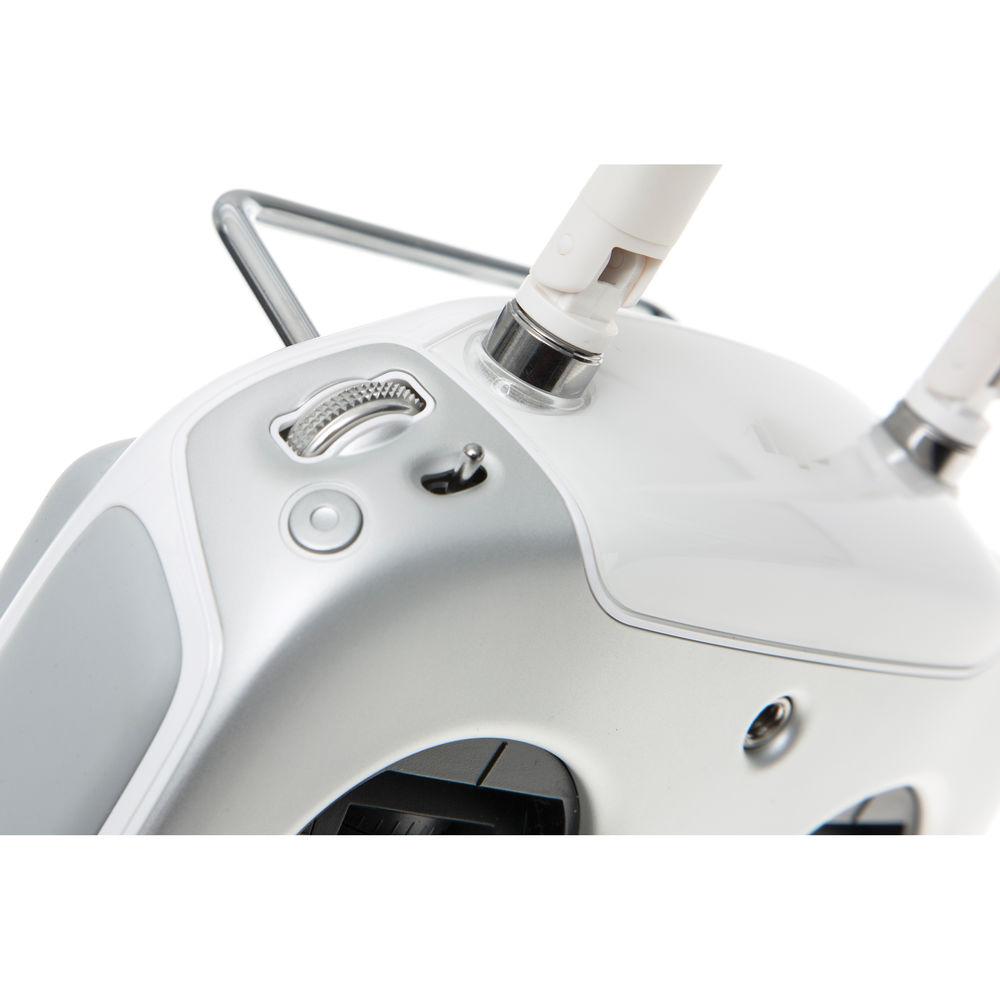

Product description The white DJI Transmitter for Inspire 1 Quadcopter is the handheld radio controller used to operate the aircraft as well as control the gimbal. You can even use two transmitters with one aircraft, thereby allowing one person to pilot so the second person can concentrate on operating the camera. It features a mini-HDMI (type C) port for connecting an FPV monitor or glasses, plus there is a USB type A port for connecting you mobile device when using the Inspire app.
The transmitter uses a 2.4 GHz band for the control signal, plus there is a 5.8 GHz radio allowing two controllers to be bound together for dual operator flying. In dual operator mode, the "master" transmitter is used by the pilot, while the "slave" transmitter is used by the camera operator to move the camera manually.
Note: The transmitter requires binding before it can be used with your quadcopter. Please refer to the manual for instructions. - Dedicated buttons for video and photo capture
In the Box DJI Transmitter for Inspire 1 Quadcopter (White) Tablet Holder User Manual PDF 16.7mbtqbdqwsbxxeuabzdbewbctyryevxrsaeuwsxuz Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Transmitter for Inspire 1 Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.PT.000301 Specs | Operating Frequency | Transmitter to Transmitter: 5.728 to 5.850 GHz
Transmitter to Aircraft: 2.400 to 2.483 GHz | | Range | Line-of-Sight: Up to 6561.7' / 2000 m | | Receive Sensitivity | 1% PER:-93 dBm | | EIRP | 10 dBm at 900 MHz; 8 dBm at 5.8 GHz; 20 dBm at 2.4 GHz | | Connectivity | 1 x USB type A female for mobile device
1 x Micro-USB for firmware updates
1 x Mini-HDMI (type C) for FPV glasses or a monitor
1 x CAN-Bus port for future accessories | | Dual User Capability | Host-and-slave connection | | Mobile Device Holder | Tablet or smartphone | | Output Power | 9 W | | Power Requirements | 1.2 A at 7.4 VDC | | Battery | 6S LiPo; 6000 mAh | | Charging Temperature | Less than 3 Months: -4 to 113°F / -20 to 45°C
More than Three Months: 72 to 82°F / 22 to 28°C | | Storage Temperature | < 3 Months: -4 to 113°F / -20 to 45°C
> 3 Months: 72 to 82°F / 22 to 28°C | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 8.661 x 7.244 x 4.173" |
