Product description

• DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm f/1.7 Lens Equip your DJI Inspire 1 with Micro Four Thirds imaging performance and the benefits of an interchangeable lens system with the Zenmuse X5 Camera and 3-Axis Gimbal with 15mm f/1.7 Lens. This 4K camera system features an integrated 3-axis brushless gimbal that provides stabilization and enables the camera to move independently of the aircraft. In addition to video, the camera can take 16-megapixel still photos with the option for burst and time-lapse modes.
  • 12.8 stops dynamic range for enhanced highlight and shadow detail
  • Records video and stills to micro-SDHC/SDXC cards
  • Single shot or take bursts for 3, 5, or 7 frames
  • Time-lapse mode captures photos at stepped intervals between 3 and 60 seconds
  UPC: 190021000681
• DJI Universal Mount for Osmo The Universal Mount for Osmo from DJI provides a cold shoe for standard on-camera accessories such as lights or microphones. It attaches to the handle via the same rosette as the mobile device holder. If you wish to use the mobile device holder and the Universal Mount at the same time the Straight Extension Arm (available separately) is required. It's compatible with the Osmo, Osmo+, Osmo Mobile, Osmo Pro, and Osmo Raw. UPC: 190021001787
• DJI Osmo Phone Holder The Osmo Phone Holder from DJI attaches to the side rosette on the Osmo handheld gimbal system. This enables you to use mount your smartphone and use it as a monitor to view a live image and adjust camera settings over Wi-Fi through the DJI GO app. The rosette attachment allows the mount to be rotated to achieve an optimal viewing angle. UPC: 190021001862
• DJI Carrying Case for Osmo Pro This is a waterproof and air-tight Carrying Case that holds an Osmo Pro and accessories. UPC: 190021015067
• DJI Osmo Quad Charging System (Without Adapter) When used together with DJI chargers, the Osmo Quad Charging System can recharge four Osmo Intelligent Batteries. It takes 100 minutes to fully charge four HB01-522365 batteries from empty or 120 minutes to fully charge four empty HB02-542465 batteries. Four indicators show the remaining power of each inserted battery. UPC: 190021010055
• DJI CrystalSky 5.5" High-Brightness Monitor Flying drones in their natural outdoor environment requires a bright display, like the DJI CrystalSky 5.5" High-Brightness Monitor for unhindered daylight viewing. The 1000 cd/m² bright touchscreen LCD screen is daylight viewable without requiring a hood. More than a monitor specifically designed for DJI products, the CrystalSky runs an Android OS and only comes loaded with the apps necessary for operating DJI devices. You won't find any spam applications to slow the device down. Plus, the hardware is optimized for decoding video transmitted by DJI devices, reducing lag and improving picture quality. Aside from the streamlined interface, the CrystalSky acts as a mobile device with all the necessary DJI apps pre-loaded. Note: The CrystalSky includes one Intelligent Battery and a two-bay charging dock that requires a separately available charger. Chargers from the Inspire (1/2) and Phantom (3/4) will work. 57W Osmo and Phantom chargers don't supply enough power to charge both the batteries and other devices simultaneoulsy. The Mavic Pro charger is not compatible.
  Smooth Video Monitoring
  • The CrystalSky monitor uses optimized video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, the video decoding abilities of other smart devices might be less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, unacceptably long latency, and more. The CrystalSky monitor's optimized decoder provides smooth, real-time video feedback from compatible drones with minimal latency.
  Dual microSD Card Recording
  • Load up microSD cards to expand the CrystalSky's storage. Video can be recorded in H.264 or H.265 formats. With the ability to play back and edit 4K recorded video inside the CrystalSky, you can quickly share high-quality edited footage. Video can also be played back through the onboard HDMI output.
  I/O and Network Connectivity
  • The CrystalSky monitor's HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB Type-A port.

    When connected to the Internet, the CrystalSky monitor gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronization, and more. File sizes are optimized as much as possible to minimize mobile data demands.

    Onboard micro-USB and USB Type-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.
  Compatibility
  • Inspire Series
    Mavic Pro
    Osmo Series (Osmo, Osmo+, Osmo Pro, Osmo RAW)
    Phantom Series (Phantom 3, Phantom 4)

    Note: In order to use this monitor with the Phantom controllers, a separately available mounting bracket is recommended.
  UPC: 190021290457

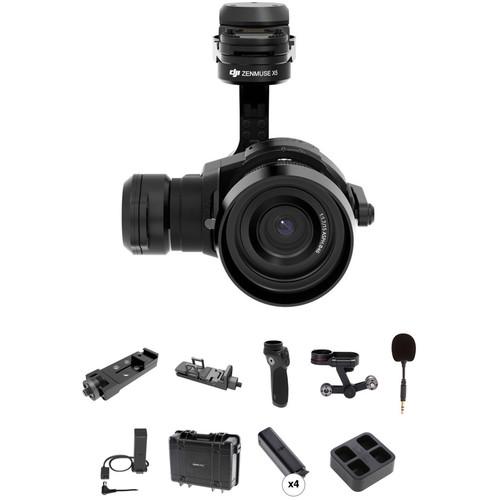

• Zenmuse X5 Camera and 3-Axis Gimbal with 15mm f/1.7 Lens bbqsycwxytveue
• Zenmuse X5 Camera and 3-Axis Gimbal
• MFT 15mm f/1.7 ASPH Prime Lens

• Universal Mount for Osmo

• Osmo Phone Holder

• Carrying Case for Osmo Pro

• Osmo Quad Charging System (Without Adapter)

• CrystalSky 5.5" High-Brightness Monitor

• CrystalSky Monitor Mounting Bracket for Osmo Pro & RAW

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Zenmuse X5 Camera and 3-Axis Gimbal with 15mm f/1.7 Lens

  Model	Name: Zenmuse X5
  Lens Mount	MFT (Micro Four Thirds)
  Photo Resolution	16 MP (4608 x 3456)
  Video Resolution	DCI 4K (4096 x 2160): 24p, 25p UHD 4K (3840 x 2160): 25p, 30p FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p
  Field of view (FOV)	15mm f1.7 ：72° (included) 12mm f2.0：84° (available separately)
  Photo Modes	Single shot Burst: 3, 5, or 7 frames Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias Time-Lapse: 5, 7, 10, 20, or 30 second intervals
  ISO Range	100 to 25600
  Shutter Speed	8 to 1/8000 second
  Video Bitrate	Up to 60 Mbps
  Supported File Types	Photo: JPEG, DNG RAW Video: MP4, MOV (MPEG-4/AVC/H.264F) File System: FAT32 / exFAT
  Recording Media	Class 10 / UHS-1 or better microSD (up to 64 GB)
  Power Consumption	Static: 8 W Peak: 13 W

  Model	Zenmuse X5
  Mount	Detachable
  Number of Axes	3-axis
  Control Angle Accuracy	±0.02°
  Control Range	Pitch: -90° to +30° Pan: ±320°
  Manual Control Speed	Pitch: Up to 120°/second Pan: Up to 180°/second

  Compatibility	DJI MFT 15mm f/1.7 ASPH (included) Panasonic Lumix 15mm f/1.7 (available separately) Olympus M. ED 12mm f/2.0 (available separately)
  Model	DJI MFT 15mm f/1.7 ASPH
  Mount	MFT (Micro Four Thirds)
  Focal Length	15 mm 35mm Equivalent: 30 mm
  Aperture Range	f/1.7 to f/16
  Focus Range	0.7' (0.2 m) to ∞
  Field of View	72°
  Elements	9 elements in 7 groups (3 aspherical elements)
  Aperture	7 diaphragm blades / circular aperture diaphragm
  Dimensions	Maximum Diameter: 2.3" / 57.5 mm Length: 1.4" / 36 mm
  Weight	4.1 oz / 115 g

  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions (H x W x D)	4.7 x 5.3 x 5.5" / 120 x 135 x 140 mm
  Weight	With Standard Lens, Balancing Ring, Lens Hood, and microSD card: 1.2 lb / 526 g

  Box Dimensions (LxWxH)	7.4 x 5.9 x 5.2"

• DJI Universal Mount for Osmo

  Box Dimensions (LxWxH)	4.2 x 2.1 x 0.9"

• DJI Osmo Phone Holder

  Box Dimensions (LxWxH)	5.0 x 2.2 x 1.7"

• DJI Carrying Case for Osmo Pro

  Box Dimensions (LxWxH)	18.6 x 15.6 x 8.4"

• DJI Osmo Quad Charging System (Without Adapter)

  Box Dimensions (LxWxH)	4.1 x 3.7 x 1.9"

• DJI CrystalSky 5.5" High-Brightness Monitor

  Screen Size	5.5" / 14 cm
  Resolution	1920 x 1080
  Brightness	1000 cd/m²
  Recording Formats	H.264 (up to 30 fps), H.265 (up to 60 fps)
  Recording Media	2 x microSD cards
  I/O	1 x HDMI Type-A output 1 x USB Type-A 1 x micro-USB Type-B 1 x 3.5 mm headphone output 1 x USB Type-C
  Connectivity	Wi-Fi: 2.4/5.2/5.8 GHz, 802.11a/b/g/n 4G: Supported via USB dongle
  Operating system	Android
  Memory	ROM: 32 GB RAM: 4 GB
  GPS	GPS, GLONASS
  Sensors	Gyroscope, brightness, compass
  Battery	Internal: 3.7 VDC, 980 mAh External: 7.6 VDC, 4920 mAh
  Operating Time	5-6 hours on battery
  Operating Temperature	-4 to 104°F / -20 to 40°C
  Dimensions	6 x 3.3 x 0.7" / 15.4 x 8.5 x 1.9 cm

  Box Dimensions (LxWxH)	8.7 x 6.3 x 3.3"

• DJI CrystalSky Monitor Mounting Bracket for Osmo Pro & RAW

  Box Dimensions (LxWxH)	4.8 x 3.5 x 2.9"
