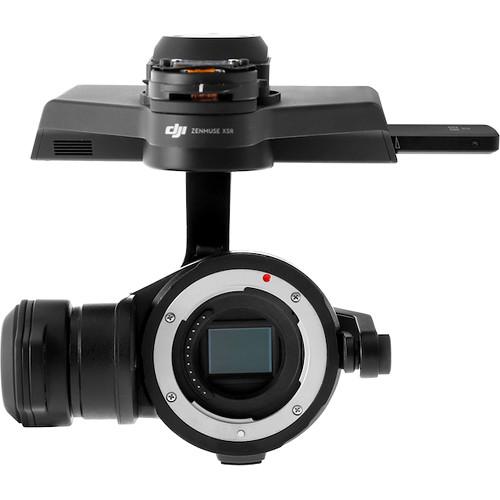

User Manual for DJI Zenmuse X5R RAW Camera and 3-Axis Gimbal Click to enlarge the picture
Contents of the user manual for the DJI Zenmuse X5R RAW Camera and
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Zenmuse X5R RAW Camera and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Equip your DJI Inspire 1 with Micro Four Thirds imaging performance and the benefits of an interchangeable lens system with the Zenmuse X5R RAW Camera and 3-Axis Gimbal. This 4K camera system features an integrated 3-axis brushless gimbal that provides stabilization and enables the camera to move independently of the aircraft. In addition to video, the camera can take 16-megapixel still photos with the option for burst and time-lapse modes. - 12.8 stops dynamic range for enhanced highlight and shadow detail
- H.264 and CinemaDNG RAW video recording
- Records video and stills to microSDHC/SDXC cards or SSDs. A 512GB SSD is included
- Single shot or take bursts for 3, 5, or 7 frames
- Time-lapse mode captures photos at stepped intervals between 3 and 60 seconds
- Program, Aperture Priority, Shutter Priority, and Manual exposure modes
UPC: 190021004993 In the Box DJI Zenmuse X5R RAW Camera and 3-Axis Gimbal 512GB SSD for Zenmuse X5R Camera yfcrdedzcxcryquarezwabfwcybw Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Zenmuse X5R RAW Camera and 3-Axis Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.BX.000133 Specs | | | Model | Name: Zenmuse X5R | | Lens Mount | MFT (Micro Four Thirds) | | Photo Resolution | 16 MP (4608 x 3456) | | Video Resolution | DCI 4K (4096 x 2160): 24p, 25p
UHD 4K (3840 x 2160): 25p, 30p
FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p | | Field of view (FOV) | 15mm f1.7 ：72° (available separately)
12mm f2.0：84° (available separately) | | Photo Modes | Single shot
Burst: 3, 5, or 7 frames
Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias
Time-Lapse: 5, 7, 10, 20, or 30 second intervals | | ISO Range | 100 to 25600 | | Shutter Speed | 8 to 1/8000 second | | Video Bitrate | Up to 2.4 Gbps (1.7 Gbps average) | | Supported File Types | Photo: JPEG, DNG RAW
Video: MP4, MOV (MPEG-4/AVC/H.264F)
RAW Video: CinemaDNG RAW
File System: FAT32 / exFAT | | Recording Media | Class 10 / UHS-1 or better microSD (up to 64 GB)
512 GB SSD (for RAW video recording) | | Power Consumption | Static: 19.5 W
Peak: 25 W | | | | Model | Zenmuse X5R | | Mount | Detachable | | Number of Axes | 3-axis | | Control Angle Accuracy | ±0.02° | | Control Range | Pitch: -90° to +30°
Pan: ±320° | | Manual Control Speed | Pitch: Up to 120°/second
Pan: Up to 180°/second | | | | Compatibility | DJI MFT 15mm f/1.7 ASPH (available separately)
Panasonic Lumix 15mm f/1.7 (available separately)
Olympus M. ED 12mm f/2.0 (available separately) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (H x W x D) | 5.4 x 4.9 x 5.2" / 136 x 125 x 131 mm | | Weight | With Standard Lens, Balancing Ring, Lens Hood, and microSD card: 1.3 lb / 583 g | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 7.8 x 6.4 x 5.6" |
