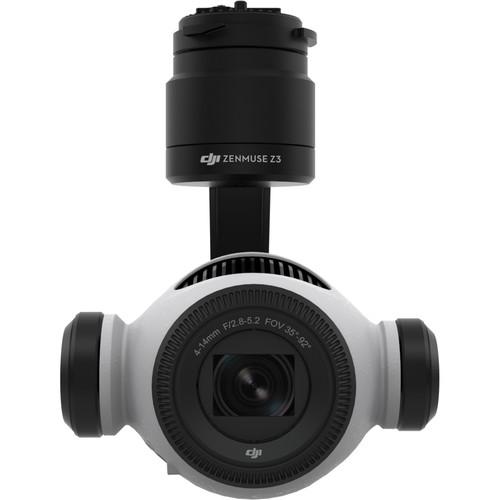

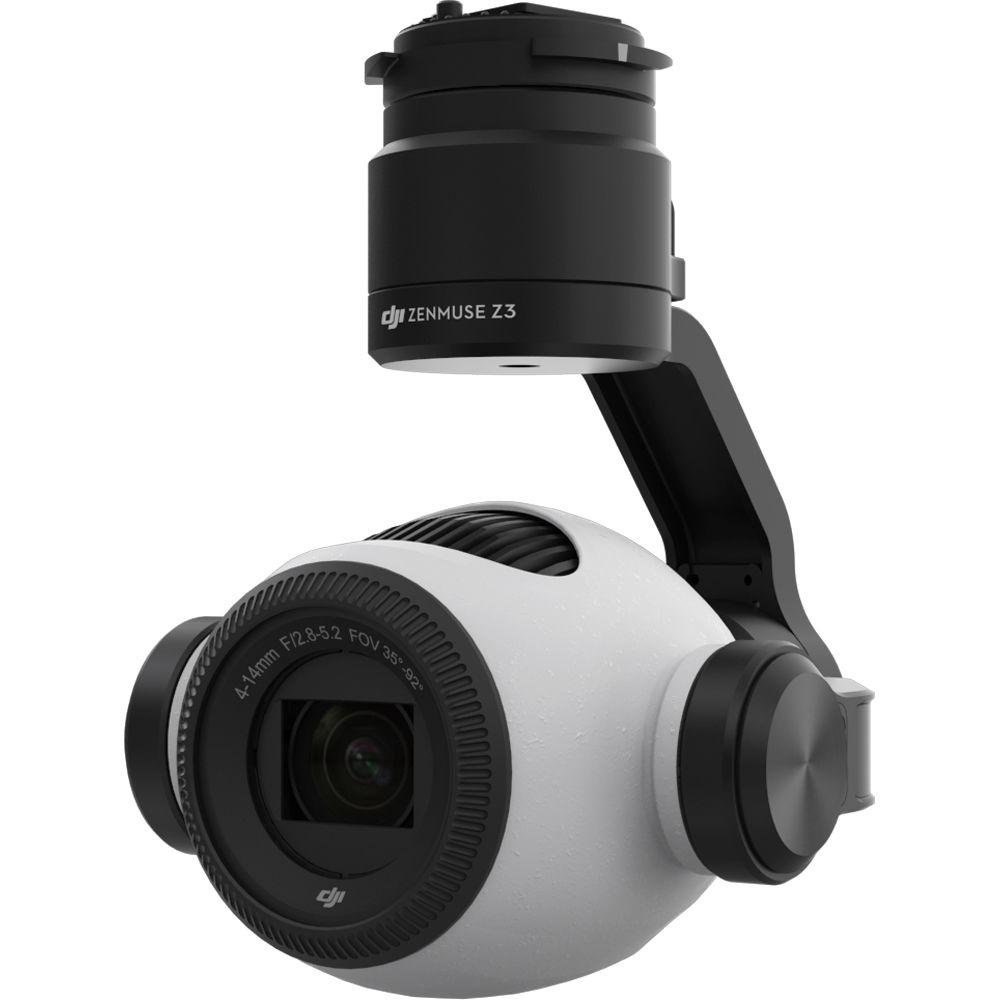

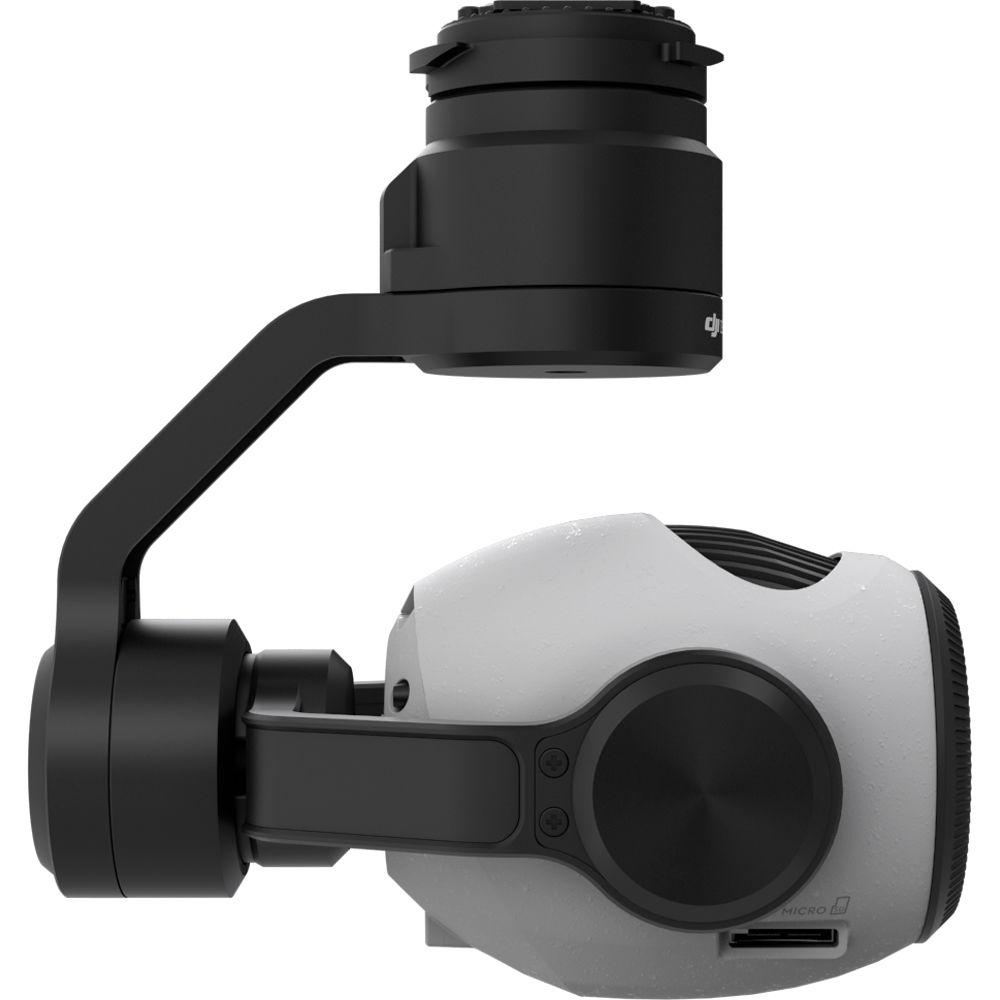

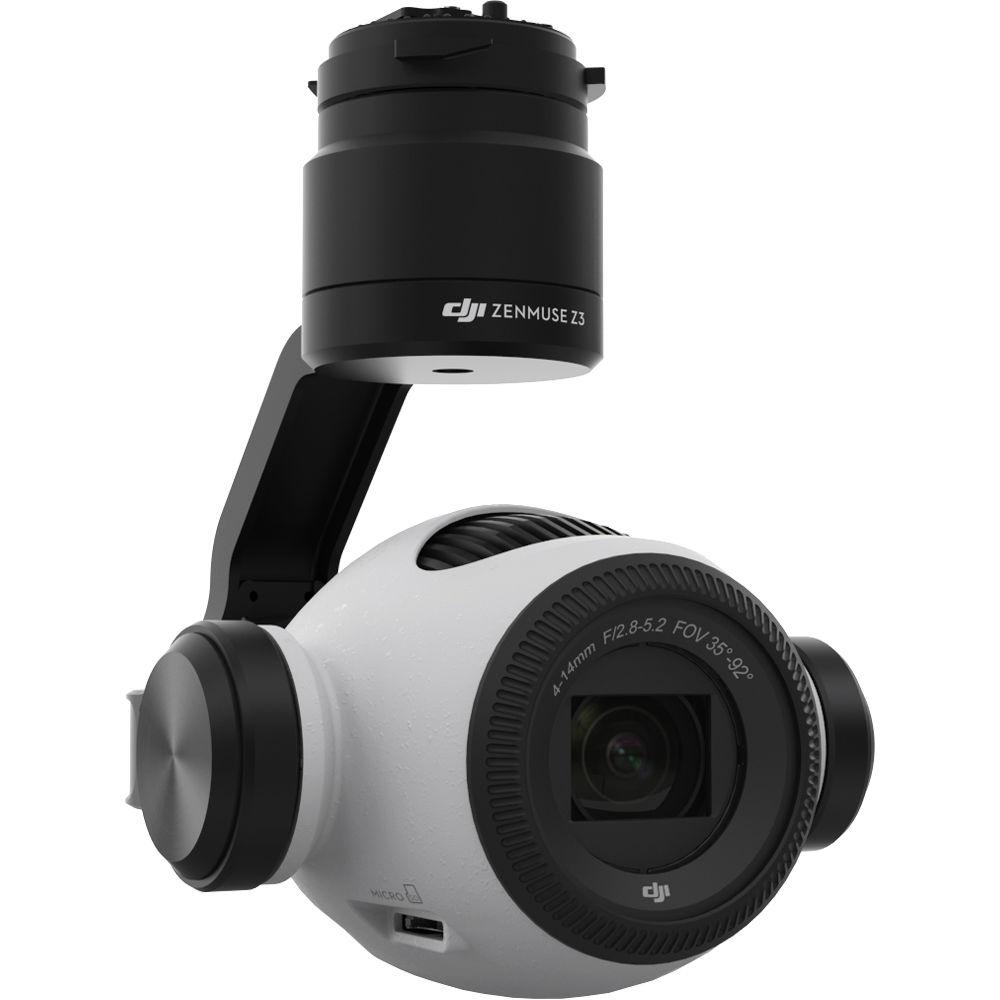

User Manual for DJI Zenmuse Z3 4K Gimbal Camera Click to enlarge the picture
Contents of the user manual for the DJI Zenmuse Z3 4K Gimbal Camera
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Zenmuse Z3 4K Gimbal Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description New DJI/Hasselblad Aerial Imaging Solution; Zenmuse Z3 Gimbal Camera Read More Thanks to a 3.5x optical zoom, you'll be able to capture close-ups from the air with the Zenmuse Z3 Gimbal Camera from DJI. The camera features 4K video and 12MP photo capability for crisp imagery in motion or stills and an FOV range of 92° to 35°. It is compatible with DJI aircraft, including the DJI Inspire 1, Matrice 100, or Matrice 600. When connected, it integrates with the aircraft's Lightbridge system for live HD monitoring as well as control via the GO app or dedicated controls on the Remote Controller, with a range of up to 3.1 miles.
Note: For use on compatible DJI multi-rotor aircraft only. Not compatible with Osmo handheld device. - 4K Camera
- The camera shoots 4K video at 24p and 30p, and can shoot HD video frame rates from 24p to 60p. It features a 1/2.3" CMOS sensor with a 3.5x optical (7x digital) zoom lens. This field of view works out to about 22 to 77mm in 35mm equivalent
- Real-Time Zoom View
- When shooting at the highest possible resolution – i.e. 4K video or 12 MP photos – optical zoom can be used, and the zoomed image is instantly visible in the DJI GO live feed. If shooting in 1080p, lossless zoom allows the full 7× of zoom without sacrificing full-HD image quality
- 3-Axis Brushless Motor Gimbal
- The camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter
- Rapid Setup
- Flying with the Zenmuse Z3 is as simple as attaching it to the DJI Inspire 1, Matrice 100, or Matrice 600. Once connected, it works seamlessly with the integrated DJI Lightbridge and Lightbridge 2 found on these platforms to provide 3.1 miles of HD transmission range
- DJI GO Mobile App
- DJI's GO app is tightly integrated with the Z3, acting as both a live feed to see the camera's image and the primary control system for the camera. It can be used to change camera settings, swipe to zoom in and out, capture photo or video, and activate Intelligent Flight Modes. Photo and video capture as well as zoom can also be controlled through dedicated controls on the aircraft's Remote Controller
UPC: 190021014428 Manual PDF 1.7mbrsqdewbsuyudwfbdxsfdwcycucxb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Zenmuse Z3 4K Gimbal Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.ZM.000424 Specs | | | Sensor | Sony EXMOR 1/2.3" CMOS | | Resolution | 12.0 MP | | Lens | Optical Zoom: 3.5x
Focal Length: 22 to 77 mm equivalent
Aperture: f/2.8 (wide) to f/5.2 (tele)
FOV: 92° (wide) to 35° (tele) | | Video Recording | UHD (4K):
4096 x 2160: 24p, 25p
3840 x 2160: 24p, 25p, 30p
2.7K:
2704 x 1520: 24p, 25p, 30p
FHD (1080p):
1920 x 1080: 24p, 25p, 30p, 48p, 50p, 60p
Maximum Bitrate: 60 Mb/s | | File Format | Photo: JPEG, DNG
Video: MP4 in a .MOV wrapper (MPEG-4 AVC/H.264) | | Recording Media | Type: microSD/SDHC/SDXC up to 64 GB
Speed: Class 10 / UHS-1 or faster
Format: FAT32/exFAT | | Photography Modes | Single shot
Burst: 3, 5, 7 frames per second (AEB: 3/5 frames per second; 0.7 EV bias)
Time-lapse | | Exposure Modes | Auto, Manual, Shutter | | Exposure Compensation | ±3.0 (1/3 increments) | | Metering Modes | Center-weighted metering
Average metering
Spot metering (area option 12 x 8) | | AE Lock | Supported | | Shutter Speeds | 8 to 1/8000 sec | | White Balance | Auto
Sunny
Cloudy
Incandescent
Neon
Custom (2000 to 10,000K) | | ISO Range | 100 to 3200 (video)
100 to 1600 (photo) | | Video Effects | Captions
Anti-Flicker (Auto, 50 Hz, 60 Hz) | | Signal System | PAL/NTSC selectable | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | | | Model | Zenmuse X3 | | Number of Axes | 3 | | Control Accuracy | ±0.03° | | Maximum Controlled Rotation Speed | 120°/s | | Controlled Rotation Range | Tilt: -90° to +30°
Pan: ±320°
Roll: ±15° | | Mechanical Range | Tilt: -140° to +50°
Pan: ±330°
Roll: +90° to -50° | | Angular Vibration Range | ±0.02° | | Mounting | Detachable | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 7.8 x 6.3 x 5.6" |
