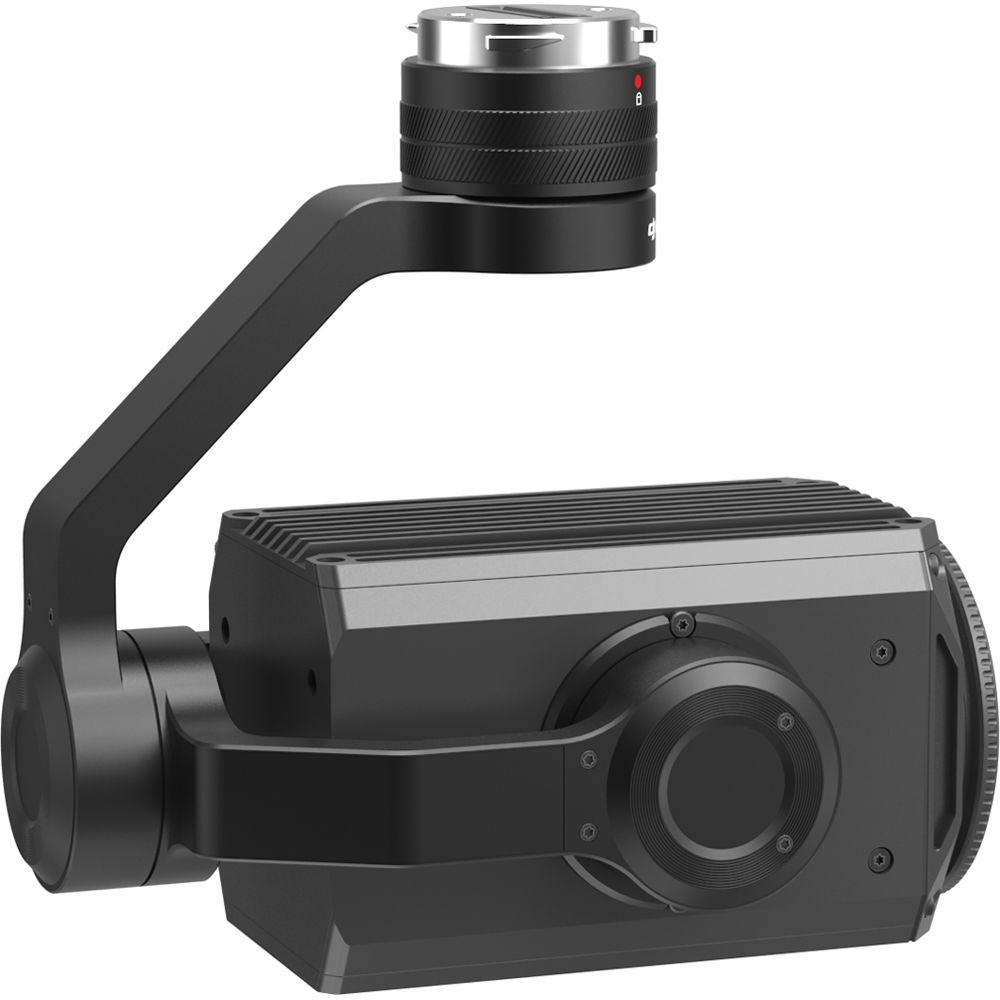

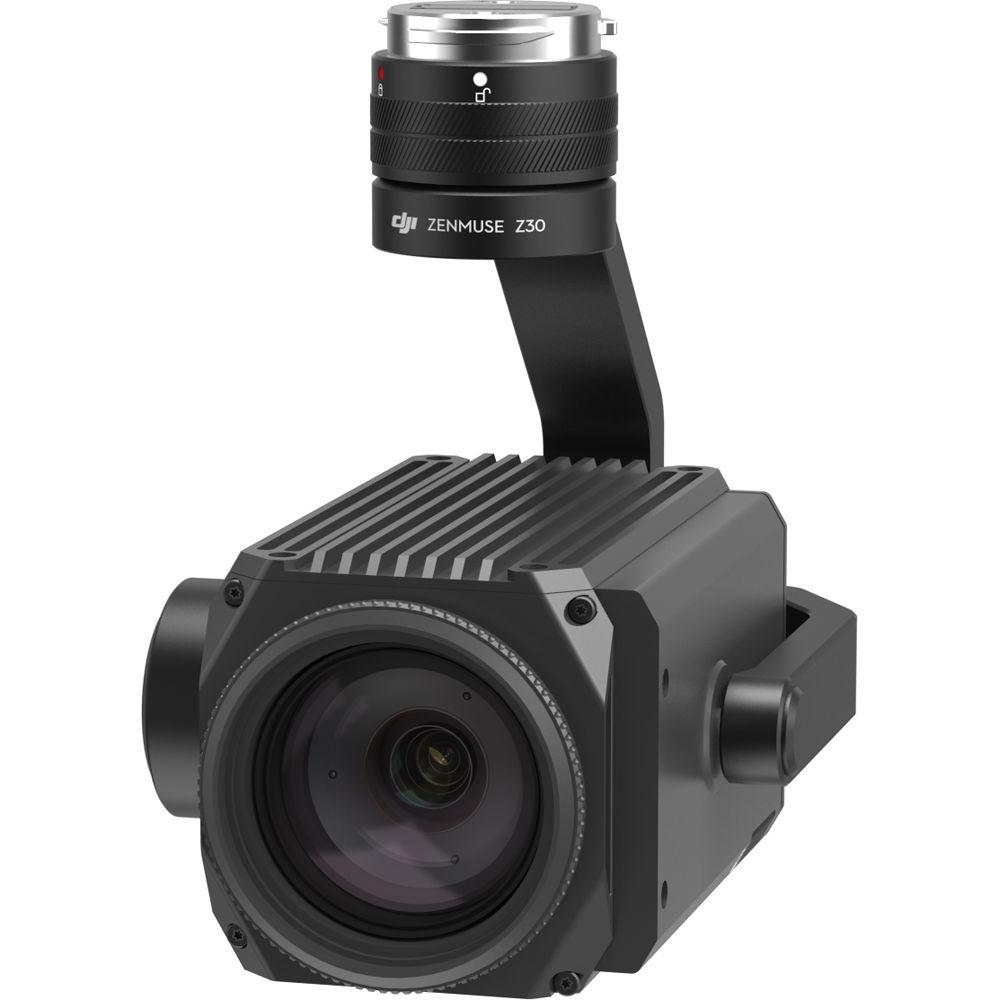

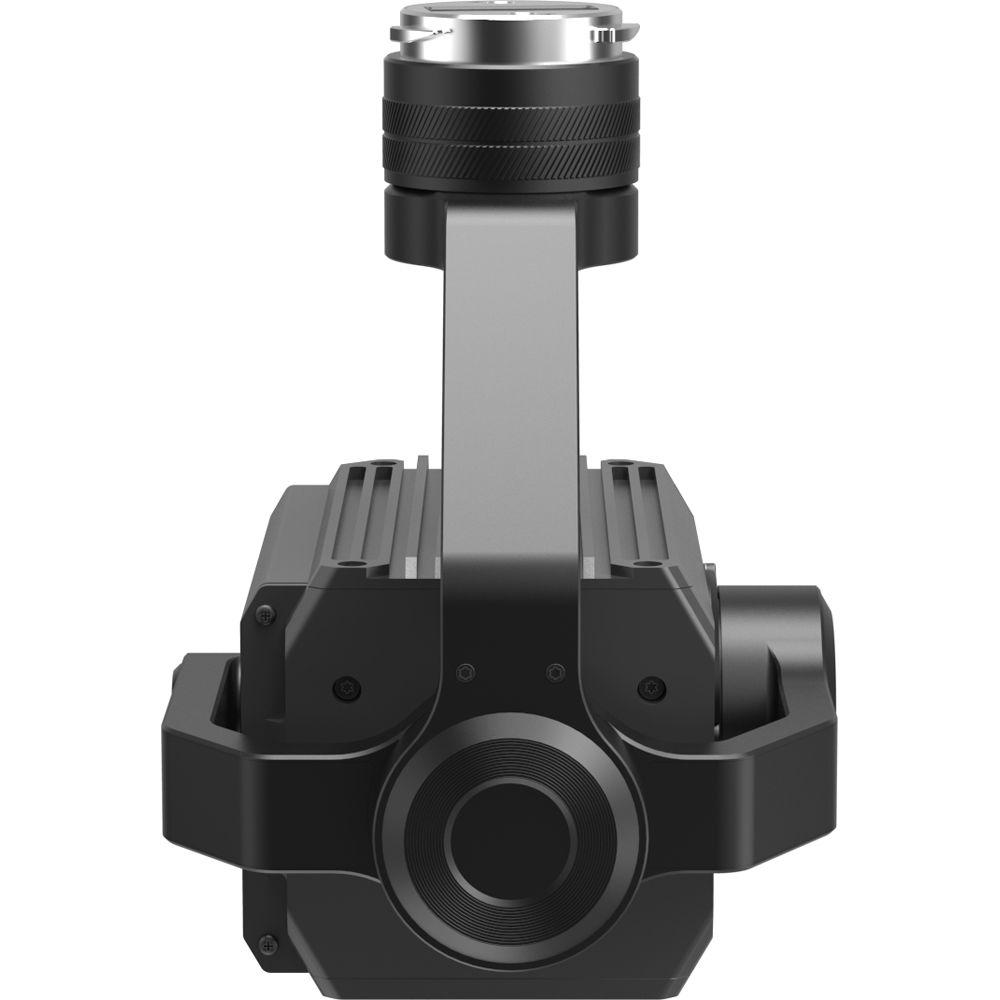

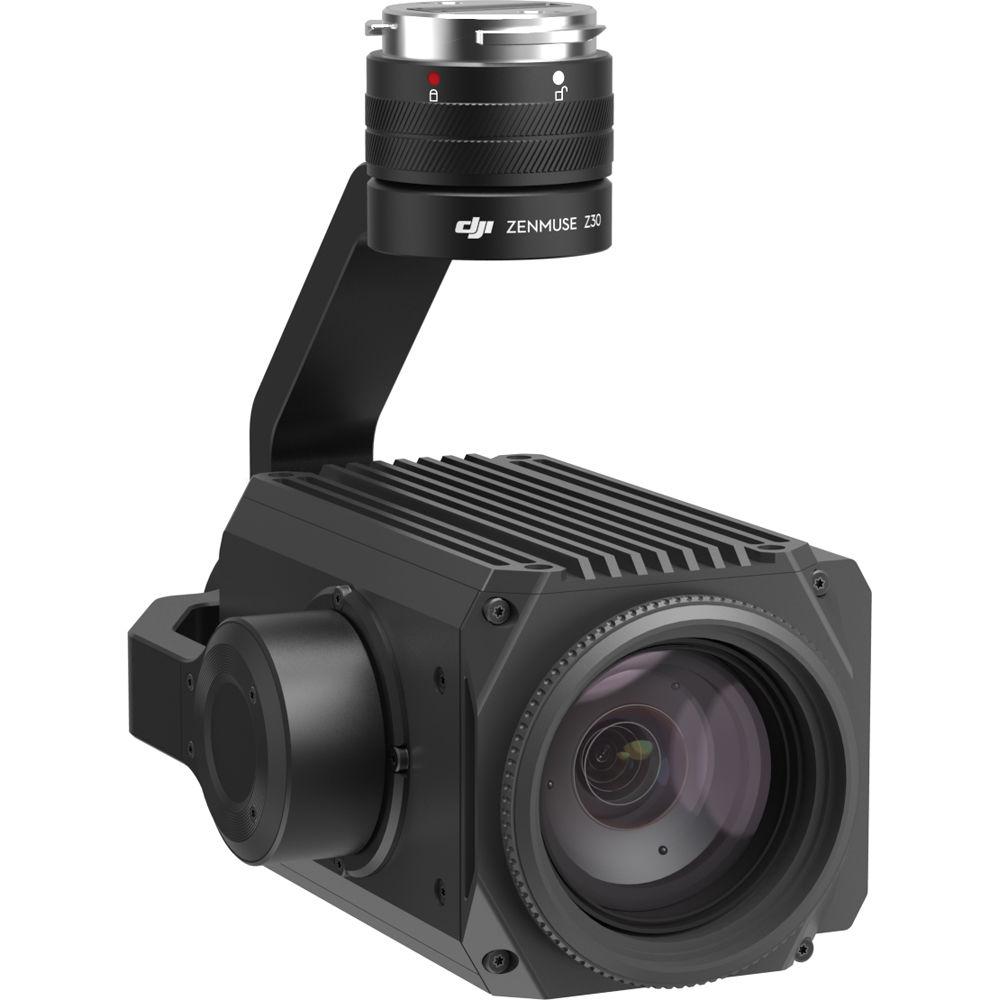

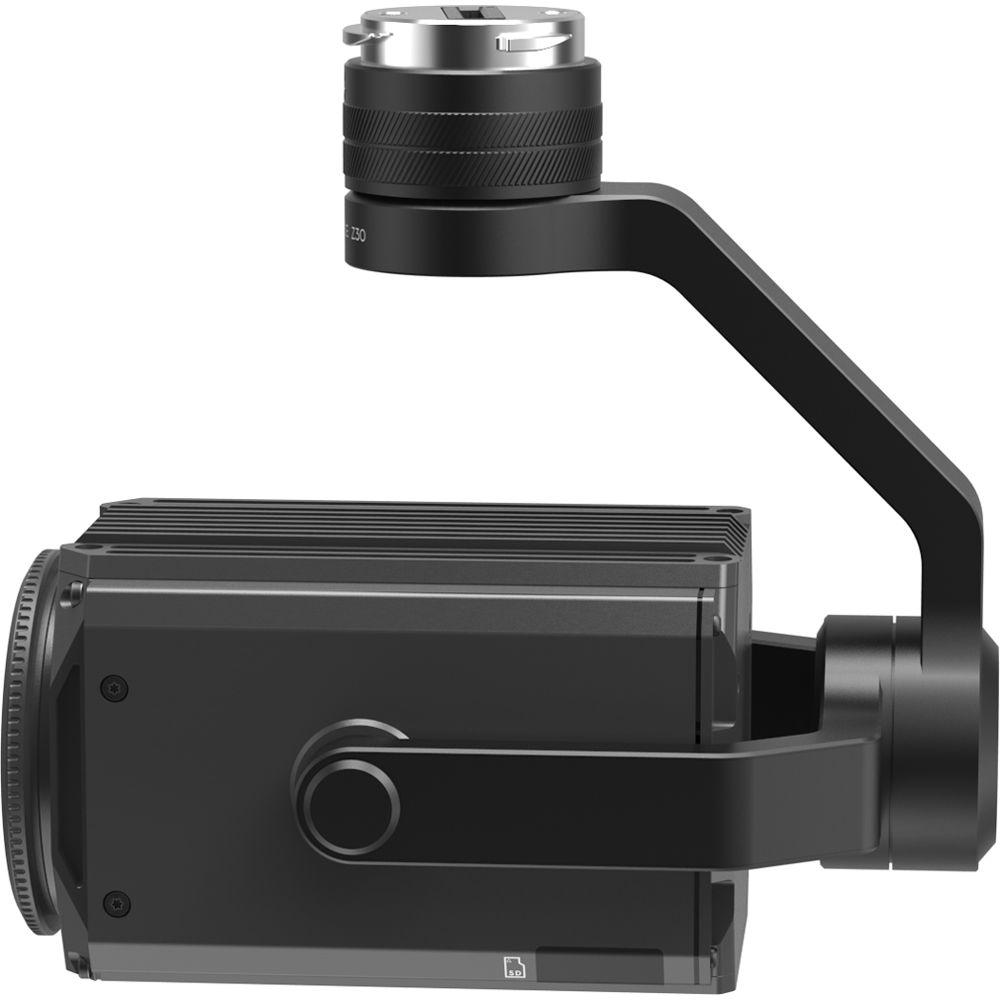

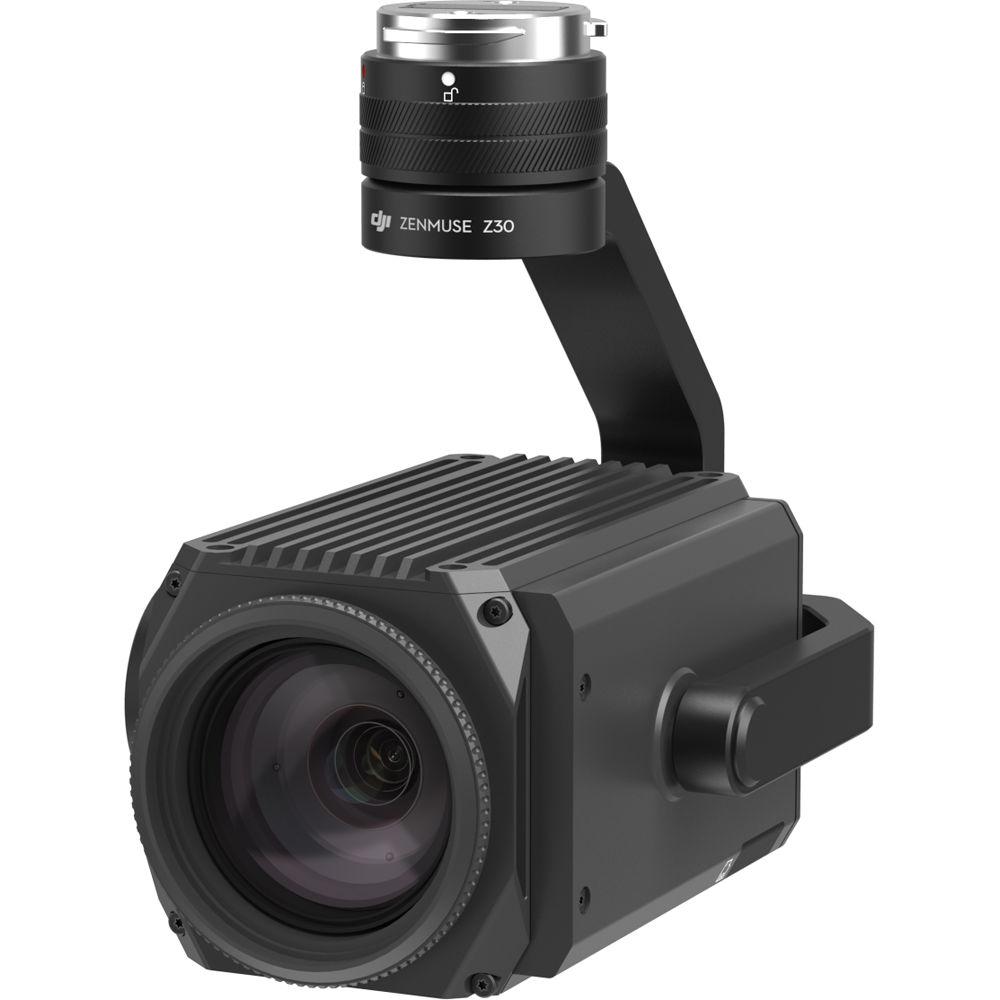

User Manual for DJI Zenmuse Z30 Gimbal Camera for Matrice Drones Click to enlarge the picture
Contents of the user manual for the DJI Zenmuse Z30 Gimbal Camera for
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Zenmuse Z30 Gimbal Camera for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description With the Zenmuse Z30 Gimbal Camera for Matrice Drones from DJI attached to your Matrice drone, you gain the ability to hone in on distant objects with a whopping 30x optical zoom. With a digital zoom of 6x, you can max out your zooming capabilities with a total magnification of up to 180x. With this kid of ability on an enterprise-level drone, you can inspect infrastructure or keep tabs on emergency situations while at a safe distance. UPC: 190021284883 In the Box DJI Zenmuse Z30 Gimbal Camera for Matrice Drones Limited 6-Month Warranty User Manual PDF 2.1mbxxyrtvxzdvsz Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Zenmuse Z30 Gimbal Camera for Matrice Drones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Zenmuse Z30 Specs | | | Sensor | 1/2.8" CMOS
2.13 MP (Effective Pixels) | | Zoom | 30x Optical
6x Digital | | F-Stop | f/1.6 (Wide) to f/4.7 (Tele) | | Zoom Movement Speed | 4.6 Seconds (Optical Wide to Optical Tele)
6.4 Seconds (Optical Wide to Digital Tele)
1.8 Seconds (Digital Wide to Digital Tele) | | Focus Speed | 1.1 Seconds (Infinity to Near) | | FOV | 63.7° (Wide) to 2.3° (Tele) | | Minimum Working Distance | 0.4 x 47.2" / 1.0 x 120.0 cm | | Photo Formats | JPEG | | Video Formats | MOV and MP4 | | Modes of Operation | Capture, Record, and Playback | | Photography Modes | Single Shot
Burst Shooting
3/5 Frames
Interval (2, 3, 4, 7, 10, 15, 20, and 30 Seconds) | | Exposure Modes | Auto, Manual, Shutter Priority, and Aperture Priority | | Exposure Compensation | ±2.3 (1/3 Increments) | | Metering Modes | Center-Weighted Metering
Spot Metering (Area Option 12x8) | | AE Lock | Yes | | Electronic Shutter Speed | 1/30 to 1/6000 Seconds | | White Balance | Auto, Sunny, Cloudy, Incandescent, and Custom (2000 to 10,000K) | | Defog | Yes | | Anti-Flicker | 50 and 60 Hz | | SD Card Requirements | microSD (SD/SDHC/SDXC)
64 GB Maximum Capacity (Class 10 or UHS-1) | | File Systems | FAT32 (≤ 32 GB)
exFAT (> 32 GB) | | Other | Video Captions: Yes
TapZoom: Yes
TapZoom Range: 1-5
One Key to 1x Image: Yes
PAL/NTSC: Yes | | | | Angular Vibration Range | ±0.01° | | Mount | Detachable | | Controllable Range | Pitch: +40 to -90°
Yaw: ±320° | | Mechanical Range | Pitch: +50 to -140°
Yaw: ±330°
Roll: +90 to -50° | | Maximum Control Speed | Pitch: 180°/sec
Yaw: 180°/sec | | | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Non-Operating Temperature Range | -4 to 140°F / -20 to 60°C | | | | Dimensions | 6.0 x 5.4 x 2.4" / 15.2 x 13.7 x 6.1 cm | | Weight | 19.6 oz / 556.0 g | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 9.2 x 8.0 x 6.7" |
