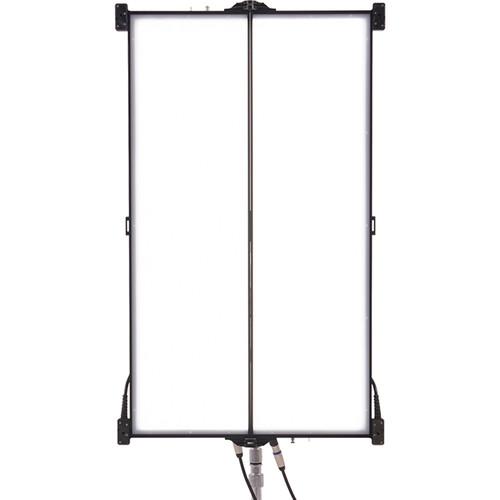

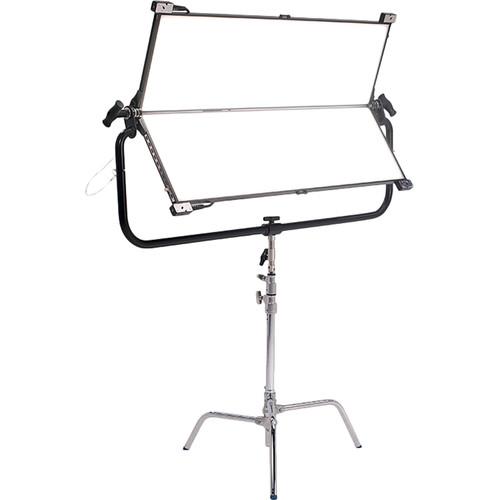

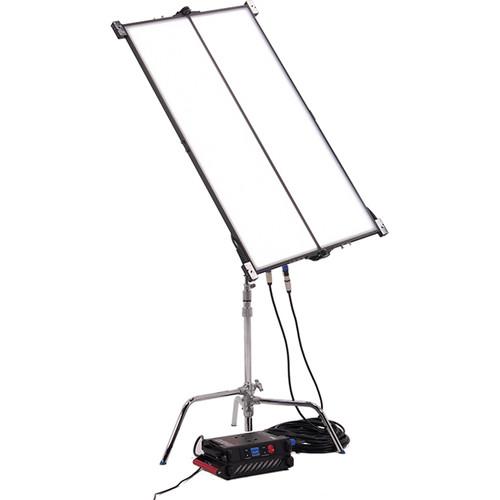

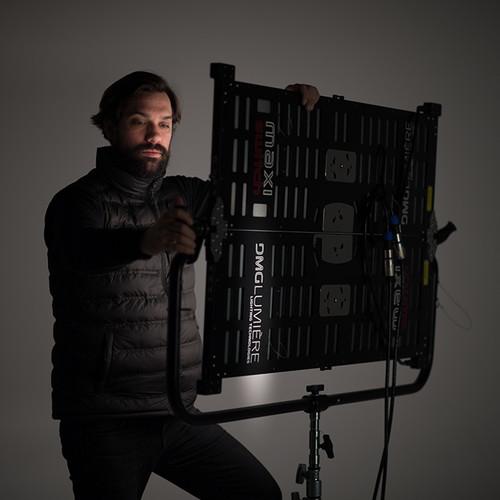

Product description The sturdy aluminum MAXI Switch Bi-Color Folding LED Panel from DMG Lumiere is a 48 x 30 x 0.75" light source with a unique design that allows it fold to 15" in width for storage and transport. The MAXI employs 8640 SMD2835 LEDs to obtain a high CRI/TLCI rating of 96/94 @ 5600K, indicating an accurate rendition of color. Color can be varied from 3000 to 5600K to seamlessly blend into any lighting scenario while the light can be dimmed from 0-100% at any frame rate without flicker. Both color and dimming are controlled by the separately purchased MAXI Driver which mounts to the back of the panel. The Driver offers wired and wireless DMX control via a Lumen Radio chip as well as Wi-Fi capability. It also accepts pro batteries as well as the optional 100 - 240 VAC MAXI Power Supply. - Photometrics
- At 3200K
1730 lux/161 fc @ 9.8' (3.0 m)
654 lux/61 fc @ 16.4' (5.0 m)
370 lux/34 fc @ 23' (7.0 m)
At 5600K
1880 lux/175 fc @ 9.8' (3.0 m)
700 lux/65 fc @ 16.4' (5.0 m)
399 lux/37 fc @ 23' (7.0 m) In the Box DMG Lumiere MAXI Switch Bi-Color Folding LED Panel MAXI Switch Yoke bubtfqxerafbyccetqbcvquwwxrxzxuc Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DMG Lumiere MAXI Switch Bi-Color Folding LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDMG Lumiere Maxi Switch Specs | Light Source | 8640 SMD2835 LEDs | | Max Power Consumption | 520 W | | Voltage Input | Light Panel: 24 VDC, 22 A | | AC Power | 100 to 240 VAC, 50/60 Hz | | Battery Connector | Neutrik SpeakOn
Chogori Cable
Optional 3-pin XLR | | Battery Voltage | Battery: 24 to 30 VDC | | Color Temperature | 3000 to 5600K | | CRI | 94 at 3200K
96 at 5600K | | TLCI | TLCI-II
91 at 3200K
94 at 5600K | | Dimming | Flicker-free at any fps, 0 to 100% (2 speeds) | | Cooling | Silent, passive cooling | | Diffuser | Frosted acrylic diffuser | | Mounting | Yoke with combo 1-1/8 (28 mm) pin and 5/8" (16 mm) receiver | | Housing Material | Black anodized aluminum and stainless steel screws | | IP Rating | IP20 | | Certifications | CE, CSA, RoHS | | Dimensions | 48 x 30 x 0.75" (125 x 75.4 x 2.3 cm) | | Weight | 27 lb (12.5 kg) |
