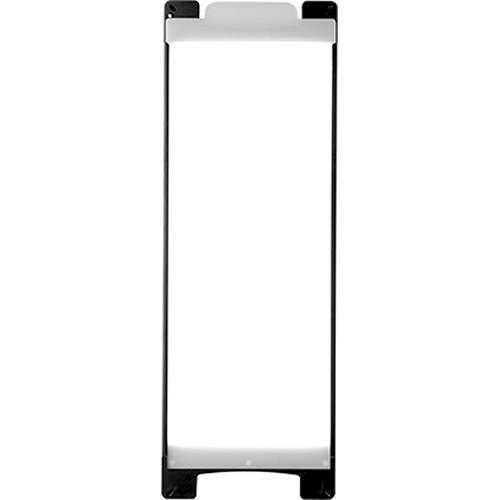

Product description Offering power options and expansive color control choices, the MINI MIX LED Panel from DNG LUMIERE is a lightweight light source measuring 23 x 8" and just 1.25" thick, allowing it to go where traditional fixtures can't. The fact that it barely generates any heat makes it an even more valuable tool in tight situations.DMG used a proprietary blend of red, lime, green, blue, amber, and white LEDs backed by a Color Mode plus hue and saturation adjustment to create the colors needed for your requirements. There is also full +/- green control, as well as Rosco's commonly used gel presets. The wide color latitude provides access to color temperatures from 1700 to 10,000K with a CRI of 95 and a TLCI of 90. Light intensity is also variable from 0 to 100%, and while you can make these adjustments locally on the fixture, you can also make them wirelessly via DMG's myMIX phone app. The app allows you to wirelessly mix your color, select a color and load it into your light, name it, save it to your library, and share colors with others.This panel does not come with a power source. Choose between an optional MINI controller for DMX and AC or a battery plate for external V-mount or Gold Mount batteries. - Improve Your Workflow with myMIX Smartphone Wireless Control App
-
- Mix your color
- Capture a photo, select a color, and load it to the light
- Name color and save it to your library
- Collaborate and share your colors
In the Box DMG Lumiere MINI MIX LED Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DMG Lumiere MINI MIX LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDMG Lumiere Mini Mix Specs | | | Color Temperature | 1700 to 10,000K | | Color Accuracy Standard | CRI 95
TLCI 90 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Photometrics | 3200K:
195.1 fc / 2100 lux at 3.28' / 1 m
5600K:
210 fc / 2260 lux at 3.28' / 1 m | | Number of LEDs | 288 | | Fixture Dimensions | 23.0 x 8.1 x 1.5" / 585.0 x 205.0 x 37.0 mm | | Fixture Weight | 5.64 lb / 2.56 kg (Including Frame) | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 to 35 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 100 W | | | | Certifications | CE, CSA, RoHS, as per Manufacturer | | IP Rating | IP20 |
