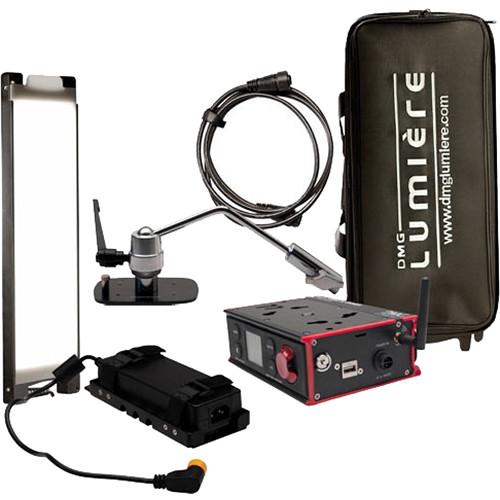

User Manual for DMG Lumiere MINI Switch WDMX AC Kit with Offset Mount and Bag

• Product category: LED Lights DMG Lumiere
• Brand: DMG Lumiere
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DMG Lumiere LED Lights

Product description

• MINI Switch Bi-Color LED Light Panel With light weight and a sleek, long rectangular form factor, the 23 x 7.8 x 0.8" MINI Switch Bi-Color LED Light Panel from DMG Lumiere offers multi-voltage AC and battery options, making the light an asset on location or in the studio. (This listing is for the panel only and requires separate purchase of a controller and power supply). The MINI Switch has color that's variable from 3200 to 5600K or anywhere in between, while maintaining a high CRI of 91+ to match other fixtures, ambient light conditions or just for creative effect. The light is also conveniently dimmable from 0-100% using the optional controller and at just 0.8" thick it can be used in places where other lights just won't fit.
• External Power Supply Unit for MINI Switch LED Light Made exclusively for the MINI Switch LED light, the External Power Supply Unit from DMG LUMIERE will mount to both the light fixture or its controls with a quick-lock system. The universal 100 to 240 VAC power supply can be used anywhere in the world.
• WDMX Universal Battery Box Compatible with the MINI Switch and the SL1 Switch LED lights, the WDMX Universal Battery Box from DMG Lumiere is a DMX DC driver and a required component to make color, light intensity, and control adjustments to the lights. The driver allows color control from 3000 to 5600K as well as dimming from 0-100% without flicker at any frame rate. These functions can be controlled locally on the unit or remotely via DMX or Wi-Fi. The Battery Box also has an onboard Lumen Radio FX chip for wireless DMX control. UPC: 808531020319
• 360 Degree Single Ball Offset Mount As an alternative to the standard "Lolly Pop" mount, the steel and aluminum 360 Degree Single Ball Offset Mount from DMG Lumiere offers a 5/8" female receiver that facilitates stand mounting of the MINI, MAXI, and SL1 Switches. The ball mount offers 360 degree adjustment while the offset gooseneck provides complete positioning freedom. The mount will handle lights weighing up to 44 lb - more than enough to support the MINI, MAXI, and SL1.
• MINI Rigid Bag with Wheels for MINI Switch Kit (Black) Store, transport, and protect your MINI Switch kit and accessories with the black MINI Rigid Bag from DMG Lumiere. The bag is designed to hold one fully accessorized MINI Switch kit, including the Dome. Four padded, touch-fastening dividers make organizing gear fast and easy. Carry your Rigid Bag with the dual connecting carry straps, top and bottom haul handles, adjustable shoulder belt, or roll with the retractable handle and built-in wheels. Anti-skid bottom feet provide upright standing capability.

• 4-Pin Extension Cable for MINI Switch Light to MINI Driver (6.6')

• Diffuser

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• 5 x Padded Dividers

• Adjustable Shoulder Belt

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MINI Switch Bi-Color LED Light Panel

  Light Source	1092 SMD2835 LEDs
  Color Range	3200 to 5600K (via separately purchased controller) 3000 to 5600K (with diffuser)
  CRI	@ 3200K: 91, @ 5600K: 94
  Dimming	0-100% (with optional controller)
  Operating Voltage	Input: 100-240 VAC, 50/60 Hz Output: 24 VDC Optional battery: 12-35 V
  Power Consumption	85 W max.
  Photometrics	1500 lux @ 3.0' (1.0 m) (without diffuser) 600 lux @ 10' (3.0 m) (without diffuser)
  Material of Construction	Aluminum
  Dimensions	23 x 7.8 x 0.8" (585 x 200 x 20 mm)
  Weight	3.7 lb (1.7 kg)

• External Power Supply Unit for MINI Switch LED Light

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Output Voltage	24 VDC

  Dimensions	6.7 x 2.4 x 1.6" / 170 x 60 x 40 mm
  Weight	2 lb / 0.9 kg

• WDMX Universal Battery Box

  Material of Construction	Black anodized aluminum and stainless steel screws
  Power	Input: 12 - 30 VDC Output: 24 VDC constant current
  Compatibility	MINI Switch, SL1 Switch lights
  Dimming	0-100%, 2 speeds, flicker-free at any frame rate
  Color Temperature	3000 - 5600K
  Control	Locally on unit DMX, Wireless DMX (Lumen Radio FX), Wi-Fi
  Connectors	Chogori input connector Wi-Fi / LAN input
  IP Rating	IP20
  Certifications	CE, CSA, RoHS
  Dimensions	8.2 x 4.7 x 2.3" (210 x 125 x 60 mm)
  Weight	2.7 lb (1.25 kg)

• 360 Degree Single Ball Offset Mount

  Material of Construction	Stainless steel
  Finish	Black and silver
  Compatibility	MINI, SL1, and MAXI Switch lights
  Load Capacity	44 lb (20 kg)
  Adjustments	360° Single ball action
  Dimensions	13.7 x 6.3 x 3.5" (350 x 160 x 90 mm) Receiver: 5/8" (16 mm) female
  Weight	2.2 lb (1.0 kg)

• MINI Rigid Bag with Wheels for MINI Switch Kit (Black)

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap Shoulder Strap 2 x Handle 1 x Telescoping Handle
  Casters	2
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	28.3 x 13 x 13" / 72 x 33 x 33 cm
  Weight	12.3 lb / 5.6 kg

  Box Dimensions (LxWxH)	31.4 x 15.8 x 15.0"

• 4-Pin Extension Cable for MINI Switch Light to MINI Driver (6.6')
