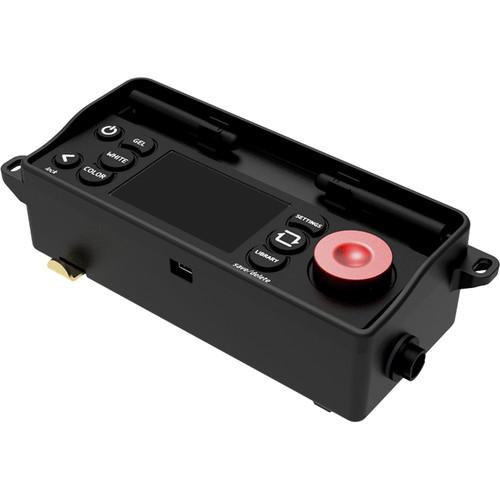

Product description The MIX Controller for MINI MIX or SL1 MIX LED Lights from DMG LUMIERE is essentially the "brain" for these two fixtures and uses several methods to precisely adjust light intensity and color. The unit has three color modes: White Mode, Color Mode, and Gel Mode. White is a simple CCT mode that allows you to vary color temperature from 1700 to 10,000K in 50K increments with full Magenta/Green control. Gel Mode allows you to select from 186 Rosco gel filters, as well as additional gels stored in the unit's memory. Limited Hue and Saturation adjustments are possible. Color Mode contains HSI control (Hue, Saturation, and Intensity) that adds the ability to select a white base between 3200 and 5600K, while in DMX Mode the CCT base is expanded to 1700 to 10,000K, and combined with Hue and Saturation allows the creation of any color in the spectrum. Dimming is available in all modes via 4 presets: 25, 50, 75, and 100%. There's also a folder that contains effects such as Emergency Vehicle, Paparazzi, and Firelight. The versatile Controller has multiple control options, too. Of course, you can make adjustments locally on the unit, but you can also do it remotely from a console with onboard DMX or wirelessly via the LumenRadio TiMo FX transceiver. You can also control the unit via the ArtNet protocol over the internet or a LAN network with Wi-Fi or an RJ45 connector. Most manufacturers would stop there but DMG has developed the myMIX app for iOS and Android that can control up to 14 controllers simultaneously via Bluetooth. The MIX Controller will accept optional V-Mount or Gold Mount batteries or a DMG power supply. - The MIX Controller can be Operated Remotely via 3 Communication Protocols:
- DMX 512 Wired and Wireless
- DMX512 is a worldwide standard communication protocol for the film and entertainment industry. There are 2 ways to communicate DMX to the MIX controller: wired DMX (XLR 5-pin) or Wireless DMX (LumenRadio TiMo FX RDM).
- Bluetooth with myMIX App
- MIX can be controlled remotely via Bluetooth with the myMIX app, which can control up to 14 controllers simultaneously. It's available for iOS and Android.
- ArtNet
- ArtNet is a communication protocol for transmitting the DMX512-A lighting control protocol and Remote Device Management (RDM) protocol over the User Datagram Protocol (UDP) of the Internet Protocol suite. It enables lights to be controlled over standard internet or LAN network (via Wi-Fi or RJ45 connector).
In the Box DMG Lumiere MIX Controller for MINI MIX or SL1 MIX LED Lights Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DMG Lumiere MIX Controller for MINI MIX or SL1 MIX LED Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDMG Lumiere SL1/MINI CT-MX Specs | Color | White Mode:
1700-10000K in 50K Increments
Green/Magenta: Full Green to Full Magenta (100G to 100M) in 1G or 1M increments
Gel Mode:
Intensity Resolution: 0.1%
White Base: 3200 or 5600K
Hue Range: -10 to +10° (1° increment)
Saturation Range: -20 to +20% (1% increment)
Color Mode
Intensity Resolution: 0.1%
CCT Base: 3200 or 5600K
Hue Range: 0 to 360° (1° increment)
Saturation Range: -20 to +20% (1% increment) | | Dimming | 4 Presets: 25, 50, 75, and 100%
Linear, Square Law, SCurve, Tungsten Emulated Dimming | | Input | MINI MIX Battery Voltage from 12 to 30 VDC
SL1 MIX Battery Voltage from 24 to 30 VDC | | Control | DMX512
Wireless CRMX by LumenRadio TiMo FX Transceiver
RDM
Bluetooth with the myMIX App
ArtNet via LAN (RJ45) and Wi-Fi | | Connectors | Micro-USB for Upgrades
5-Pin XLR for DMX | | Approvals and Certifications | CE, SA, RoHS, EU Safety, FCC, CSA, CAN/CSA, UL, EN/IEC 62471 | | IP Rating | IP20 | | Maximum Wattage | 200 W | | Operating Temperature | 104°F / 40°C Max. | | Dimensions | 8.6 x 3.3 x 2.4" / 218 x 85 x 62 mm | | Weight | 1.0 lb / 480 g |
