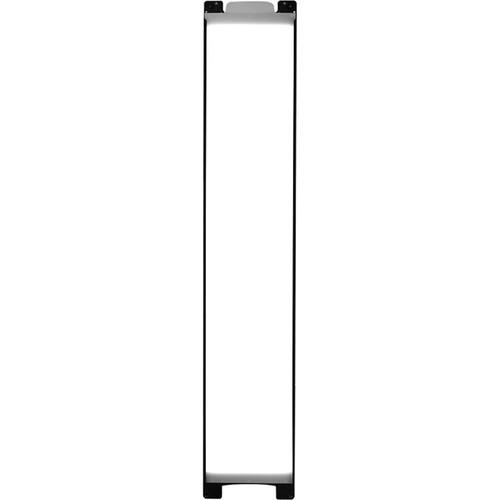

User Manual for DMG Lumiere SL1 MIX LED Panel Click to enlarge the picture
Contents of the user manual for the DMG Lumiere SL1 MIX LED Panel
- Product category: LED Lights DMG Lumiere
- Brand: DMG Lumiere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DMG Lumiere LED Lights
|
User manual for the DMG Lumiere SL1 MIX LED Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DMG Lumiere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DMG Lumiere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DMG Lumiere product will considerably shorten its lifespan!
|
Product description Offering power options, expansive color control choices, and a long, narrow form factor, the SL1 MIX LED Panel from DNG LUMIERE is a lightweight fixture measuring 48 x 8" and just 1.25" thick, allowing it to light areas where traditional fixtures can't go. The fact that it barely generates any heat makes it an even more valuable tool in tight situations.DMG used a proprietary blend of red, lime, green, blue, amber, and white LEDs backed by a Color Mode plus hue and saturation adjustment to create the colors needed for your requirements. There is also full +/- green control, as well as Rosco's commonly used gel presets. The wide color latitude provides access to color temperatures from 1700 to 10,000K with a CRI of 95 and a TLCI of 90. The light's intensity is also variable from 0 to 100%, and while you can make these adjustments locally on the fixture, you can also make them wirelessly via DMG's myMIX phone app with your iOS or Android devices. The available phone app allows you to wirelessly mix your color, select a color, load it into your light, name it, save it to your library, and share colors with others.This panel does not come with a power source. Choose between an optional SL1 MIX controller for DMX and AC use, universal power supply, or a battery plate for external V-mount or Gold Mount batteries. - Improve Your Workflow with myMIX Smartphone Wireless Control App
-
- Mix color
- Capture a photo, select a color, and load it to the light
- Name color and save it to library
- Collaborate, share your colors
In the Box DMG Lumiere SL1 MIX LED Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DMG Lumiere SL1 MIX LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDMG Lumiere SL1 Mix Specs | | | Color Temperature | 1700 to 10,000K | | Color Accuracy Standard | CRI 95
TLCI 90 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Photometrics | 3200K:
380.9 fc / 4100 lux at 3.28' / 1 m
5600K:
374.9 fc / 4036 lux at 3.28' / 1 m | | Number of LEDs | 576 | | Fixture Dimensions | 44.0 x 8.1 x 1.5" / 1118.0 x 205.0 x 37.0 mm | | Fixture Weight | 9.22 lb / 4.18 kg (Including Frame) | | | | Fixture Mount | None | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 to 35 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 200 W | | | | Certifications | CE, CSA, RoHS, as per Manufacturer | | IP Rating | IP20 |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
