User Manual for DMG Lumiere SL1 Switch Bi-Color LED Light Click to enlarge the picture
Contents of the user manual for the DMG Lumiere SL1 Switch Bi-Color LED
- Product category: LED Lights DMG Lumiere
- Brand: DMG Lumiere
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DMG Lumiere LED Lights
|
User manual for the DMG Lumiere SL1 Switch Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DMG Lumiere product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DMG Lumiere user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DMG Lumiere product will considerably shorten its lifespan!
|

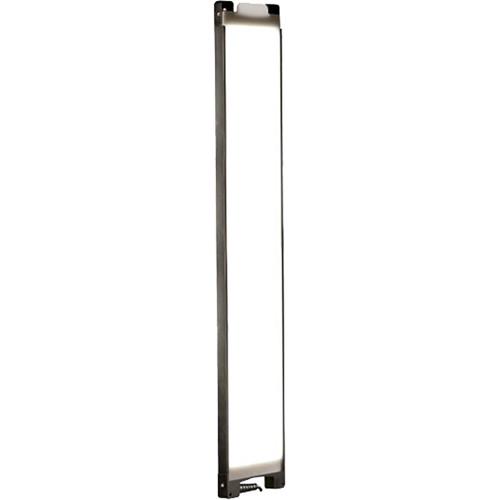

Product description With light weight and a sleek, long rectangular form factor, the 44.4 x 7.8 x 0.75" SL1 Switch Bi-Color LED Light from DMG Lumiere offers multi-voltage AC and battery options, making the light an asset on location or in the studio. (This listing is for the panel only and requires separate purchase of a power supply). The SL1 Switch has color that's variable from 3000 to 5600K or anywhere in between, while maintaining a high CRI of 94 to 96 to match other fixtures, ambient light conditions or just for creative effect. The light is also conveniently dimmable from 0-100% using the optional power supply and at just 0.8" thick it can be used in places where other lights just won't fit. In the Box DMG Lumiere SL1 Switch Bi-Color LED Light Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DMG Lumiere SL1 Switch Bi-Color LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDMG Lumiere SL1 Switch Specs | Light Source | 2184 SMD2835 LEDs | | Color Range | 3000 to 5600K | | CRI / TLCI | CRI @ 3200K: 94, @ 5600K: 96
TLCI-II @ 3200K: 91, @ 5600K: 94 | | Dimming | 0-100% Flicker-free at any fps, 2 speeds (with optional power supply) | | Diffuser | Frosted acrylic | | Operating Voltage | 100-240 VAC, 50/60 Hz, 24 VDC, 7 A
Optional battery: 10-36 VDC (8-pin connector, optional V-mount or Gold mount plates) | | Power Consumption | 170 W max. | | Photometrics | lux @ 3200K
2835 lux @ 3.0' (1.0 m)
642 lux @ 8.2' (2.5 m)
475 lux @ 10' (3.0 m)
lux @ 5600K
2885 lux @ 3.0' (1.0 m)
682 lux @ 8.2' (2.5 m)
547 lux @ 10' (3.0 m)
fc @ 3200K
581 fc @ 2.0' (0.6 m)
105 fc @ 6.0' (1.8 m)
46 fc @ 10' (3.0 m)
fc @ 5600K
638 fc @ 2.0' (0.6 m)
102 fc @ 6.0' (1.8 m)
44 fc @ 10' (3.0 m) | | Cooling | Passive | | Material of Construction | Black anodized aluminum and stainless steel screws | | Mount | K1 single ball | | Certifications | CE, CSA, RoHS | | IP Rating | IP20 | | Dimensions | 44.4 x 7.8 x 0.75" (1130 x 200 x 20 mm) | | Weight | 7.5 lb (3.4 kg) |
