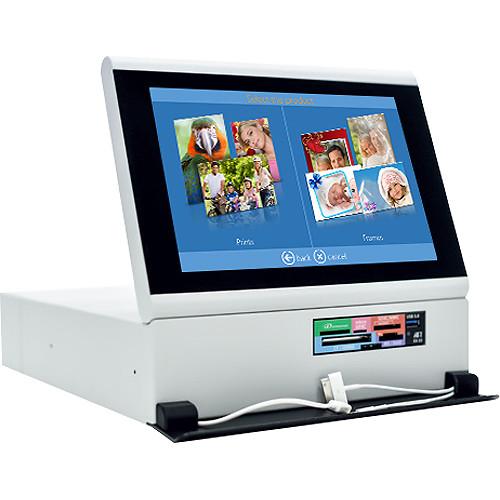

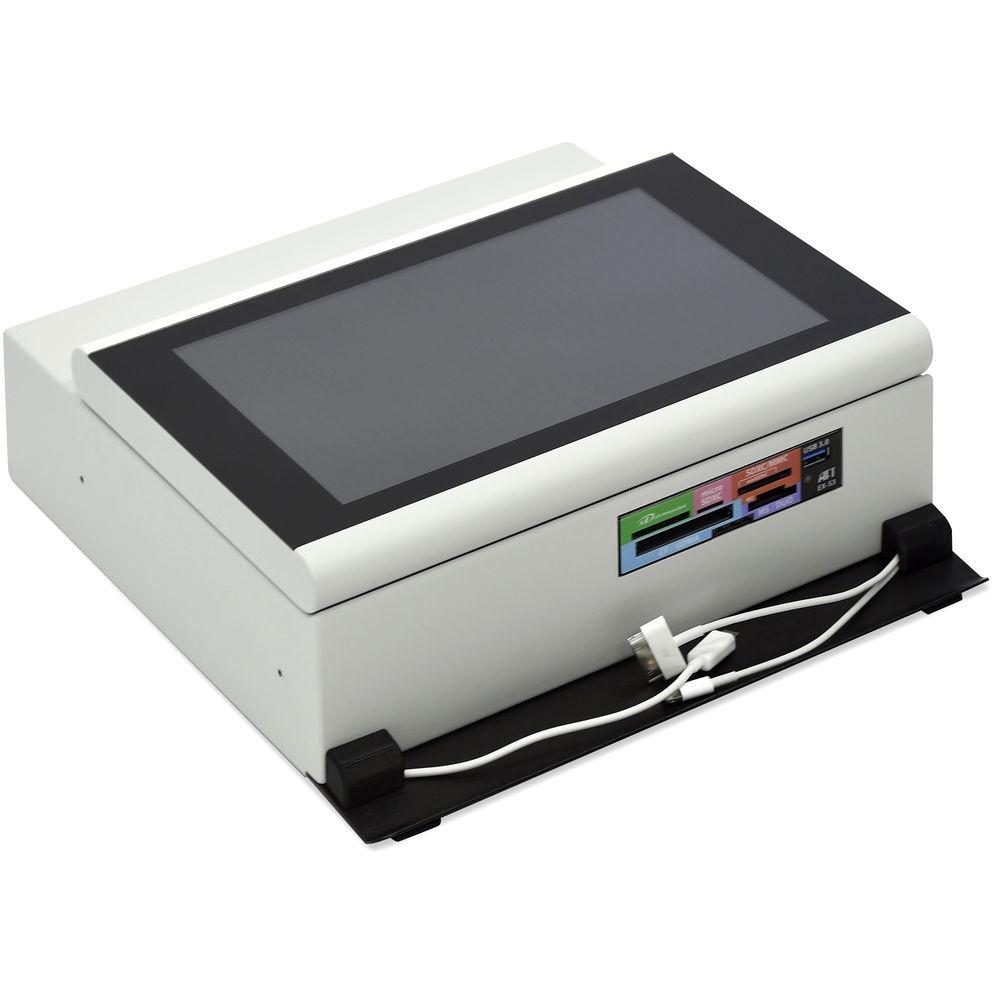

Product description Create an intuitive all-in-one kiosk system by combining this DS-Tmini Kiosk Order Terminal with one or two DS620A, DS820, DS80, DS-RX1, or DS80DX dye sublimation printers from DNP. The DS-Tmini transforms the printers into a full-fledged ordering system that can be quickly set up on location for customers. Making operation intuitive is the use of a large 10.1" color touchscreen with a resolution of 1200 x 800. Also, it comes with a router that allows it to be networked and then work with the DNP mobile app for iOS and Android devices.

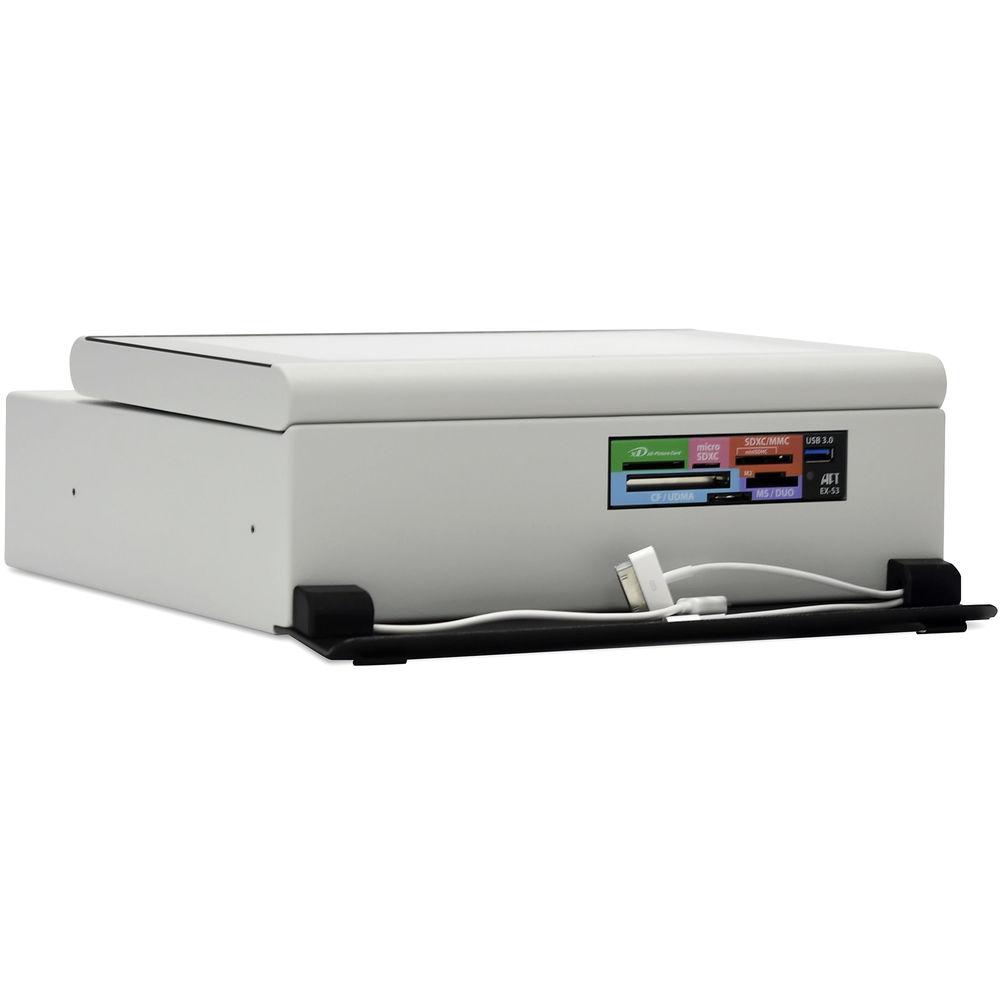

The kiosk comes equipped with multiple interfaces for printing from a variety of devices. This includes a card reader with inputs for SD, microSD, CompactFlash, Memory Stick, Memory Stick Micro, and xD as well as four USB ports that can accept connections from smartphones and other devices. A smartphone holder is conveniently built into the system as well, to account for customers working directly from their phone. - Works with DS620, DS-RX1HS, DS820, DS80, and DS80DX printers
- 10.1" color touchscreen with 1200 x 800 resolution
- Four USB ports and one Ethernet port for connectivity
- Works directly with iOS and Android devices via a mobile app
- Wireless connectivity is possible with the router
- Media reader with SD, microSD, Memory Stick, Memory Stick Micro, CompactFlash, and xD card slots
- Optional payment option to use remote numeric pad to release order
- Runs 64-bit Windows 8 operating system with Intel Celeron J1900 processor, 4GB DDR3 RAM, and 120GB SSD
- Can connect up to two printers for advanced print setup
UPC: 847605010894 In the Box DNP DS-Tmini Kiosk Order Terminal N150 Wireless Router 2 x Side Brackets Rear Bracket Router Holder 6 x M3 Screws CD with Drivers USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DNP DS-Tmini Kiosk Order Terminal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDNP DS-TMINI Specs | Display | 10.1" / 25.7 cm touchscreen IPS LCD
1200 x 800 resolution | | Interface | 4 x USB 2.0
1 x Ethernet | | Mobile Printing Features | iOS and Android wired connection
DNP mobile app for iOS and Android | | Card Reader | SD
microSD
Memory Stick
Memory Stick Micro
xD
CompactFlash (CF)
USB | | Operating System | Windows 8 (64-bit) | | Processor | Intel Celeron J1900 | | Memory | 4 GB DDR3 SODIMM | | Storage | 120 GB SSD | | Payment Method | Optional remote numeric pad (release order print) | | Power Requirements | 110-240 VAC, 50/60 Hz | | Dimensions | Order Terminal: 10.8 x 12.3 x 3.8-10.1" / 27.4 x 31.2 x 9.7-25.7 cm
Overall: 10.8 x 15.7 x 10.5-16.8" / 27.4 x 39.9 x 26.7-42.7 cm | | Weight | Order Terminal: 10 lb / 4.5 kg
Overall: 40 lb / 18.1 kg | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 20.0 x 15.5 x 12.0" |
