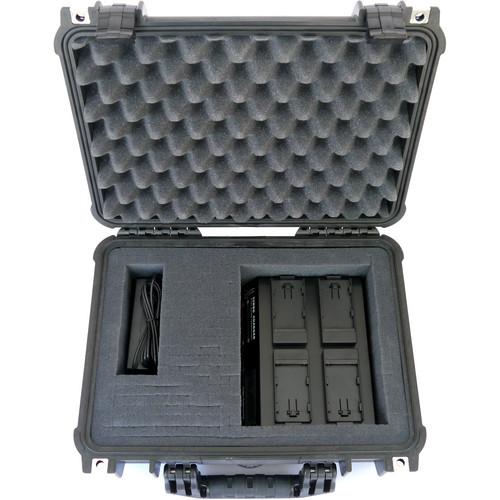

Product description The Dolgin Engineering On-The-Go 4-Position Charger Field Kit includes the TC400-SON 4-Position Battery Charger in the Pelican 1450 Case with custom foam insert. This kit is suitable for users who have to travel and work offsite in demanding conditions. The TC400-SON Battery Charger features 4 premium mousetrap lock / release battery plates for charging Sony PD170, VX2100, and NP L camera battery packs. The charger features an LCD display that indicates the charge status and true capacity upon charge completion. As the battery is charged, its status is displayed in volts, Ah (as counted by the charger fuel gauge), and percentage charge (estimated using a proprietary algorithm). The Pelican 1450 Case with custom foam insert is a hard, unbreakable, watertight, airtight, dustproof, chemical-resistant, and corrosion-proof case used to carry any kind of equipment that needs to be protected from the elements. It is made of an Ultra High Impact structural copolymer that makes it extremely strong and durable. This case includes a 0.25" (6.4mm) neoprene o-ring, easy-open double throw latches that seal perfectly, and an automatic pressure equalization valve for quick equalization after changes in atmospheric pressure. The case has a comfortable rubber over-molded handle. Apart from housing the battery charger and the AC adapter (included with all 4-position chargers), it also has room for storing batteries, cables, etc. (sold separately). - TC400 Four-Position Simultaneous Battery Charger for Sony L-Series
- Fast 2x and 4x battery chargers demo
The TC400-SON from Dolgin Engineering features integrated battery plates that support Sony and third-party NP-F970, NP-F770, and NP-F975 batteries. These batteries are used with Sony's HD1000U, Z5U, Z7U, MC2000U, NX5U, HDRFX7, and FS700R cameras.
The TC400 has an LCD screen on the front panel that displays charge status in volts, amp hours, and percentage of charge that's estimated using a proprietary algorithm.
The TC400 has fully independent channels and deliver simultaneous charging to all four batteries. Based on a capacity of 5600mAh, this particular model delivers a complete charge to a single battery or up to four batteries in approximately 3.5 hours.
The charger comes with a U.S. power cord and supports worldwide power input via optional plug adapters. 1450 Case with Foam (Black) The Pelican 1450 Case with Foam (Black) is an unbreakable, watertight, airtight, dustproof, chemical-resistant and corrosion-proof hard case used to carry any kind of equipment that needs to be protected from the elements. It is made of Ultra High Impact structural copolymer that makes it extremely strong and durable. It includes a 0.25" (6.4 mm) neoprene o-ring, easy-open double throw latches that seal perfectly, and an automatic pressure equalization valve for quick equalization after changes in atmospheric pressure. The case has a comfortable rubber over-molded handle. This case includes a 3-piece foam set. - Construction
-
- Ultra High Impact structural copolymer
- Watertight, crushproof, and dustproof
- Foam interior
- Open cell core with solid wall design
- Stainless steel hardware
- Three-piece foam set that consists of 1 "egg crate" foam upper section, 1 Pick 'N' Pluck foam section and one 1.0" blank bottom foam section
- Automatic pressure equalization valve
- 0.25" (6.4mm) neoprene o-ring
- Easy-open double throw latches with stainless steel padlock protectors
- Temperature rating -40 to +210°F (-40 to +95°C)
- Comfortable rubber over-molded handle
- Certifications
-
- IP67 (Ingress Protection) = 1 meter submersion or 30 minutes
- MIL C-4150J (Military Standard)
- Defense standard 81-41/STANAG4280
UPC: 019428010805 In the Box Bundle Items TC400 Four-Position Simultaneous Battery Charger for Sony L-Series ecdwcsdaafudvbeeuyzxcca 1450 Case with Foam (Black) ecdwcsdaafudvbeeuyzxcca - Unconditional Lifetime Guarantee of Excellence
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering On-The-Go 4-Position Charger Field Kit for Sony PD170 VX2100 NP L Camera Battery Packs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TC400 Four-Position Simultaneous Battery Charger for Sony L-Series
| Type of Charging | Simultaneous | | Charge Time | Approx. 3.5 hours per channel/all four channels based on 5600 mAh capacity | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions | 8.4 x 2.5 x 6.6" (21.3 x 6.4 x 16.8 cm) | | Weight | 4 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 11.85 x 9.2 x 4.5" | - 1450 Case with Foam (Black)
| Carry/Transport Options | Top Handle | | Closure Type | Latch | | Materials | Polypropylene | | Interior Contents | Cube/Diced Foam | | Exterior Dimensions | 16.0 x 13.0 x 6.9" / 40.6 x 33.0 x 17.5 cm | | Interior Dimensions | 14.6 x 10.2 x 6" / 37.1 x 25.9 x 15.2 cm | | Watertight | Yes, O-Ring Seal | | Maximum Buoyancy | 30.0 lb / 13.6 kg | | Weight | 6.4 lb / 2.9 kg | | | | Box Dimensions (LxWxH) | 16.5 x 13.5 x 6.5" |
