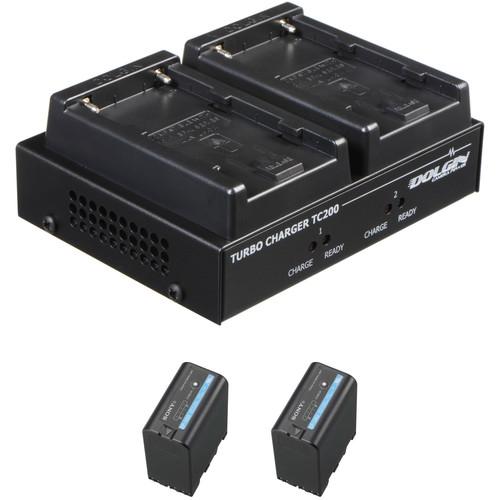

User Manual for Dolgin Engineering TC200-EX Two-Position Charger Kit with 2 x Sony BPU-60 Batteries Click to enlarge the picture
Contents of the user manual for the Dolgin Engineering TC200-EX Two-Position Charger Kit
- Product category: On Camera Batteries Dolgin Engineering
- Brand: Dolgin Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dolgin Engineering On Camera Batteries
|
User manual for the Dolgin Engineering TC200-EX Two-Position Charger Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dolgin Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dolgin Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dolgin Engineering product will considerably shorten its lifespan!
|
Product description This Kit packages the Dolgin Engineering TC200-EX Two-Position Battery Charger with two Sony BPU-60 batteries. This combo provides a quick-charging solution for powering any BP-U60–compatible camera. The TC200-EX charger features simultaneous charging for up to two batteries with an approximate 4-hour charging time. Also compatible with BPU-30, BP-U90, and third-party models, the charger has front-panel LED status lights and it accepts 100-240 VAC power. For better battery management while shooting, the Sony BPU-60 battery's Info-Lithium system displays remaining battery time in the EVF and on the LCD of compatible cameras. These lithium-ion batteries can be charged or discharged at any capacity without developing a memory. - Dolgin Engineering TC200 Two-Position Simultaneous Battery Charger for Sony BP-U30, BP-U60, BP-U90
- Fast 2x and 4x battery chargers demo
The TC200-EX Battery Charger from Dolgin Engineering features integrated battery plates that support Sony and third-party BP-U30, BP-U60, and BP-U90 batteries. These batteries are used with Sony's PXW-FS7, PMW-EX1, PMW-EX3, PMW-100, PMW-200, and PMW-300 cameras.
The TC200 has semi-independent channels and allocates more power to the battery that needs it the most first. Once battery levels are equal it charges both batteries simultaneously with equal power distribution. The result is that all batteries will be ready at the same time. This particular model will charge a single or two BP-U60 batteries in approximately 4 hours.
The charger comes with a U.S. power cord and supports worldwide power input via optional plug adapters. 2 x Sony BP-U60 Lithium-Ion Battery - Fast 2x and 4x battery chargers demo
The Sony BP-U60 is a lithium-ion battery designed for professional video shooting in both the field and the studio. This battery is equipped with the INFO function that communicates battery status data to the PMW-EX1 camcorder. - INFO Function
- The remaining capacity of the battery is displayed on the LCD monitor and viewfinder when the camcorder is powered on.
In the Box - TC200 Two-Position Simultaneous Battery Charger for Sony BP-U30, BP-U60, BP-U90
- Power Cord
- Limited 2-Year Warranty
- 2 x Sony - BP-U60 Lithium-Ion Battery - for PMW-EX1 Camcorder, INFO Function, 56 Wh
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering TC200-EX Two-Position Charger Kit with 2 x Sony BPU-60 Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dolgin Engineering TC200 Two-Position Simultaneous Battery Charger for Sony BP-U30, BP-U60, BP-U90
| Type of Charging | Simultaneous, Dynamic Power Management (DPM) | | Charge Time | Approx. This particular model will charge a single or two BP-U60 batteries in approximately 4 hours. hours per channel/both channels based on 5600 mAh capacity | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions | 5.5 x 4 x 1.5" (13.9 x 10.16 x 3.8 cm) | | | | Box Dimensions (LxWxH) | 9.65 x 7.0 x 3.0" | - 2 x Sony BP-U60 Lithium-Ion Battery
| Mount / Series Type | Sony BP-U Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 56 Wh | | Output Voltage | 14.4 VDC | | Dimensions (W x H x D) | 1.7 x 3.2 x 2.8" / 415.0 x 825.0 x 697.0 mm | | Weight | 15 oz / 350 g | | | | Box Dimensions (LxWxH) | 3.6 x 2.95 x 2.2" |
