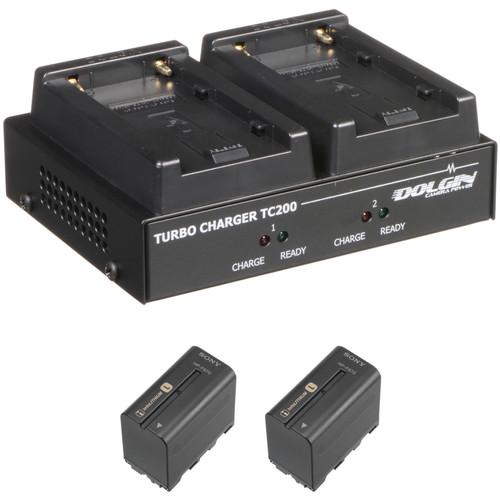

User Manual for Dolgin Engineering TC200-SON Two-Position Charger Kit with 2 x Sony NP-F970 Batteries Click to enlarge the picture
Contents of the user manual for the Dolgin Engineering TC200-SON Two-Position Charger Kit
- Product category: On Camera Batteries Dolgin Engineering
- Brand: Dolgin Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dolgin Engineering On Camera Batteries
|
User manual for the Dolgin Engineering TC200-SON Two-Position Charger Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dolgin Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dolgin Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dolgin Engineering product will considerably shorten its lifespan!
|
Product description This Kit packages the Dolgin Engineering TC200-SON Two-Position Charger with two Sony NP-F970 L-Series batteries. This combo provides a quick-charging solution for powering any NP-F970–compatible camera. The TC200-SON charger features simultaneous charging for up to two batteries with an approximate 4.5-hour charging time. This charger is also compatible with NP-F975, NP-F770, and third-party models. It has front-panel LED status lights, and it accepts 100-240 VAC power as well as 12 VDC power (via an optional adapter). For better battery management while shooting, the Sony NP-F970 battery's Info-Lithium system displays remaining battery time in minutes in the EVF and on the LCD of compatible cameras. These 7.2V lithium-ion batteries will not develop a memory and can last for up to 12 hours on a single charge. - Dolgin Engineering TC200 Two-Position Simultaneous Battery Charger for Sony L-Series
- Fast 2x and 4x battery chargers demo
The TC200-SON Battery Charger from Dolgin Engineering features integrated battery plates that support Sony and third-party NP-F970, NP-F770, and NP-F975 batteries. These batteries are used with Sony's HD1000U, Z5U, Z7U, MC2000U, NX5U, HDRFX7, and FS700R cameras.
The TC200 has semi-independent channels and allocates more power to the battery that needs it the most first. Once battery levels are equal it charges both batteries simultaneously with equal power distribution. The result is that all batteries will be ready at the same time. Based on a capacity of 5600mAh, this particular model delivers a complete charge in approximately 4.5 hours to a single battery or both.
The charger comes with a U.S. power cord and supports worldwide power input via optional plug adapters, as well as 12VDC car lighter power via an optional car lighter adapter (model # DE_CAR_12). 2 x Sony NP-F970 L-Series Info-Lithium Battery Pack (6300mAh) - Fast 2x and 4x battery chargers demo
Small and lightweight, Sony's NP-F970 Info-Lithium Battery Pack (6300mAh) provides the advantages of lithium-ion, meaning it can be charged or discharged at anytime without developing memory effect. This means the battery never loses its ability to hold a full charge. The NP-F970 displays remaining battery time on the LCD as well as in the viewfinder by continuously communicating with the camcorder. The battery lasts for up to 12 hours on a single full charge. Sony's Info-Lithium battery packs have a built-in micro processor that accurately calculates remaining battery life in minutes. UPC: 027242634213 In the Box - TC200 Two-Position Simultaneous Battery Charger for Sony L-Series
- Power Cord
- Limited 2-Year Warranty
- 2 x Sony - NP-F970 L-Series Info-Lithium Battery Pack (6300mAh) xtartffqwywr
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering TC200-SON Two-Position Charger Kit with 2 x Sony NP-F970 Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dolgin Engineering TC200 Two-Position Simultaneous Battery Charger for Sony L-Series
| Type of Charging | Simultaneous, Dynamic Power Management (DPM) | | Charge Time | Approx. Based on a capacity of 5600mAh, this particular model delivers a complete charge in approximately 4.5 hours to a single battery or both. hours per channel/both channels based on 5600 mAh capacity | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions | 5.5 x 4 x 1.5" (13.9 x 10.16 x 3.8 cm) | | | | Box Dimensions (LxWxH) | 9.6 x 7.0 x 3.0" | - 2 x Sony NP-F970 L-Series Info-Lithium Battery Pack (6300mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Amp-Hours | 6300 mAh | | Output Voltage | 7.2 VDC | | Dimensions (W x H x D) | 2.2 x 2.9 x 1.5" / 57.0 x 73.0 x 38.0 mm | | Weight | 12.3 oz / 350 g | | | | Box Dimensions (LxWxH) | 8.55 x 3.45 x 2.45" |
