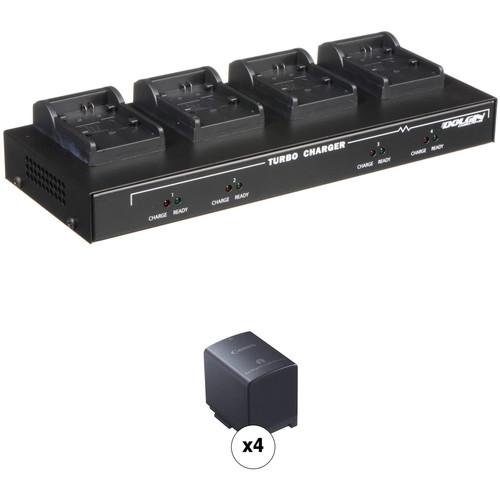

User Manual for Dolgin Engineering TC40 Four-Position Charger Kit with 4 x Canon BP-828 Batteries Click to enlarge the picture
Contents of the user manual for the Dolgin Engineering TC40 Four-Position Charger Kit
- Product category: On Camera Batteries Dolgin Engineering
- Brand: Dolgin Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dolgin Engineering On Camera Batteries
|
User manual for the Dolgin Engineering TC40 Four-Position Charger Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dolgin Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dolgin Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dolgin Engineering product will considerably shorten its lifespan!
|
Product description This Kit packages the Dolgin Engineering TC40-CAN-BP-827 Four-Position Battery Charger with four Canon BP-828 batteries. This combo provides a quick-charging solution for powering any BP-828 series–compatible camera. The TC40-CAN charger features simultaneous charging for up to four batteries with an approximate 2.5-hour charging time. Compatible with BP-827, BP-820, BP-819, and third-party models, the TC40-CAN charger has front-panel LED status lights and accepts 100-240 VAC power as well as 12 VDC power (via an optional adapter). The 7.4V, lithium-ion Canon BP-828 battery features a compact, lightweight form and can be charged or discharged at any capacity without developing a memory. - Dolgin Engineering TC40 Four-Position Simultaneous Battery Charger for Canon BP-800 Series
- Fast 2x and 4x battery chargers demo
The TC40-CAN-BP-827 from Dolgin Engineering features integrated battery plates that support Canon and third-party BP-827, BP-828, BP-819, and BP-820 batteries. These batteries are used with Canon's HF100, HF G20, HF G30, XA10, XA20, and XA25 cameras.
The TC40 has semi-independent channels and provides Dynamic Power Management (DPM) when charging four batteries. This means that it allocates more power to the battery that needs it the most first. Once battery levels are equal it charges all batteries simultaneously with equal power distribution. The result is that all batteries will be ready at the same time. Based on a capacity of 5600mAh, the TC40 delivers a complete charge in approximately 2.5 hours for four batteries or when you charge a single battery. With the battery plates built in, the battery contacts are ensured to remain more intact.
Charge status is displayed per battery by indicator lights on the front panel. The TC40 comes with a U.S. power cord and supports worldwide power input via optional plug adapters, as well as 12 VDC car lighter power via an optional adapter (model # DE_CAR_12). - Compatible Batteries
-
- BP-827
- BP-828
- BP-819
- BP-820
4 x Canon BP-828 Lithium-Ion Battery Pack (2670mAh) - Fast 2x and 4x battery chargers demo
The Canon BP-828 Lithium-Ion Battery Pack works with the XF405, XF400, XA15, XA11, XA35, XA30, XA25, XA20, VIXIA HF G40, VIXIA HF G30, VIXIA HF G21, and VIXIA GX10 camcorders. This replacement battery pack features a capacity of 2670mAh and 7.4V of output power. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effect. - The battery takes about 405 minutes to charge via the camcorder, but approximately 260 minutes when using an optional CG-800D battery charger. Charging time will vary depending on the charge state of the battery when you begin charging it and the temperature. The battery should be charged at temperatures between 50 to 86°F, and it will not charge if the ambient or the battery pack's temperature is either colder than 32°F or higher than 104°F.
UPC: 013803224900 In the Box - TC40 Four-Position Simultaneous Battery Charger for Canon BP-800 Series
- Power Cord
- Limited 2-Year Warranty
- 4 x Canon - BP-828 Lithium-Ion Battery Pack (2670mAh) etrvtedsufcsrtarzquyyqtfrxce
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering TC40 Four-Position Charger Kit with 4 x Canon BP-828 Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dolgin Engineering TC40 Four-Position Simultaneous Battery Charger for Canon BP-800 Series
| Type of Charging | Simultaneous, Dynamic Power Management (DPM) | | Charge Time | Approx. 2.5 hours per channel/all 4 channels based on 5600 mAh capacity | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions | 10.0 x 4.0 x 1.5" (25.4 x 10.2 x 3.8 cm) | | Weight | 4 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 11.8 x 9.1 x 4.2" | - 4 x Canon BP-828 Lithium-Ion Battery Pack (2670mAh)
| Amp-Hours | 2670 mAh | | Maximum Output Voltage | 7.4 VDC | | Chemistry | Lithium-Ion | | | | Box Dimensions (LxWxH) | 7.15 x 2.85 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
