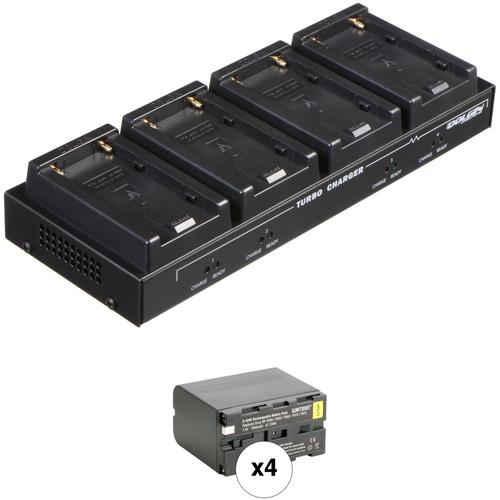

User Manual for Dolgin Engineering TC40-SON Four-Position Charger Kit with 4 x Watson NP-F975 Batteries Click to enlarge the picture
Contents of the user manual for the Dolgin Engineering TC40-SON Four-Position Charger Kit
- Product category: On Camera Batteries Dolgin Engineering
- Brand: Dolgin Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dolgin Engineering On Camera Batteries
|
User manual for the Dolgin Engineering TC40-SON Four-Position Charger Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dolgin Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dolgin Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dolgin Engineering product will considerably shorten its lifespan!
|
Product description This Kit packages the Dolgin Engineering TC40-SON Four-Position Charger with four Watson NP-F975 L-Series batteries. This combo provides a quick-charging solution for powering any NP-F975–compatible camera. The TC40-SON charger features simultaneous charging for up to four batteries with an approximate 4.5-hour charging time. The TC40-SON charger is also compatible with NP-F970, NP-F770, and third-party models. It has front-panel LED status lights, and it accepts 100-240 VAC power as well as 12 VDC power (via an optional adapter). The 7.4V, lithium-ion NP-F975 battery packs will not develop a memory and feature a lightweight, compact form factor. - Dolgin Engineering TC40 Four-Position Simultaneous Battery Charger for Sony L-Series
- Fast 2x and 4x battery chargers demo
The TC40-SON from Dolgin Engineering features integrated battery plates that support Sony and third-party NP-F970, NP-F770, NP-F975 batteries. These batteries are used with Sony's HD1000U, Z5U, Z7U, MC2000U, NX5U, HDRFX7, and FS700R cameras.
The TC40 has semi-independent channels and provides Dynamic Power Management (DPM) when charging four batteries. This means that it allocates more power to the battery that needs it the most first. Once battery levels are equal it charges all batteries simultaneously with equal power distribution. The result is that all batteries will be ready at the same time. Based on a capacity of 5600mAh, the TC40 delivers a complete charge in approximately 4.5 hours for four batteries or when you charge a single battery. With the battery plates built in, the battery contacts are ensured to remain more intact.
Charge status is displayed per battery by indicator lights on the front panel. The TC40 comes with a U.S. power cord and supports worldwide power input via optional plug adapters, as well as 12 VDC car lighter power via an optional adapter (model # DE_CAR_12). 4 x Watson NP-F975 Lithium-Ion Battery Pack (7.4V, 7800mAh) - Fast 2x and 4x battery chargers demo
The Watson NP-F975 Lithium-Ion Battery Pack works with the same cameras as the Sony NP-F970 series batteries. This replacement battery pack features a capacity of 7800mAh, 7.4V of output power, and 57.72 watt hours. Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effects. - Compatible Cameras
- Sony
- DCR-SD1000
- DCR-SR40
- DCR-TRV900
- DCR-VX2000
- DCR-VX2100
- DCR-VX2200
- HDR-AX2000
- HDR-FX1
- HDR-FX7
- HDR-FX1000
- HVR-HD1000
- HVR-V1
- HVR-Z1
- HVR-Z5
- HVR-Z7
- HXR-MC1500
- HXR-MC2000
- HXR-NX5
- HXR-NX5R
- NEX-EA50
- NEX-FS100
- NEX-FS700
UPC: 847628541078 In the Box - TC40 Four-Position Simultaneous Battery Charger for Sony L-Series
- Power Cord
- Limited 2-Year Warranty
- 4 x Watson - NP-F975 Lithium-Ion Battery Pack (7.4V, 7800mAh) etrvtedsufcsrtarzquyyqtfrxce
Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering TC40-SON Four-Position Charger Kit with 4 x Watson NP-F975 Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dolgin Engineering TC40 Four-Position Simultaneous Battery Charger for Sony L-Series
| Type of Charging | Simultaneous, Dynamic Power Management (DPM) | | Charge Time | Approx. 4.5 hours per channel/all 4 channels based on 5600 mAh capacity | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions | 10.0 x 4.0 x 1.5" (25.4 x 10.2 x 3.8 cm) | | Weight | 4 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 11.6 x 9.0 x 4.2" | - 4 x Watson NP-F975 Lithium-Ion Battery Pack (7.4V, 7800mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 57.72 Wh | | Amp-Hours | 7800 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 2.4" / 70.0 x 39.0 x 60.0 mm | | Weight | 10.3 oz / 292 g | | | | Box Dimensions (LxWxH) | 5.4 x 2.9 x 1.9" |
