User Manual for Dolgin Engineering TC400 Four Position Battery Charger and TDM for Sony NP-FM500H Click to enlarge the picture
Contents of the user manual for the Dolgin Engineering TC400 Four Position Battery
- Product category: Batteries & Power Accessories Dolgin Engineering
- Brand: Dolgin Engineering
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dolgin Engineering Batteries & Power Accessories
 |
User manual for the Dolgin Engineering TC400 Four Position Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dolgin Engineering product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dolgin Engineering user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dolgin Engineering product will considerably shorten its lifespan!
|
Product description The Dolgin Engineering TC400 Four Position Battery Charger and TDM simultaneously charges up to 4 select Sony-type battery packs. It supports the following batteries: Sony NP-FM50, NP-FM500H, NP-FM55H, NP-FM70, NP-FM90, NP-FM91, NP-QM71, NP-QM71D, NP-QM91, or NP-QM91D batteries. It will charge batteries in approximately 2.5 hours, even when all 4 charging bays are filled. Additionally, each battery bay is independent, meaning that batteries can be added and removed at any time.

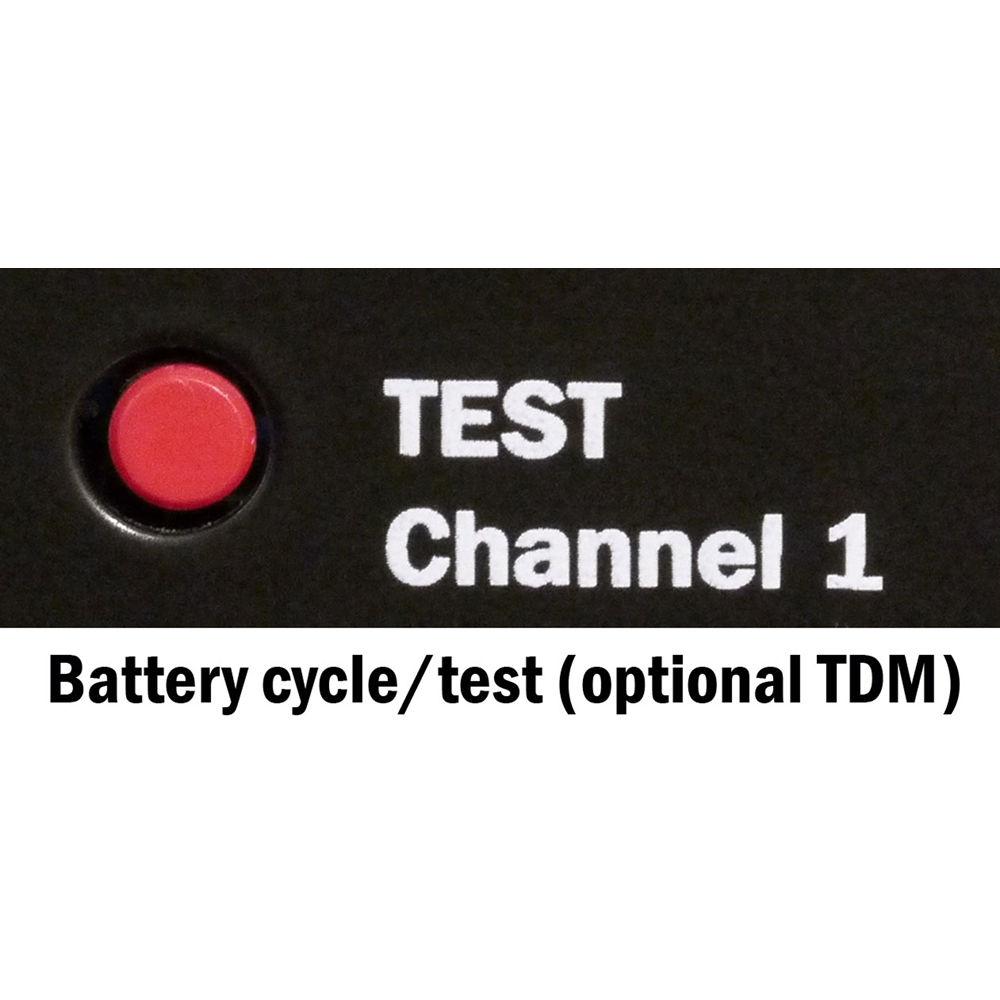

A built-in test/discharge module enables detailed battery test, and can discharge the battery before charging. An LCD display provides information on the charging status of each battery. It provides the information in volts, Ah, and percent of charge, with the percentage of charge being estimated via a proprietary algorithm. This charger is compatible with worldwide power, supporting 100-240 VAC or 12 VDC car power with an optional power cble. - Compatible Batteries
- Sony and non-OEM
NP-FM50
NP-FM500H
NP-FM55H
NP-FM70
NP-FM90
NP-FM91
NP-QM71
NP-QM71D
NP-QM91
NP-QM91D batteries - A built-in test and discharge module (TDM), provides more accurate information about the battery on your charger's LCD
- The included external AC adapter is specifically made for the charger, do not use other adapters in its place. Replacement AC adapters are available
- The AC adapter supports worldwide power standards

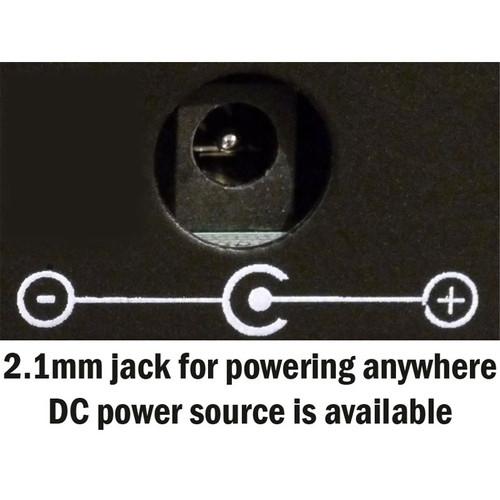

- An optional DC Car Power Cord (DE_CAR-12) enables powering the charger from your car with a 12 VDC lighter outlet

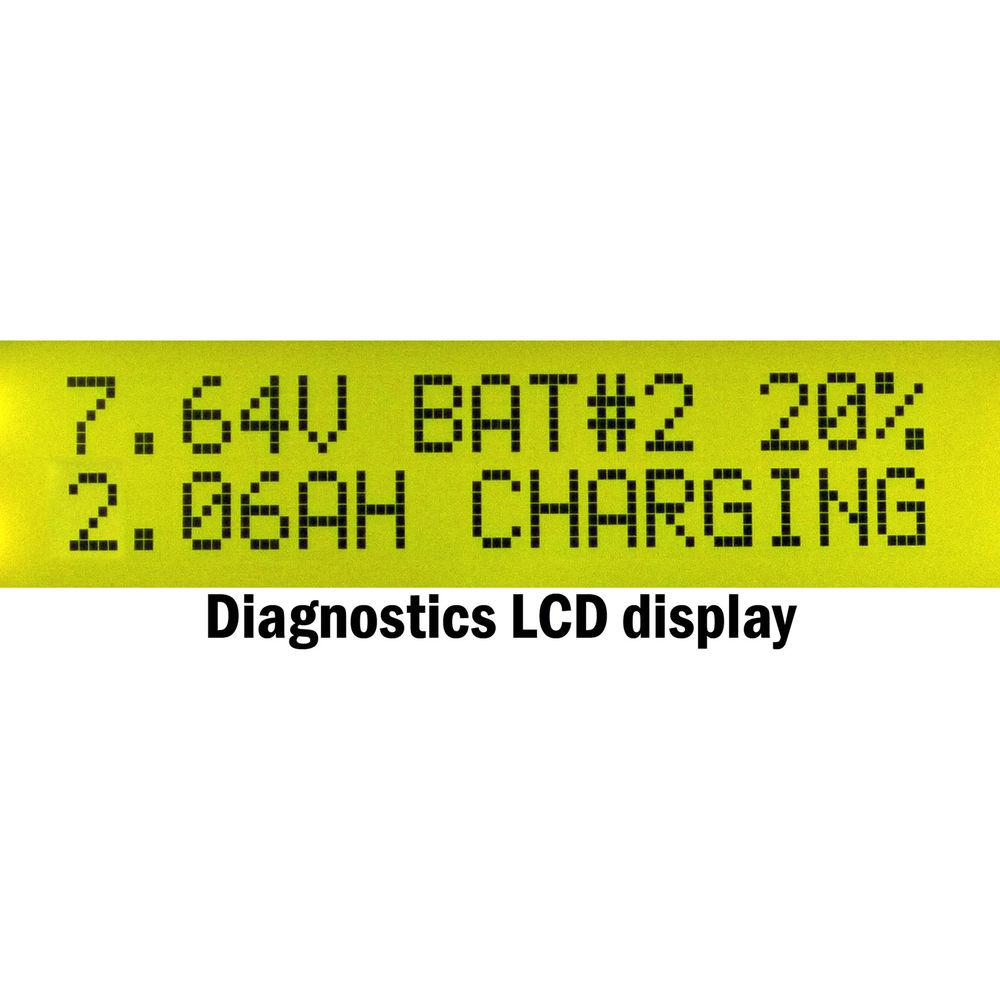

- The charger features an integrated LCD screen that displays the battery's volts, Ah (as computed by the charger fuel gauge), and the battery capacity (if fully discharged before insertion).
In the Box Dolgin Engineering TC400 Four Position Battery Charger and TDM for Sony NP-FM500H AC Adapter for TC400/TC40/TC200-i Battery Chargers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering TC400 Four Position Battery Charger and TDM for Sony NP-FM500H in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDolgin Engineering TC400 Specs | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Number of Battery Bays | 4 | | Multi-Bay Charging Modes | Simultaneous | | Indicator | LCD Display | | Dimensions (W x H x D) | 8.5 x 6.5 x 2.5" / 21.6 x 16.5 x 6.3 cm Excluding AC Adapter | | Weight | 4 lb / 1.81 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
