Product description - Fast 2x and 4x battery chargers

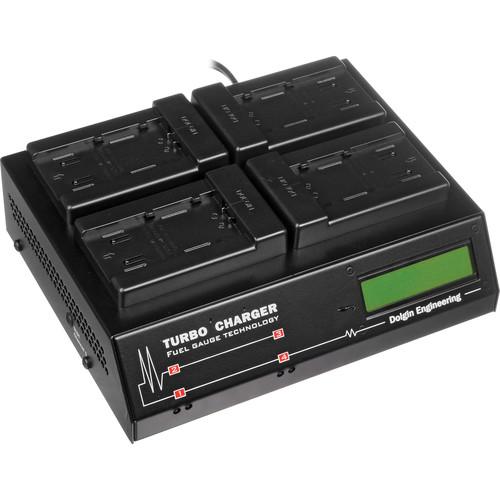

The TC400-PAN-U from Dolgin Engineering features interchangeable battery plates. This allows you to swap out battery plates instead of having to replace the entire charger should you change camera/battery systems. You can also swap out plates to support up to four different battery types. This version of the charger supports Panasonic and third-party VW-VBD58, AG-VBR59P, AG-VBR89G, AG-VBR118G, CGR-D54, and CGA-D54 batteries. These batteries are used with Panasonic's DVX200, PX270, HPX170, and HVX200 cameras. Five different battery plates are compatible, supporting a wide variety of DV batteries between them, and they can be mixed together at the same time. (Please see the Accessories section to view the battery plates.)

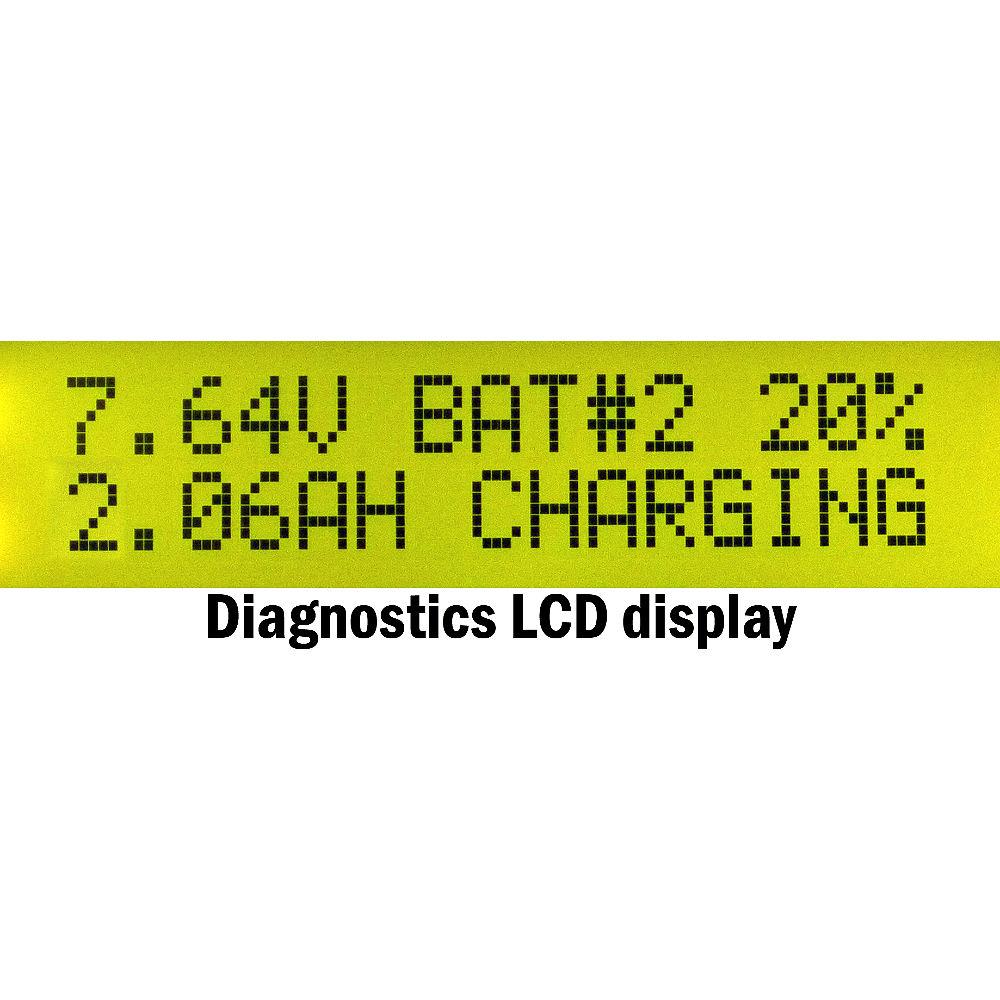

The TC400 has an LCD screen on the front panel that displays charge status in volts, amp hours, and percentage of charge that's estimated using a proprietary algorithm.
The TC400 has fully independent channels and deliver simultaneous charging to all four batteries. Based on a capacity of 5600mAh, this particular model delivers a complete charge to a single battery or up to four batteries in approximately 3.5 hours.
The charger comes with a U.S. power cord and supports worldwide power input via optional plug adapters. - Compatible Batteries
-
- VW-VBD58
- AG-VBR59P
- AG-VBR89G
- AG-VBR118G
- CGR-D54
- CGA-D54
- Universal Charger
-
- Responding to numerous user requests, Dolgin Engineering has built a charger that allows you to swap battery plates in the field without a technician, and does not require that the charger be sent in for service when swapping plates.
- This allows you to swap out plates and charge a different type of battery if you need.
- You can even mix plates of different batteries on the same charger, enabling charging up to four different types of batteries on one charger.
- This makes the universal charger a great choice for owner/operators that utilize more than one type of battery.
- Battery plates are available for:
- L-series (NP-F)
- CGR-D54
- BP-970 series
- VW-VBG6
In the Box Dolgin Engineering TC400 Four-Position Simultaneous Battery Charger with Interchangeable Plates (Panasonic VBD58, VBR118G, VBR89G, VBR59P, and D54) US Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dolgin Engineering TC400 Four-Position Simultaneous Battery Charger with Interchangeable Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDolgin Engineering TC400-PAN-U Specs | Type of Charging | Simultaneous | | Charge Time | Approx. 3.5 hours per channel/all four channels based on 5600 mAh capacity | | Power Requirements | 100-240 VAC at 50/60 Hz | | Dimensions | 8.4 x 2.5 x 6.6" (21.3 x 6.4 x 16.8 cm) | | Weight | 4 lb (1.8 kg) |
