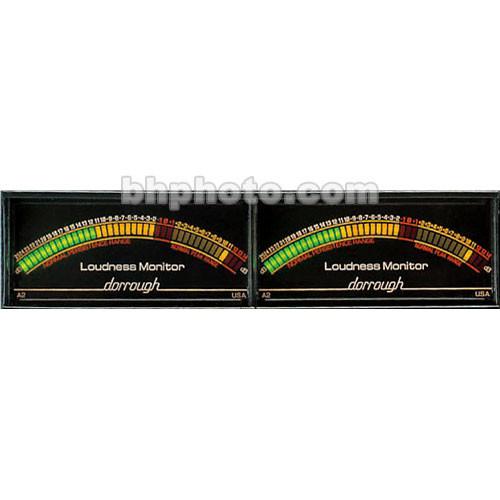

Product description The Dorrough 12-A Analog Loudness Meter +14dB is a dual version of the single-channel Dorrough 10-A loudness monitor. The mechanism provides access phase correlation, peak hold, sum/diff, and reference mode allowing 0 reference setting to .1dB accuracy, directly or with the optional remote control.It has a built-in power cord. Rack mounting is required. Dorrough rack adapters for the model 12-A are available with cutouts for either single or double meters. Both are 2RU high and 19" wide. - Actual Energy Display
- Dorrough Loudness Meters display actual energy content of the program material, regardless of frequency, while still indicating the peak amplitude of the complex audio signal. This feature allows all program material to be adjusted for equal perceived loudness while protecting the peak of the waveform.
- Dual Meters
- With these easy to read monitors you can view two channels or projects simultaneously, side-by-side. They are made to install easily to a custom console or with optional rack mounts. Dorrough rack adapters for the model 12-A are available with cutouts for either single or double meters. Both are 2RU high and 19" wide.
- Peak and Average Level Metering
- The 10-A, like all Dorrough loudness meters, simultaneously displays peak and average. The relative difference, in dB, between these two ballistics is derived from the integration time of the persistence scale.
- Right and Left In puts for Stereo Mixing
- With one instrument, the operator can easily see the stereo mix and avoid classic in-phase/out-of-phase problems as well as center channel buildup causing a mix to seem louder. This is especially important in preparing stereo program material for broadcast, while still being able to maintain monaural compatibility.
In the Box Dorrough 12-A Analog Loudness Meter +14dB 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dorrough 12-A Analog Loudness Meter 14dB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDorrough 12-A Specs | Input Impedance | 20k Ohm balanced, 10k Ohm single-ended, +/- 2% | | Common Mode Rejection Ratio | 80 dB at 60 Hz, 60 dB at 20 kHz (balanced mode) | | Input Sensitivity | -10 dB for full-scale display | | Maximum Input Level | +24 dB before clipping | | Signal Path Bandwidth | 10 Hz - 25 kHz, +/- .25 dB | | Signal Path Distortion | Less than 1% THD at 1 kHz, +24 dB input | | Sum Error | Less than 0.1 dB at 1 kHz | | Difference Error | Less than 0.1 dB at 1 kHz | | Display Resolution | Less than 0.1 dB at 1 kHz | | Step Size Error | +/- 0.25 dB | | Absolute Error | Full Scale -39 dBu: +/- 0.25 dB model A,B,C | | Drift | +/- 0.25 dB | | Average Time Constant | 600 mS, +/- 6% | | Peak Acquisition Period | 10 uS, to full-scale, sine input 25kHz | | Peak Attack Period | Virtually Instantaneous | | Peak Decay Period | 180 mS, from full-scale to all LEDs off (models A, B, C) | | Display Update Rate | Approximately 10 mS | | Display Duty Cycle | Display Time, AVERAGE, PEAK HOLD - 75% Display Time, PEAK - 100% | | Power Supply Input Range | 117/237 VAC RMS, -20% to +10%, 50-60 Hz | | Calibration Controls | None Needed | | User Controls | Each Meter: Left/Right input sensitivity Option DIP Switch A) Peak Auto [ON] B) Difference Mode [ON/OFF] C) Over Level Alarm [ENABLE] D) Under Level Alarm [ENABLE] E) Auto ARMP | | User Port | Each Meter: DB-9 Connector A) Alarm relay closure contacts 1 form C, 1A, 30V AC or DC B) Mode control switch (user supplied) C) PEAK function switch (user supplied) | | Dimensions (WxDxH) | 8.6 x 3.0 x 2.0" (in) (3.4 x 1.2 x 0.8cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 21.0 x 10.0 x 5.0" |
