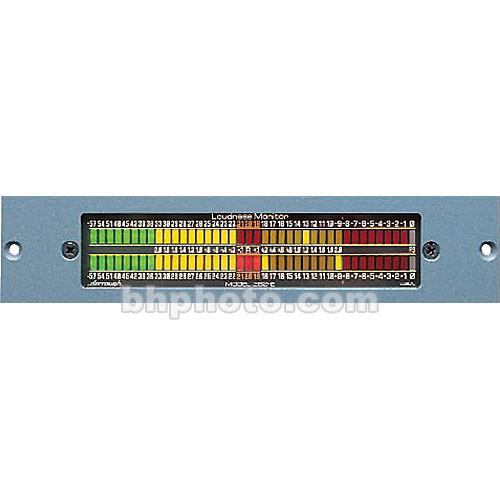

Product description The Dorrough 280-DE Digital Double Scale Loudness Meter -57dB 32-96k is a two channel digital loudness meter in AES/EBU linear style, designed for insertion directly into the digital data-stream. It has a dual-channel, horizontal linear display, with -57dB headroom, and an external power supply. This model is designed for console mounting, rackmounting, or custom installations. It is built with XLR, DIP switch assignments, and mini DIN pin out. A mating connector is supplied, prewired to the power pack, also supplied. Wired remote control option is also available. - Straight Line Display
- The 280 Series is functionally identical to the 40 series, except the 280s have a straight line scale designed for applications with limited horizontal space. These easy to read meters are made to install easily to custom console or with optional rack mounts.
- Dual Channel Meter
- These meters are ideal for situations where many channels must be monitored in limited space, such as a mobile news-van or crowded control room. The close, side-by-side positioning of the two monitored channels facilitates critical comparisons.
- Peak and Average Metering
- The Dorrough 280 digital meters feature both peak and average level display simultaneously, over indication, and selectable peak hold. They conform to all AES 3 (1992) specifications, and are compatible to 96ks.
- Right and Left Inputs for Stereo Mixing
- With one instrument, the operator can easily see the stereo mix and avoid classic in-phase/out-of-phase problems as well as center channel buildup causing a mix to seem louder. This is especially important in preparing stereo program material for broadcast, while still being able to maintain monaural compatibility.
In the Box Dorrough 280-DE Digital Loudness Meter -57dB 32-96ks Power Adapter A Mating Connector, Prewired to the Power Pack 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dorrough 280-DE Digital Loudness Meter -57dB 32-96ks in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDorrough 280-DE Specs Input Impedance | 20k Ohm balanced, 10k Ohm single-ended, ± 2% | Common Mode Rejection Ratio | 80dB at 60Hz, 60dB at 20KHz (balanced mode) | Input Sensitivity | -10dB for full-scale display | Maximum Input Level | +24dB before clipping | Signal Path Bandwidth | 10Hz - 25KHz, ±.25dB | Signal Path Distortion | Less than 1% THD at 1KHz, +24dB input | Sum Error | Less than 0.1dB at 1KHz | Difference Error | Less than 0.1dB at 1KHz | Display Resolution | 40 LEDs, 1dB/LED except model 60D, ± 0.25dB. | Step Size Error | ±0.25dB | Absolute Error | Full Scale -39dBu: ±0.25dB model | Drift | ±0.25dB | Average Time Constant | 600mS, ±6% | Peak Acquisition Period | 10uS, to full-scale, sine input 25KHz | Peak Attack Period | Virtually Instantaneous | Peak Decay Period | 180mS, from full-scale to all LEDs off | Display Update Rate | Approximately 10mS | Display Duty Cycle | Display Time, AVERAGE, PEAK HOLD - 75%; Display Time, PEAK - 100% | Power Supply Input Range | 117/237VAC RMS, -20% to +10%, 50-60Hz | Calibration Controls | None needed | User Controls | Left/Right input sensitivity Option DIP Switch
A) Peak Auto [ON]
B) Difference Mode [ON/OFF]
C) Over Level Alarm [ENABLE]
D) Under Level Alarm [ENABLE]
E) Auto ARMP | User Port | DB-9 Connector
A) Alarm relay closure contacts 1 form C, 1A, 30V AC or DC
B) Mode control switch (user supplied)
C) PEAK function switch (user supplied) | Dimensions (WxDxH) | 5.0 x 7.0 x 1.5" (2.0 x 2.8 x 0.6cm) | Weight | Not specified by the manufacturer | | Package Weight | 2.25 lb | Box Dimensions (LxWxH) | 22.0 x 10.5 x 4.5" |
