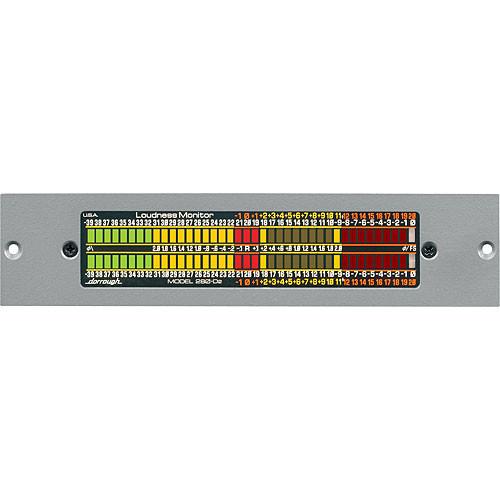

Product description The Dorrough 280D2 Digital Double Scale Loudness Meter-39dB 32-96k is a two channel digital loudness meter in AES/EBU linear style, designed for insertion directly into the digital data-stream. It has a dual-channel horizontal linear display with 39dB headroom, and an external power supply.This model is designed for console mounting, rackmounting, or custom installations. It is built with XLR, DIP switch assignments, and mini DIN pin out. A mating connector prewired to the power pack is also supplied. A wired remote control option is also available. - Straight Line Display
- The 280 Series is functionally identical to the 40 series, except that the 280s have a straight-line scale designed for applications with limited horizontal space. These easy-to-read meters are made to install easily in a custom console or with optional rack mounts.
- Dual Channel Meter
- These meters are ideal for situations where many channels must be monitored in limited space, such as a mobile news van or crowded control room. The close side-by-side positioning of the two monitored channels facilitates critical comparisons.
- Peak and Average Metering
- The Dorrough 280 digital meters feature both peak and average level display simultaneously, over indication, and selectable peak hold. They conform to all AES 3 (1992) specifications, and are compatible to 96ks.
- Right and Left Inputs for Stereo Mixing
- With one instrument, the operator can easily see the stereo mix and avoid classic in-phase/out-of-phase problems as well as center channel buildup that causes a mix to seem louder. This is especially important in preparing stereo program material for broadcast, while still being able to maintain monaural compatibility.
In the Box Dorrough 280D2 Digital Double Scale Loudness Meter-39dB 32-96k Power Adapter A Mating Connector, Prewired to the Power Pack 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dorrough 280D2 Digital Double Scale Loudness Meter-39dB 32-96k in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDorrough 280-D2 Specs | Input Impedance | 20k Ohm balanced, 10k Ohm single-ended, +/- 2% | | Common Mode Rejection Ratio | 80 dB at 60 Hz, 60 dB at 20 kHz (balanced mode) | | Input Sensitivity | -10 dB for full-scale display | | Maximum Input Level | +24 dB before clipping | | Signal Path Bandwidth | 10 Hz - 25 kHz, +/- .25 dB | | Signal Path Distortion | Less than 1% THD at 1 kHz, +24 dB input | | Sum Error | Less than 0.1 dB at 1 kHz | | Difference Error | Less than 0.1 dB at 1 kHz | | Display Resolution | 40 LEDs, 1 dB/LED except model 60D, +/- 0.25 dB. | | Step Size Error | +/- 0.25 dB | | Absolute Error | Full Scale -39 dBu: +/- 0.25 dB model | | Drift | +/- 0.25 dB | | Average Time Constant | 600 mS, +/- 6% | | Peak Acquisition Period | 10 uS, to full-scale, sine input 25kHz | | Peak Attack Period | Virtually Instantaneous | | Peak Decay Period | 180 mS, from full-scale to all LEDs off | | Display Update Rate | Approximately 10 mS | | Display Duty Cycle | Display Time, AVERAGE, PEAK HOLD - 75%; Display Time, PEAK - 100% | | Power Supply Input Range | 117/237 VAC RMS, -20% to +10%, 50-60 Hz | | Calibration Controls | None needed | | User Controls | Left/Right input sensitivity Option DIP Switch
A) Peak Auto [ON]
B) Difference Mode [ON/OFF]
C) Over Level Alarm [ENABLE]
D) Under Level Alarm [ENABLE]
E) Auto ARMP | | User Port | DB-9 Connector
A) Alarm relay closure contacts 1 form C, 1A, 30V AC or DC
B) Mode control switch (user supplied)
C) PEAK function switch (user supplied) | | Dimensions (WxDxH) | 5.0 x 7.0 x 1.5" (in.) (2.0 x 2.8 x 0.6cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
