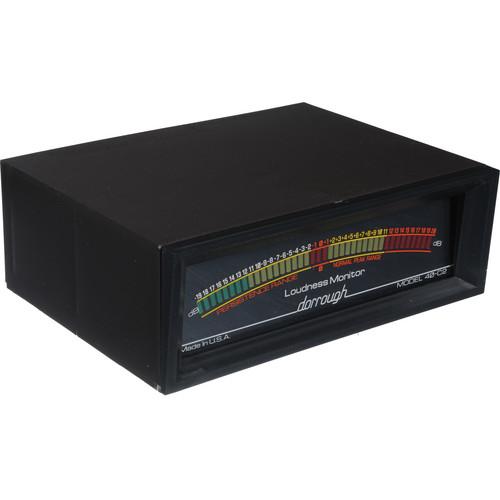

Product description The Dorrough 40-C is a professional analog loudness meter, designed for modern stereo recording and broadcast requirements, and offering simultaneous average and peak program display, with separate ballistics and lightning-fast response. This meter is equipped with a 40-LED bar graph, allowing for 20dB of headroom in 1dB steps of resolution per LED. - Rack or console mounted Analog Loudness Meter with dual dedicated ballistics for simultaneous peak and average readout
- Microchip processor with accuracy of oscilloscope, ultra-fast response time of 600ms average, virtually instantaneous peak for seamless continuous display of peak/average relationship
- Individual left and right XLR inputs for stereo mixing applications, +4 dB factory-calibrated
- Display with 40 LED's providing 1dB resolution per LED
- Proprietary "C" scale with 20dB of headroom in 1dB steps, identical to AES/EBU digital standard
- XLR, 6 DIP switches for function assignments, mini 8-pin DIN port out for access to alarm relays, meter mode functions, and peak hold modes, standard with unit
In the Box Dorrough 40-C - Horizontal Rackmount Analog Loudness Meter with "C" Scale Option Owner's Manual 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dorrough 40-C - Horizontal Rackmount Analog Loudness Meter with "C" Scale Option in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDorrough 40-C Specs | Input Impedance | 20 kOhm balanced
10 kOhm single-ended, +/- 2% | | Common Mode Rejection Ratio | 80 dB at 60 Hz
60 dB at 20 kHz (balanced mode) | | Input Sensitivity | -10 dB for full-scale display | | Maximum Input Level | +24 dB before clipping | | Signal Path Bandwidth | 10 Hz - 25 kHz, +/- .25 dB | | Signal Path Distortion | >1% THD at 1 kHz, +24 dB input | | Sum Error | >0.1 dB at 1 kHz | | Difference Error | >0.1 dB at 1 kHz | | Display Resolution | 40 LEDs, 1 dB/LED | | Step Size Error | +/- 0.25 dB | | Absolute Error | +/- 0.25 dB (Full Scale -39 dBu) | | Drift | +/- 0.25 dB | | Average Time Constant | 600 mS, +/- 6% | | Peak Acquisition Period | 10 uS, to full-scale, sine input 25kHz | | Peak Attack Period | Virtually Instantaneous | | Peak Decay Period | 180 mS, from full-scale to all LEDs off | | Display Update Rate | Approximately 10 mS | | Display Duty Cycle | Display Time, AVERAGE, PEAK HOLD - 75%
Display Time, PEAK - 100% | | Power Supply Input Range | 117/237 VAC RMS, -20% to +10%, 50-60 Hz | | Calibration Controls | None needed | | User Controls | Left/Right input sensitivity
Option DIP Switch:
A) Peak Auto [ON]
B) Difference Mode [ON/OFF]
C) Over Level Alarm [ENABLE]
D) Under Level Alarm [ENABLE]
E) Auto ARMP | | User Port | DB-9 Connector:
A) Alarm relay closure contacts,1 form C, 1A, 30V AC or DC
B) Mode control switch (user supplied)
C) PEAK function switch (user supplied) | | Dimensions (WxDxH) | 8.5 x 6.5 x 2.8" (215.9 x 165.1 x 71.1mm) | | Weight | 2.3 lb (1.04 kg) | | | | Package Weight | 3.08 lb | | Box Dimensions (LxWxH) | 11.6 x 8.8 x 5.6" |
