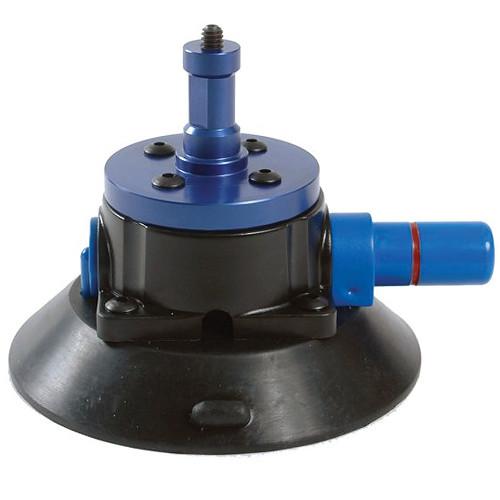

User Manual for Dot Line 4.5" Vacuum Cup with Flange & Spigot Click to enlarge the picture
Contents of the user manual for the Dot Line 4.5" Vacuum Cup with
- Product category: Camera & Camcorder Mounts Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line Camera & Camcorder Mounts
|
User manual for the Dot Line 4.5" Vacuum Cup with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|
Product description The Dot Line 4.5" Vacuum Cup with Flange & Spigot securely attaches to car windows, doors, hoods, and other smooth surfaces and supports camera/accessory loads up to 50 lb. It uses a push-pump mechanism to pump the air out between the cup and mounting surface, and a red line imprinted on the pump lets you know whether any air is left or has seeped back in. The cup is 4.5" in diameter and features a flange and spigot assembly with a 1/4"-20 post fixed on top. The post supports cameras, lights, mics, and other accessories, ideally via articulating arms and ball heads.
The pump requires just several pushes to get all the air out. With each push, a part of the pump gets depressed inside, with less of it protruding on the outside. The point at which the red line on the pump is also depressed signifies that all air is completely pumped out. When the red line reappears, it indicates that some air has entered back in and simply needs to be pumped out again. Two nibs on the edges of the cup let you easily release the vacuum grip. A protective cap is included for avoiding scratches during storage to maintain suction strength. - Features
-
- Securely grips car windows, doors, hoods, and other smooth surfaces
- Push-pump suction mechanism enables 50 lb payload
- Features flange and spigot with a 1/4"-20 post for articulating arms and ball heads
- Red line appears/disappears to signify suction strength
- Includes a protective cap for avoiding scratches during storage
UPC: 034447028945 In the Box Dot Line 4.5" Vacuum Cup with Flange & Spigot Protective Cap 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line 4.5" Vacuum Cup with Flange & Spigot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line DL-0955 Specs | Weight Capacity | 50 lb (22.7 kg) | | Cup Diameter | 4.5" (11.4 cm) | | Spigot Diameter | 0.62" (1.6 cm) | | Mount Type | 1/4"-20 | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.906 x 5.354 x 4.646" |
