User Manual for Dot Line Double Handle Rig with Shoulder Pad Click to enlarge the picture
Contents of the user manual for the Dot Line Double Handle Rig with
- Product category: DSLR Video Supports & Rigs Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line DSLR Video Supports & Rigs
 |
User manual for the Dot Line Double Handle Rig with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|

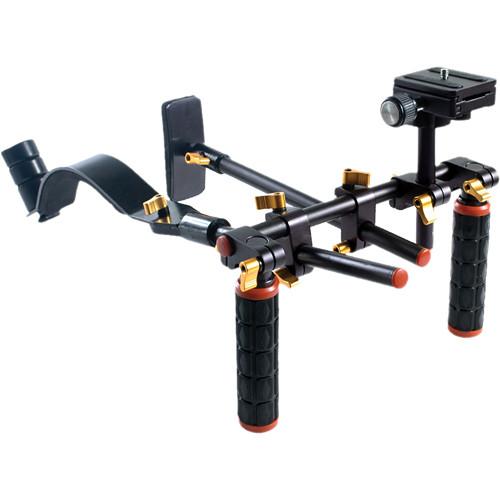

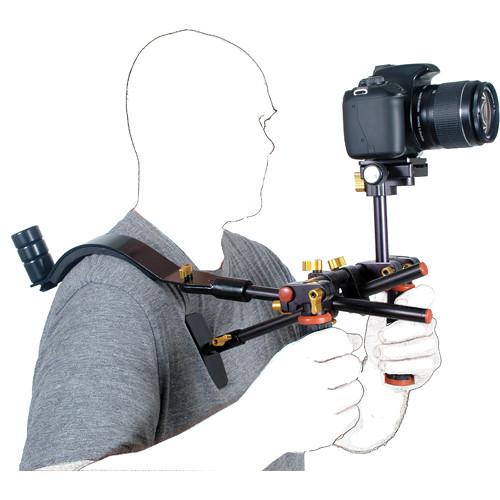

Product description The Dot Line Double Handle Rig with Shoulder Pad is an affordable shoulder rig for DSLRs and other mid-size/small cameras. It features handles, a camera platform, a shoulder pad, counterweights, and a chest pad for balancing the rig against your chest.

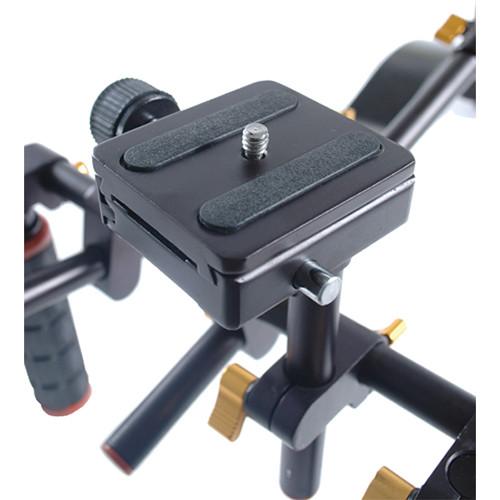

The handles have a grip design and are adjustable forward and backward. The chest pad features a comfort cushion and is swivel adjustable on a ball-joint mechanism. It tightens into desired positions at the turn of a knob. The camera platform can be raised and lowered approximately 6". A quick-release plate with a 1/4"-20 stud is included and tightens into place at the turn of a dial, but releasing it requires also depressing a button on the rear. Three counterweights totaling to 1.4 lb are included and secure on to the shoulder pad. The rig uses 15mm rods and most of the components are connected by rod clamps. - Features
-
- Affordable shoulder rig for mid-size/small cameras
- Forward/backward adjustable grip handles
- Swivel adjustable balancing chest pad
- Height adjustable camera platform
- Quick-release plate with a 1/4"-20 stud
- Three counterweights totaling to 1.4 lb
UPC: 034447030450 In the Box Dot Line Double Handle Rig with Shoulder Pad 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line Double Handle Rig with Shoulder Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line DL-V2 Specs | Rod Type | 15 mm | | Mount Type | 1/4"-20 | | Counterweights | 2x 0.4 lb (184 g)
1x 0.6 lb (272 g)
Total: 1.4 lb (0.64 kg) | | Weight | 4.1 lb (1.9 kg) including counterweights | | | | Package Weight | 4.73 lb | | Box Dimensions (LxWxH) | 14.75 x 10.9 x 4.35" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
