User Manual for Dot Line GearBox 2 Accessory Cage Click to enlarge the picture
Contents of the user manual for the Dot Line GearBox 2 Accessory Cage
- Product category: DSLR Video Supports & Rigs Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line DSLR Video Supports & Rigs
|
User manual for the Dot Line GearBox 2 Accessory Cage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|

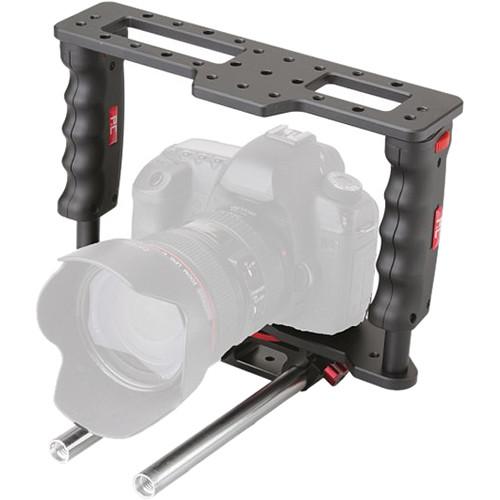

Product description The Dot Line GearBox 2 Accessory Cage is for small cameras and DSLRs and can be handheld or tripod mounted. An adapter holds two 15mm rods at the bottom of the cage and features three 1/4" threads underneath for mounting tripods. The adapter attaches to the bottom by four included screws. The rods are 8" long and female-threaded on both ends for further extension. You can attach a follow focus and matte box onto the rods. The cage itself is made up of a cheese plate on top, one on the bottom, and rubber-grip handles on the sides.
The top plate has fourteen 1/4" accessory mounting threads and nine pass-through holes. The bottom plate has five 1/4" threads and also has a cutout for the battery or memory card door that most cameras have on their bottoms -- accordingly, you won't need to remove your camera from the cage to change a battery or card. On the top surface of this bottom plate, where you would attach your camera, you'll find two non-slip pads that will better support the bottom of the camera. A 1/4" screw with a red knob on one end comes included for attaching the camera. The screw fastens from underneath the cage. UPC: 609132966477 In the Box Dot Line GearBox 2 Accessory Cage 2 x 8" 15mm Rods 1/4" Camera Screw Knob Set of Screws for Rod Adapter Allen Wrench 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line GearBox 2 Accessory Cage in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line CS-GB2 Specs | Rod Length | 8" (20 cm) | | Material | Metal black anodized CNC plates | | Weight | 2 lb (.9 kg) | | | | Package Weight | 2.665 lb | | Box Dimensions (LxWxH) | 11.4 x 7.3 x 3.45" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
