User Manual for Dot Line SMARTbracket Camera Mount Click to enlarge the picture
Contents of the user manual for the Dot Line SMARTbracket Camera Mount
- Product category: Camera & Camcorder Mounts Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line Camera & Camcorder Mounts
|
User manual for the Dot Line SMARTbracket Camera Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|

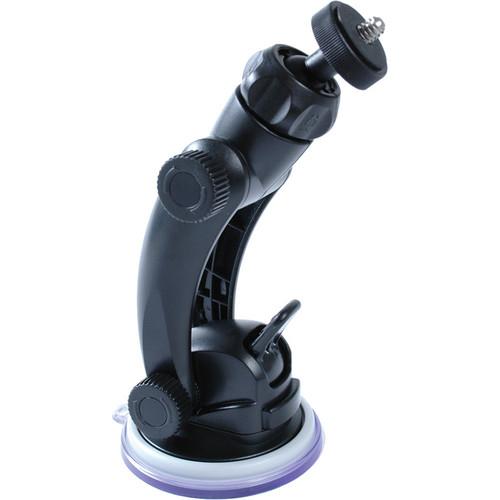

Product description The SMARTbracket Camera Mount from Dot Line acts as a temporary support for cameras to attach to glass or other smooth surfaces via a 2.5" (63.5 mm) suction cup. Adjustment of the camera angle is controlled via a long pivot arm, a short pivot arm and a ball joint allowing 360° rotation. The maximum supported weight for this bracket is 15 ounces (425.2 g). - The bracket mount is designed as a temporary support for compact cameras to glass or other smooth surfaces
- Features a 2.5" (63.5 mm) suction cup that is activated via a single lever. Simply push the lever till it clicks and the mount is in place
- Adjustment of the camera angle is controlled via a long pivot arm, a short pivot arm and a ball joint allowing 360° rotation. Each pivot arm is securely locked into place via a saw-tooth design that assures exact placement without drift. The articulation of the pivot arms is 180° and the ball allows the camera to be rotated 360° with additional tilt adjustment
- Maximum weight support is 15 oz (425.2 g)
- It can also be used with the optional smartphone mount to support smart phones or GPS units
UPC: 646057130422 In the Box Dot Line SMARTbracket Camera Mount 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line SMARTbracket Camera Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line PHO-SC/0001 Specs | Rotation | 360° | | Pivot | Pivot arms is 180° | | Max Weight Load | 15 oz (425.2 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.8 x 4.4 x 1.8" |
Rating46% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
