User Manual for Dot Line SWIVI External Monitor for DSLR Click to enlarge the picture
Contents of the user manual for the Dot Line SWIVI External Monitor for
- Product category: On Camera Monitors Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line On Camera Monitors
 |
User manual for the Dot Line SWIVI External Monitor for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|

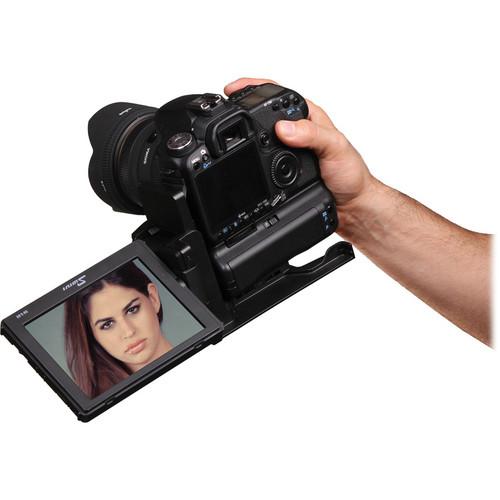

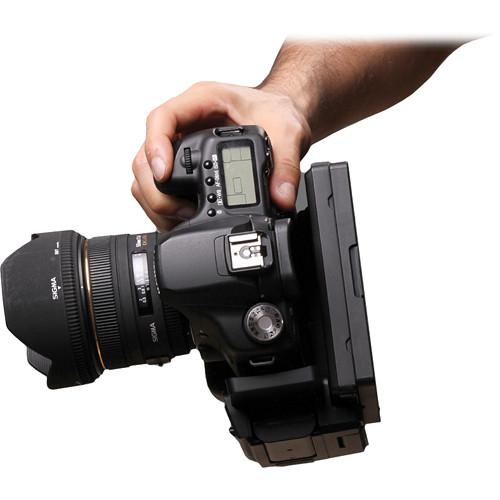

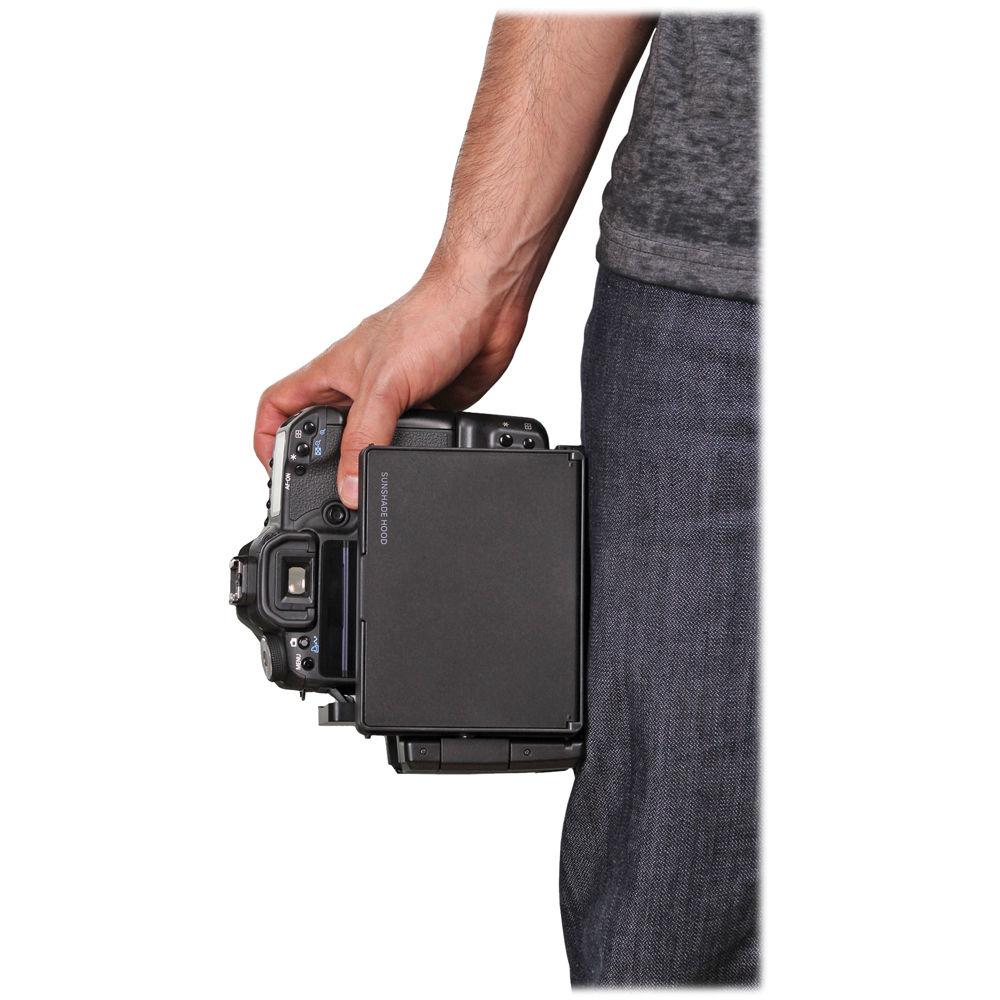

Product description Dot Line's SWIVI External Monitor for DSLR provides a large 5.6" diagonal LCD screen with an integrated design making it possible to attach it to a DSLR having an HDMI port and Live-View function, using the tripod socket. The monitor delivers a large, bright image on a screen that swings out up to 180° and will tilt as much as 270° for superb flexibility in viewing your images. A Peaking mode greatly enhances your ability to verify sharp focus for critical applications. There's also a Zoom In/Zoom Out function and stereo speakers. An included sunshade hood keeps unwanted reflections off the screen. The SWIVI operates on one Canon-type LP-E6 battery. - Large, external 5.6" diagonal LCD screen with an integrated design that makes it possible to be attached to a DSLR that has an HDMI port and Live-View function
- Screen swings out up to 180° and tilts up to 270° allowing the photographer to view what is being filmed without having to be directly behind the camera or at eye level.
- Peaking Mode to verify sharp focus
- Zoom In and Zoom Out functions as well as stereo speakers
- Operates on one Canon-type LP-E6 battery
In the Box Dot Line SWIVI External Monitor for DSLR Sunshade Hood LP-E6 Battery Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line SWIVI External Monitor for DSLR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line CS-SWIVI Specs | | | Display Size | 5.6" / 14.2 cm | | Screen Resolution | 800 x 600 | | Aspect Ratio | 4:3 | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 500:1 | | Image Controls | Focus Peaking | | | | Video | 1 x HDMI Type C Input
1 x HDMI Type A Output | | Audio | None | | Built-In Speaker | None | | Card Slot | None | | | | DC Input Power | 7.2 VDC | | Battery Type | 1 x LP-E6 | | Power Consumption | 3 W (Maximum) | | | | Operating Humidity | 10 to 90% | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 6.9 x 5.1 x 4.0" |
