User Manual for Dot Line Swivi Foldable LCD Viewfinder Click to enlarge the picture
Contents of the user manual for the Dot Line Swivi Foldable LCD Viewfinder
- Product category: LCD Hoods & Shades Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line LCD Hoods & Shades
 |
User manual for the Dot Line Swivi Foldable LCD Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|

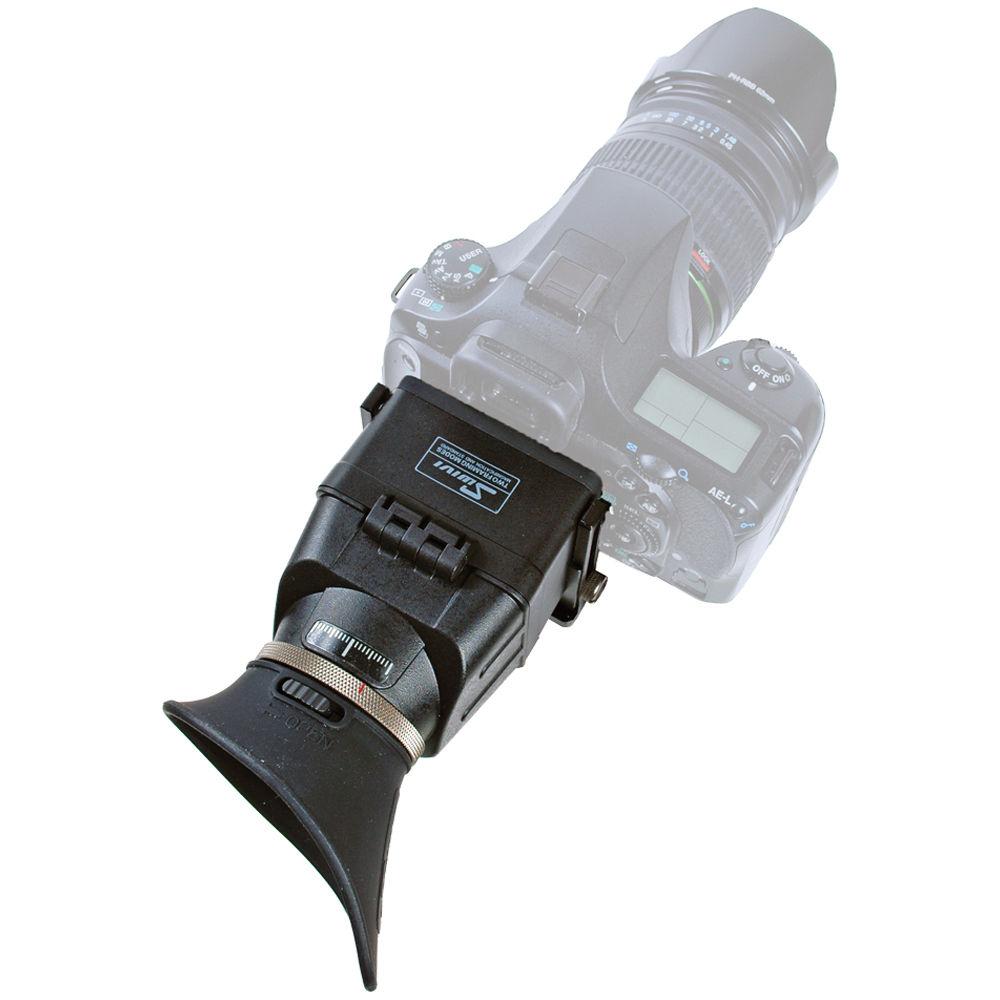

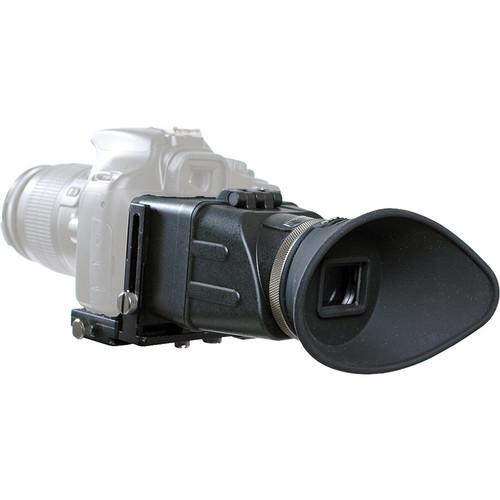

Product description The Swivi Foldable LCD Viewfinder from Dot Line is an LCD viewfinder loupe designed for clear and stable video shooting with a DSLR camera. It provides a focusable 3x magnified view of the LCD and offers a comfortable, lightproof, rubber eyecup with adjustable diopter as well as an internal manual shutter to protect the LCD from sunlight. The eyecup can be adjusted for the left or right eye and the entire eyepiece easily flips up to provide a hooded "Standard Mode" direct view of the LCD.A sturdy mounting plate attaches to the camera's tripod socket and is 3-way adjustable to fit most DSLRs. It is designed to fit a 3.0" LCD monitor with a 4:3 or 3:2 ratio. A rubber cushion protects the camera and the LCD screen. The mount is Arca-Swiss compatible to function as a quick release plate for easy mounting to and easy removal from an Arca-Swiss tripod head. It also provides three female 1/4"-20 threads for direct screw mounting to a tripod or other support device. The design of the mount allows the viewfinder to be quickly removed from the camera while the mount remains attached. - Provides a focusable 3x magnified view of the LCD monitor on a DSLR camera for stable and clear viewing when shooting video.

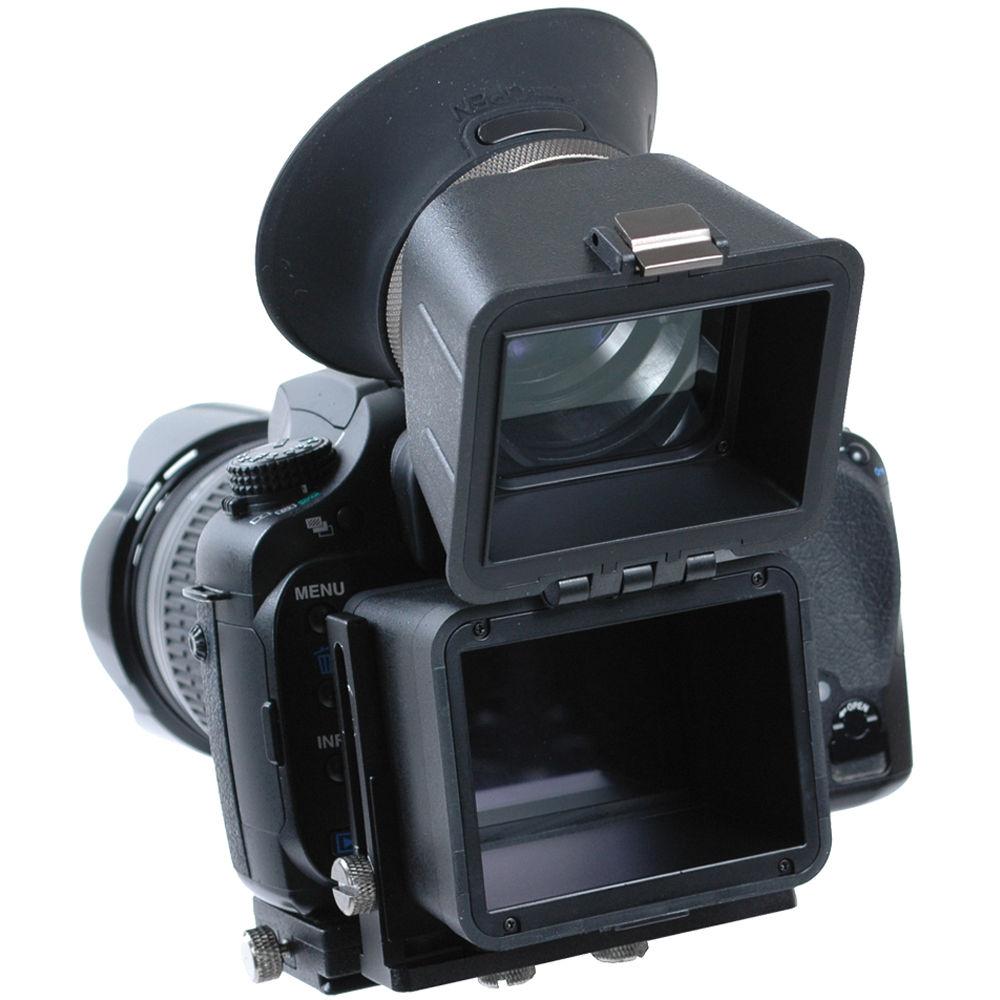

- Eyepiece flips up for a shaded, direct view of the LCD monitor.
- Fits flat or swivel-type 3.0" LCD monitors with a 4:3 or 3:2 ratio.
- A rubber cushion on the viewfinder protects the camera and LCD.
- Lightproof eyecup adjusts for left or right eye.

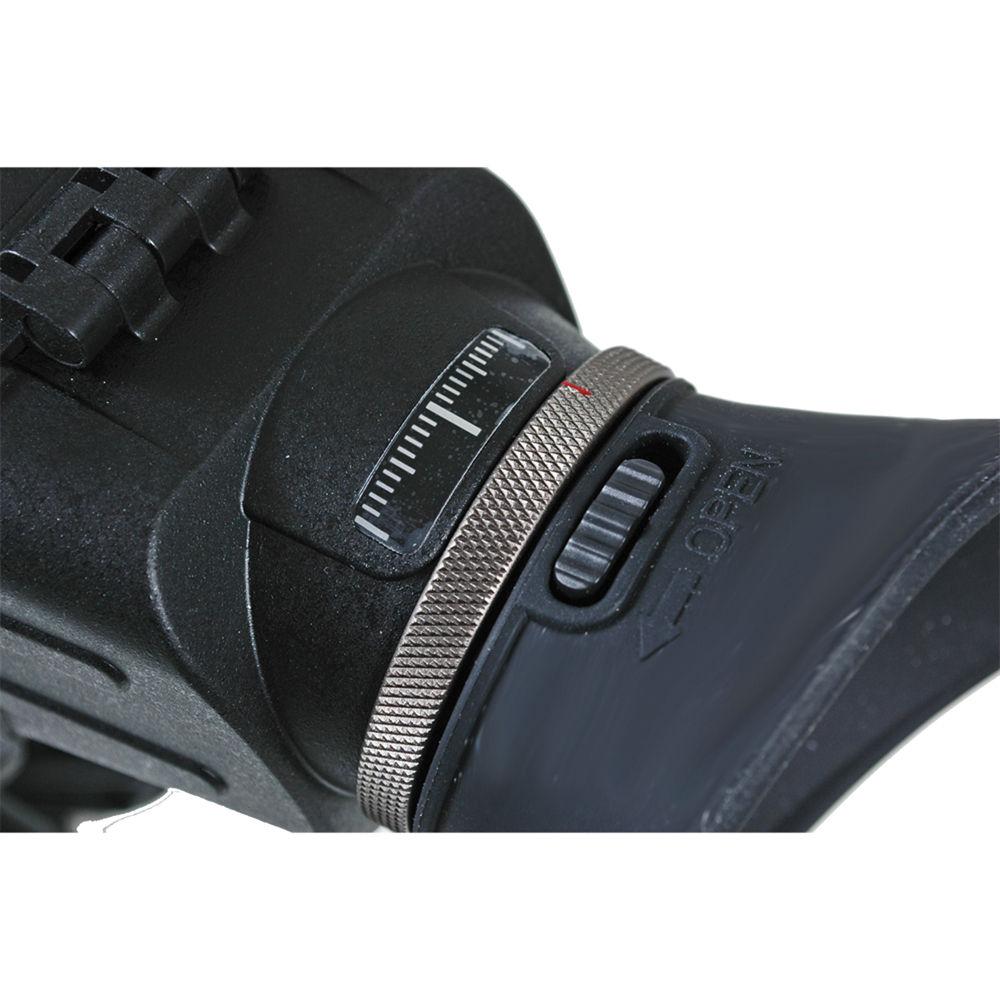

- Adjustable diopter and manual shutter

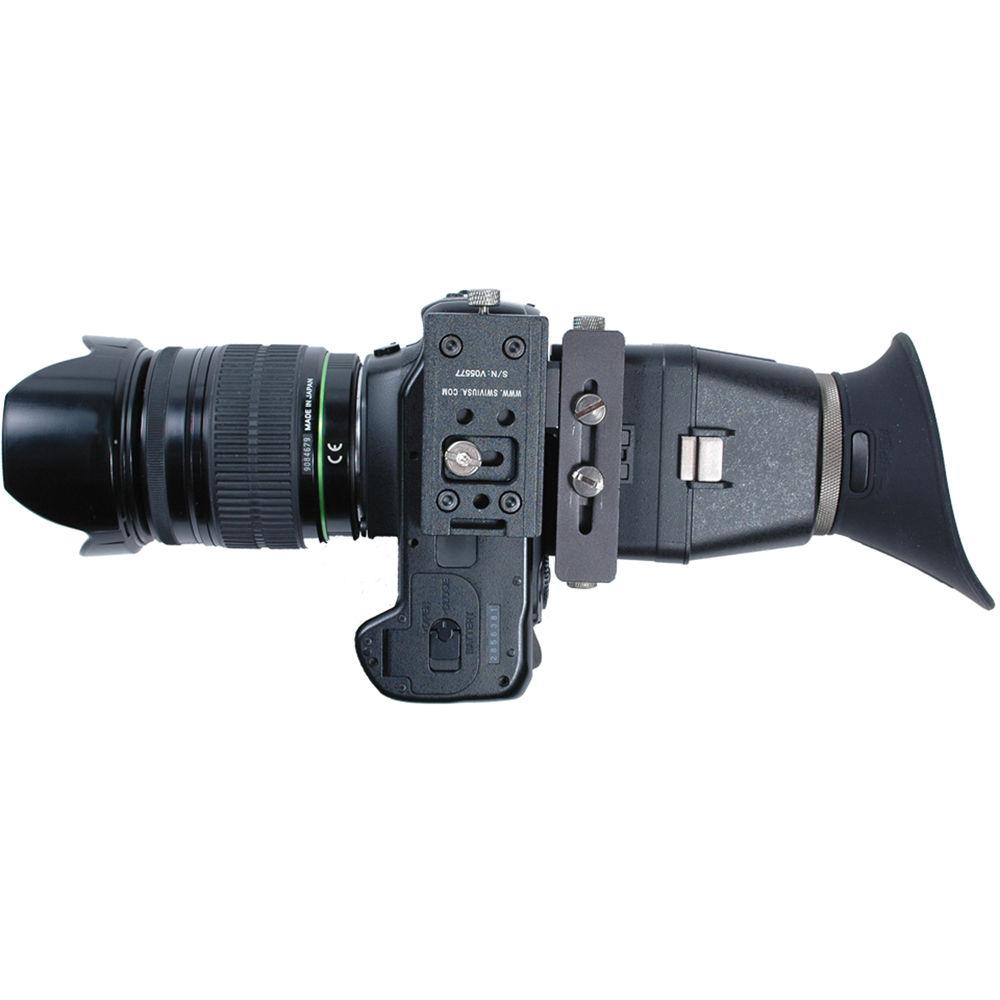

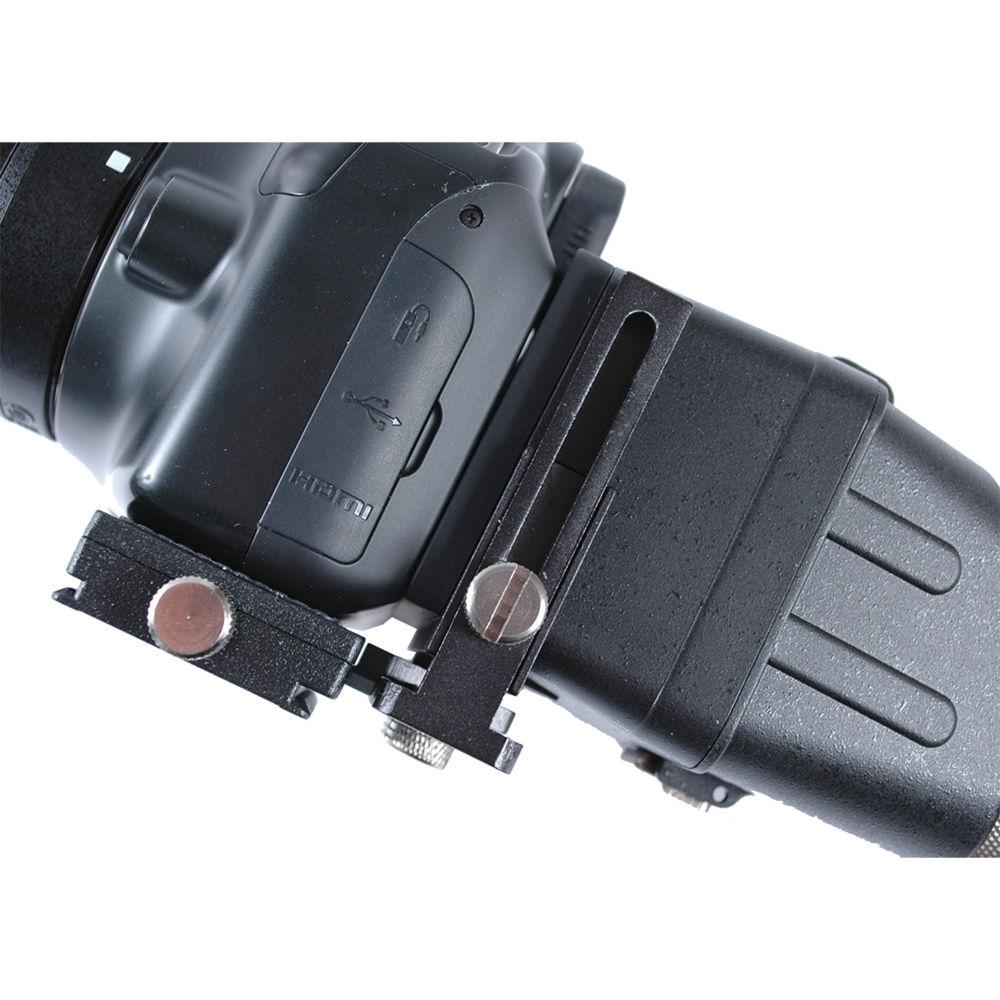

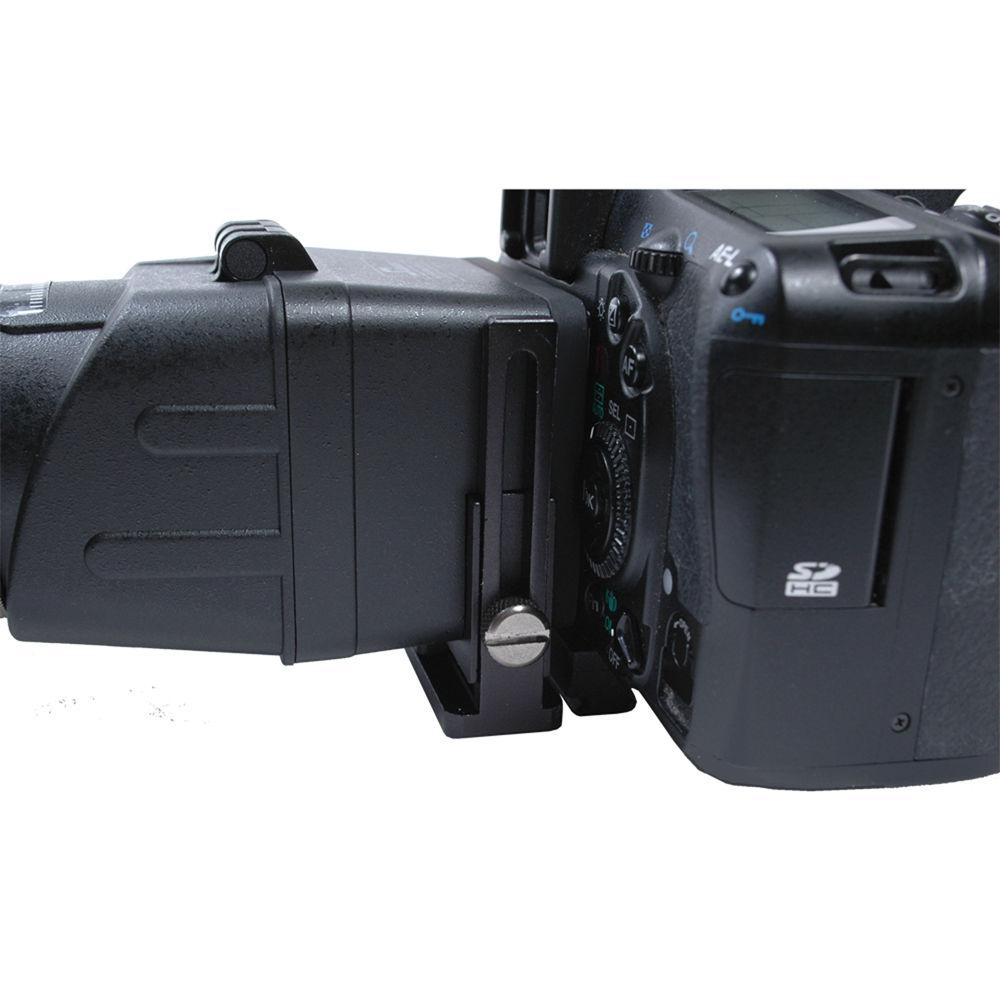

- Mounts to camera's tripod socket and is adjustable up/down, forward/backward, and left/right to fit most DSLR bodies.

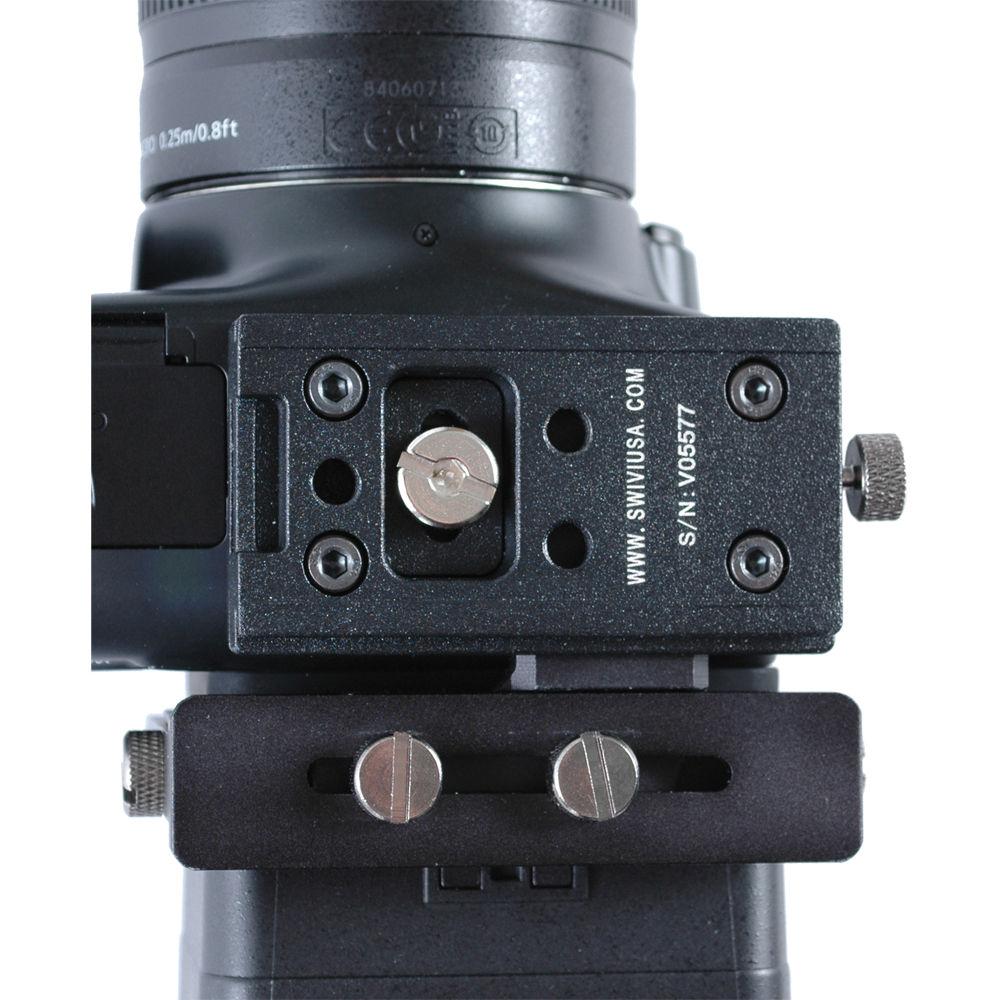

- Mount platform functions as an Arca-style quick release plate and features three female 1/4"-20 threads for placement on tripod or other support device.
In the Box Dot Line Swivi Foldable LCD Viewfinder Mounting Plate Mounting Screw 4 x Adjustment Screws Limited 1-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line Swivi Foldable LCD Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line CS-SWIVI/VF3 Specs | Magnification | 3x | | Compatible Monitors | 3.0" Flat or Swivel LCD Monitor | | Quick Release Plate | Arca-Swiss Type | | Eyecup Style | Rubber, Adjustable Left or Right Eye | | Mounting Screw Holes | 3x 1/4"-20 | | Weight | 1.05 lb (476 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.7 x 4.1 x 3.9" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 00 owners. Add your rating and experience with the product.
