User Manual for Dot Line V10 Rig Complete Click to enlarge the picture
Contents of the user manual for the Dot Line V10 Rig Complete
- Product category: DSLR Video Supports & Rigs Dot Line
- Brand: Dot Line
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dot Line DSLR Video Supports & Rigs
|
User manual for the Dot Line V10 Rig Complete contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dot Line product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dot Line user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dot Line product will considerably shorten its lifespan!
|

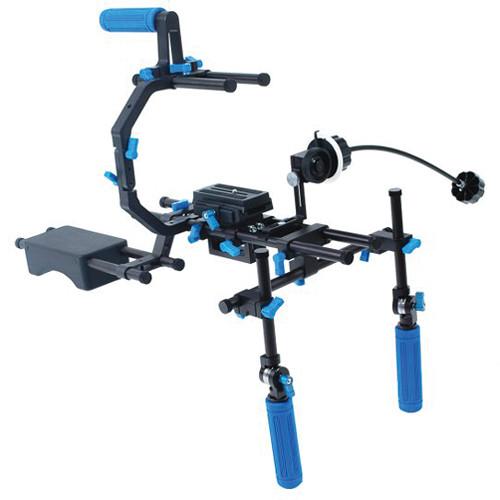

Product description The Dot Line V10 Rig Complete is an affordable, multi-component shoulder rig for DSLRs and other mid-size cameras. It includes a follow-focus, focus whip, side cage, adjustable grip handles, top carry handle, shoulder pad, quick release plate, and accessory mounting rods.
The follow focus features a standard, 0.8 gear pitch for DSLR/photo lenses and a beveled marking disk for marking focus stops. The focus whip, intended for an assistant to help pull focus, is 14.5" long and flexible. The camera platform is height-adjustable approximately an inch. A quick release plate with a 1/4"-20 mounting screw is included and slides into the camera platform. The grip handles are adjustable at the rod clamps and the rosette-type, sawtooth adapters securing them, allowing you to raise/lower them and adjust them forward/backward. The rig uses 15mm rods throughout. Two accessory mounting rods are included for the top of the side cage. - Key Features
-
- Multi-component shoulder rig for DSLRs/mid-size cameras
- Includes a follow-focus, whip, cage, grip handles, top handle, and more
- 0.8 gear pitch
- Beveled marking disk
- Flexible, 14.5" long focus whip
- Height-adjustable camera platform
- Quick release plate with a 1/4"-20 mounting screw
- Up/down and forward/backward adjustable grip handles
- Heavy duty shoulder pad
- 15mm rod system; two accessory mounting rods
UPC: 034447011404 In the Box Dot Line V10 Rig Complete 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dot Line V10 Rig Complete in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDot Line DL-V10 Specs | Rod Type | 15 mm | | Follow Focus Gear Pitch | 0.8 | | Focus Whip Length | 14.5" (37 cm) | | Camera Mount Type | 1/4"-20 | | Camera Platform Adjustability | Approx. 1" (2.5 cm) | | Total Weight | 9.15 lb (4.15 kg) | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 17.5 x 12.4 x 8.7" |
