User Manual for Dotworkz D2-CD-T 12V COOLDOME Enclosure with Active Cooling and Vandal Tough Tinted Lens Click to enlarge the picture
Contents of the user manual for the Dotworkz D2-CD-T 12V COOLDOME Enclosure with
- Product category: Housings Dotworkz
- Brand: Dotworkz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dotworkz Housings
|
User manual for the Dotworkz D2-CD-T 12V COOLDOME Enclosure with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dotworkz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dotworkz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dotworkz product will considerably shorten its lifespan!
|

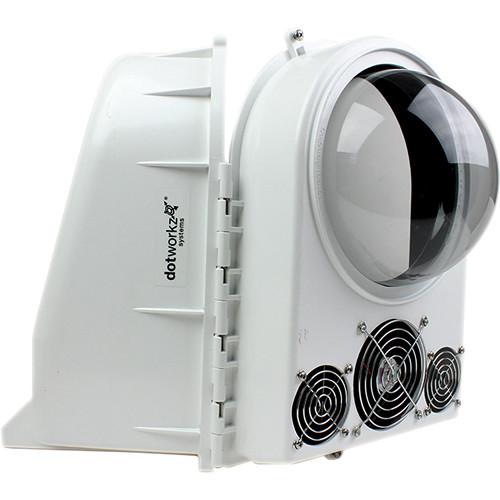

Product description The D2-CD-T 12V COOLDOME Enclosure with Active Cooling and Vandal Tough Tinted Lens from Dotworkz is designed with active on-board and thermostatically controlled air conditioning, to protect both cameras and other system related hardware in one easy to install engineered form factor. It is designed as complete outdoor solution housing for advanced camera system deployments in hot environment where temperatures exceed 105°F (41°C) but reaches as high as 155°F (68°C). The COOLDOME will protect the camera inside the enclosure up to 158°F (70°C) ambient temperature. The differential between the ambient temperature and the temperature inside the COOLDOME Enclosure can be as much as 45°F (25°C).
The COOLDOME Active Cooling technology offers outdoor camera protection system designed to protect the camera from extreme heat and direct sunlight. The COOLDOME is engineered for climates where heat damage can occur. It is IP66 rated, integrated IP68 waterproof cable ports, airtight, and sealed against outside air, dust, and salt water. Internal mounting space designed for routers, cell networks, hard drives, UPS, WiMax, and mesh hardware. - COOLDOME thermostatically-controlled active cooling technology
- Provides protection up to 158°F (70°C) with a difference of up to 45°F (25°C) with the ambient temperature
- Virtually indestructible Polycarbonate Thermal Plastic alloy material
- Integrated Dual Layer (Foil/Foam) Internal thermo-blanket protects electronics from solar-heat and UV Rays to reduce solar-loading and protects from cold weather conditions, creating a stable internal camera environment
- Internal bracket included for PTZ, megapixel, or mini dome cameras
- Switchable upper and lower camera mounting locations for maximum versatility and internal storage space utilization
- IP66 rated, airtight, and sealed against outside air, dust, water, and salt water
- Includes IP68 waterproof connection ports
In the Box Dotworkz D2-CD-T 12V COOLDOME Enclosure with Active Cooling and Vandal Tough Tinted Lens IP68 Waterproof Connection Ports Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dotworkz D2-CD-T 12V COOLDOME Enclosure with Active Cooling and Vandal Tough Tinted Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDotworkz D2 Series Specs | Operating Temperature | Absolute: -40 to 158°F (-40 to 70°C)
Recommended: 30 to 145°F (-1 to 63°C) | | Power Consumption | 9 A @ 12 DC typical at full load without camera | | Input Power | Source Options: 12 VDC, 110 VAC, or 220 VAC | | Outputs | For Camera Power: 12 VDC | | Internal Power | 3 A @ 12 VDC on typical model | | Dimensions (L x H x W) | 14.9 x 13.4 x 11.7" (38.0 x 34.0 x 30.0 cm) | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 13.1 lb | | Box Dimensions (LxWxH) | 17.4 x 15.9 x 13.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
