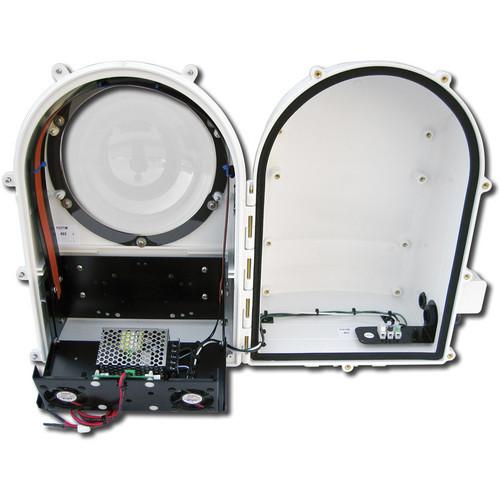

User Manual for Dotworkz D2 Ring of Fire Camera Enclosure Click to enlarge the picture
Contents of the user manual for the Dotworkz D2 Ring of Fire Camera
- Product category: Housings Dotworkz
- Brand: Dotworkz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dotworkz Housings
|
User manual for the Dotworkz D2 Ring of Fire Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dotworkz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dotworkz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dotworkz product will considerably shorten its lifespan!
|
Product description The Dotworkz Ring of Fire De-Icing Enclosure with MVP can be used in extremely cold environments. The built-in heater system shields the camera in temperatures as low as -40°F (-40°C) while the patented de-icing/defrosting circuitry keeps the viewing window free from fog and ice. In addition to protecting the camera from the cold, this housing is IP66 rated against dust, water, and salt water air ingress and features IP68 rated connection ports.
This housing can be powered from a 24VAC, 110VAC or 220VAC power source. It also has internal 12VDC and 24VAC outputs to power an IP or analog camera.
This housing is compatible with most analog or IP PTZ dome cameras and has extra room to accommodate peripherals such as encoders, hard drives, routers, etc. A switchable internal mounting mechanism allows top and bottom camera placement for versatile camera positioning and for maximizing internal space. The lower dome is impact resistant and at the same time is optically correct to ensure maximum image sharpness. - IP and analog camera compatible
- Vari-Fit internal bracket included for perfect fit
- Impact resistant polycarbonate thermal plastic
- Thermostatically controlled de-icing and heating element
- Rated protection down to -40°F
- IP66 rated against dust, water, and salt water air
- IP68 (waterproof) connection ports
- Onboard Component mounting space for: routers, cell networks, hard drives, UPS, WiMAX, mesh hardware, etc
- Onboard antenna mounting tab
UPC: 853523006307 In the Box Dotworkz D2 Ring of Fire Camera Enclosure 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dotworkz D2 Ring of Fire Camera Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDotworkz D2 Series Specs | Mount Type | Wall mount (optional corner, pole brackets available) | | Compatible Cameras | Analog or IP PTZ camera | | Clear or Tinted | Clear | | Construction | Housing: Dotworkz thermoplastic alloy
Bubble: Precision view high impact acrylic | | Enclosure Rating | IP66 with IP68 connection ports | | Operating Temperature | Absolute: -40 ~ +140°F (-40 ~ +60°C)
Recommended: -40 ~ +120°F (-40 ~ +49°C) | | Power Input | 24VAC, 110VAC, or 220VAC | | Power Output | (to camera)
IP: 12VDC, 24VDC
AC (CCTV): 12VDC, 24VAC | | Power Consumption | 3 amps @ 115VAC typical at full load | | Dimensions (WxHxD) | 11.7 x 13.4 x 14.9" (297 x 340 x 378mm) | | | | Package Weight | 13.05 lb | | Box Dimensions (LxWxH) | 17.3 x 15.9 x 13.1" |
