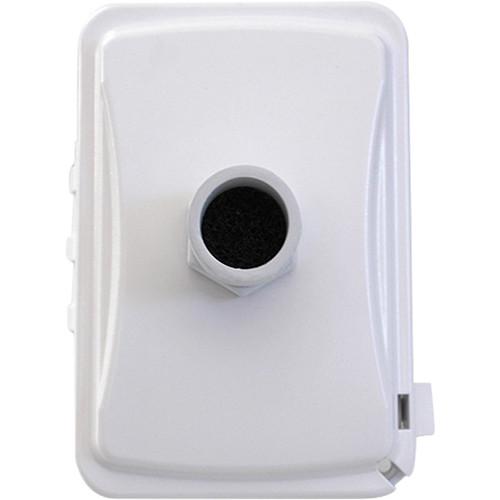

User Manual for Dotworkz KT-MIC Outdoor Microphone Kit Click to enlarge the picture
Contents of the user manual for the Dotworkz KT-MIC Outdoor Microphone Kit
- Product category: Housing Accessories Dotworkz
- Brand: Dotworkz
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dotworkz Housing Accessories
|
User manual for the Dotworkz KT-MIC Outdoor Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dotworkz product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dotworkz user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dotworkz product will considerably shorten its lifespan!
|
Product description The Dotworkz KT-MIC Outdoor Microphone Kit is engineered for crystal clear outdoor live audio monitoring and recording. The mic works with all IP and analog security cameras via the 3.5mm stereo plug. The KT-MIC is made of durable ABS plastic, offering protection against water, rust, oxidation, and UV. It works in both indoor and outdoor applications. This passive microphone audio system is watertight and built to withstand extreme conditions with an IP68 rated sealed multi-port cable gland. Its omni-directional pattern is adjustable to optimize audio pick up, with a built-in acoustic backdrop for long-range boundary operations. - Works with all Dotworkz D Series and S Type enclosures
- Durable non-corrosive ABS mic housing for indoor or outdoor use
- Integrated 3.5mm stereo plug
- M20 IP68 sealed multi-port cable gland (integrated; Dotworkz housing ready)
- 6' all-weather outdoor cable with UV shielded protection cable braid
- Adjustable wall bracket with mounting hardware
- Rugged back housing is NEC & NEMA 3R compliant, white ABS plastic
- Ready for 1/4" bolt or screw fastener (2x) for surface mounting
- Omni-directional pattern up to 25'
- Requires only one cable to install with no power source needed
- Can be used in perimeter/intrusion detection, surveillance/access control, data/telecom equipment, base stations, bridges, repeaters, traffic/highway/railway sensors, gas/oil field equipment, farm/agricultural sensors, and more
UPC: 857562008193 In the Box Dotworkz KT-MIC Outdoor Microphone Kit Mounting Hardware Standard 3mm Mic Input Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dotworkz KT-MIC Outdoor Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDotworkz KT-MIC Specs | Frequency Response | 20 Hz to 18 kHz | | Sensitivity | -50 db | | S/N Ratio | 40 db | | Load Resistance | 300-5K Ohm load resistance | | Construction | ABS Plastic | | Dimensions (D x W x H) | 4.7 x 4.0 x 6.0" (11.9 x 10.1 x 15.2 cm) | | Weight | 1.0 lb (0.4 kg) |
