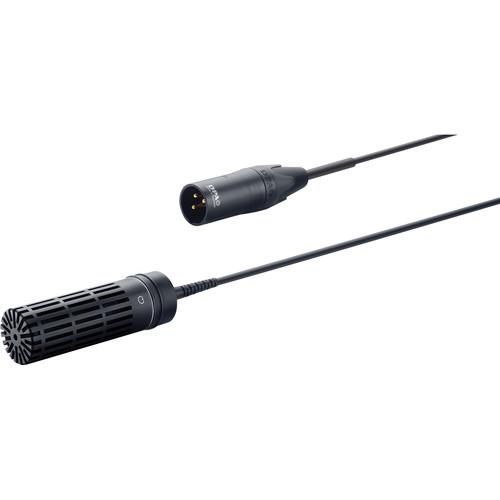

User Manual for DPA Microphones 2011ER Cardioid Microphone, Active Rear Cable Click to enlarge the picture
Contents of the user manual for the DPA Microphones 2011ER Cardioid Microphone, Active
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 2011ER Cardioid Microphone, Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 2011ER Cardioid Microphone, Active Rear Cable from DPA is designed for capturing audio and can be used in various environments, including theater, recording studios, broadcast TV, and similar applications. It features a cardioid directional pattern and a frequency range of 20 Hz to 20 kHz. The microphone contains an MMP-E active cable preamp, which splits amplification and phantom power duties. Additionally, the microphone offers a modular capsule with high-quality directivity control and radio frequency interference rejection. The 2011ER capsule is also suitable for capturing instruments in sound reinforcement applications. The capsule's twin diaphragm is designed to provide a fast impulse response and large frequency bandwidth, resulting in low inherent noise. The microphone's modular design allows users to manually switch optional capsules for enhanced versatility and performance. The preamp terminates with a 12mm attachment at one end and an XLR connector at the other. The 2011ER features a compact appearance and includes a SM4000-C Suspension Mount. - Two opposite facing miniature capsules are custom re-built into a double diaphragm, one-capsule composition
- Linear off-axis response in a small frequency bandwidth provides a high stage separation and gain-to-feedback with easy to control mic levels
- Blends clarity, richness, and dynamics
- Modular flexibility allows you to transform the basic 2011E microphone into a new configuration by combining it with another DPA microphone capsule or preamp
In the Box DPA Microphones 2011ER Cardioid Microphone, Active Rear Cable SM4000-C Suspension Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 2011ER Cardioid Microphone, Active Rear Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 2011ER Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 74 dB A-Weighted | | Equivalent Noise Level | 20 dB A-Weighted
33 dB ITU-R 468 | | Maximum SPL | 144 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB | | CMRR | 40 dB | | Dynamic Range | 117 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 µA | | Operating Voltage | 48 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 1.38" / 35 mm | | Diameter | 0.75" / 19 mm | | Weight | 4.06 oz / 115 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 4.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
