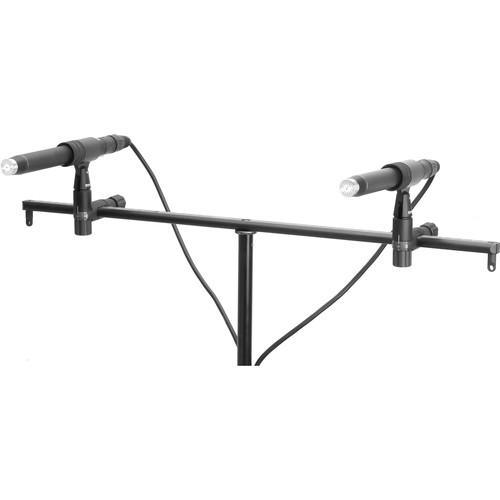

User Manual for DPA Microphones 3506A Stereo Kit with 4006A Omnidirectional Microphones Click to enlarge the picture
Contents of the user manual for the DPA Microphones 3506A Stereo Kit with
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 3506A Stereo Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 3506A Stereo Kit with 4006A Omnidirectional Microphones from DPA is designed for the crucial capturing of instruments or vocals in recording and live sound reinforcement applications. The kit includes two frequency matched 4006A omnidirectional microphones, two 30mm ball acoustic pressure equalizers, two 40mm ball acoustic pressure equalizers, two 50mm ball acoustic pressure equalizers, two free-field grids, two close-miking grids, two diffuse-field grids, two nose cones, two foam windscreens, two microphone clips, and one stereo boom without holders. The 4006A microphones are matched within ± 0.5 dB on frequency range, sensitivity, and self-noise. A high sensitivity, low noise-floor, and linear frequency response allow for use of the microphone with professional A-B stereo recordings. - The kit includes a frequency and sensitivity matched pair of 4006A omnidirectional microphones
- Linear frequency response, particularly at the high-end
- Clean, neutral sonic character
- Omnidirectional polar pattern
- Can be used for A-B stereo pairs in symphonic concert hall recordings
In the Box DPA Microphones 3506A Stereo Kit with 4006A Omnidirectional Microphones 2 x 4006A Omnidirectional Microphone 2 x Nearfield Frequency Grid 2 x Close-Miking Frequency Grid 2 x Diffuse-field Frequency Grid 2 x UA0777 Nose Cone 2 x UA0896 Windscreen for 0.75" (19mm) Microphones 2 x Microphone Holder 2 x APE30RS Acoustic Pressure Equalizer, 30mm Ball for 4006A and 4006C Microphone 2 x APE40RS Acoustic Pressure Equalizer, 40mm Ball for 4006A and 4006C Microphone 2 x APE50RS Acoustic Pressure Equalizer, 50mm Ball for 4006A and 4006C Microphone Stereo Boom Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 3506A Stereo Kit with 4006A Omnidirectional Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 3506A Specs | | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.63" / 16 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 10 Hz to 20 kHz | | Signal to Noise Ratio | 79 dB A-Weighted | | Equivalent Noise Level | 15 dB A-Weighted
27 dB ITU-R 468 | | Maximum SPL | 147 dB SPL | | Pad | -20 dB | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -28 dB at 250 Hz | | CMRR | 60 dB | | Dynamic Range | 124 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 122°F / -40.00 to 50.00°C | | Operating Humidity | 90 | | Length | 6.69" / 170 mm | | Diameter | 0.75" / 19 mm | | Weight | 5.75 oz / 163 g | | | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 4.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
