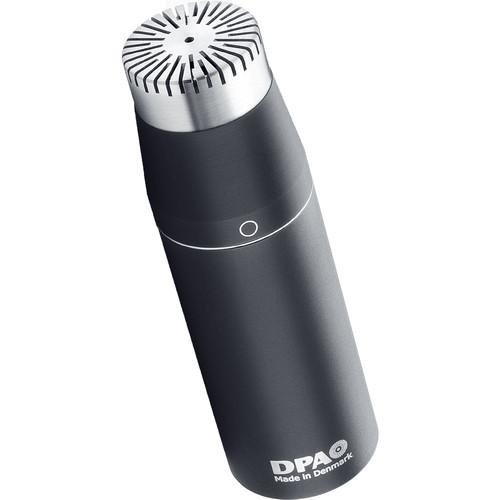

User Manual for DPA Microphones 4006C Omnidirectional Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4006C Omnidirectional Microphone
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4006C Omnidirectional Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The compact 4006C Omnidirectional Microphone from DPA is designed for capturing vocals, close miking instruments, amplifier cabinets, and similar sources in live sound reinforcement and crucial recording applications. It features an omnidirectional condenser element for linear high-frequency response and detail. Additionally, the microphone maintains a linear tonal response when closely positioned near speaker cabinets, percussion, and other instruments. Separately sold acoustic modification accessories, including nose cone and interchangeable protection grids, allow the 4006C to acoustically transform without changing the phase and sonic character of the microphone. There is an output stage that provides faithful recreations of the original source material and an included microphone clip, close-miking grid, diffuse-field grid, free-field grid, and windscreen. - Maximum linearity, particularly at the high-end
- Clean, neutral sonic character
- Omnidirectional polar pattern
- Can be used for A-B stereo pairs in symphonic concert hall recordings
In the Box DPA Microphones 4006C Omnidirectional Microphone (Compact) UA0639 Microphone Clip ffzwdercdz Close-Miking Frequency Grid Diffuse-field Frequency Grid Nearfield Frequency Grid DUA0020 Small Microphone Windscreen (Dark Gray) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4006C Omnidirectional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4006C Specs | | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.63" / 16 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 10 Hz to 20 kHz | | Signal to Noise Ratio | 79 dB A-Weighted | | Equivalent Noise Level | 15 dB A-Weighted
27 dB ITU-R 468 | | Maximum SPL | 140 dB SPL | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -28 dB | | CMRR | 50 dB | | Dynamic Range | 119 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 2.52" / 64 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.22 oz / 63 g |
