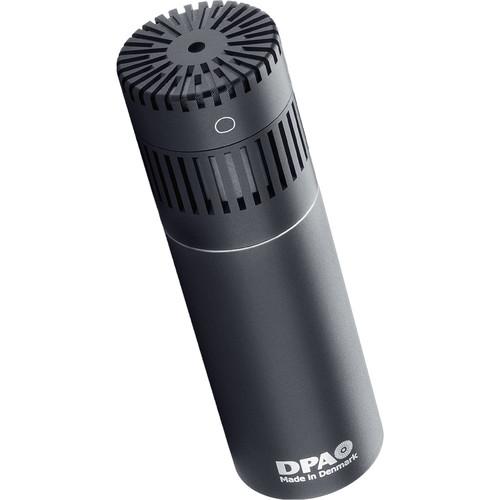

User Manual for DPA Microphones 4015C Wide Cardioid Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4015C Wide Cardioid Microphone
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4015C Wide Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The compact 4015C Wide Cardioid Microphone from DPA is designed for capturing vocals, close miking instruments, amplifier cabinets, and similar sources in live sound reinforcement and crucial recording applications. It features a wide cardioid condenser element for minimizing off-axis noise and providing a linear tonal response at the off-axis sections. Additionally, the microphone maintains a linear tonal response when closely positioned near speaker cabinets, percussion, and other instruments. There is an output stage that provides faithful recreations of the original source material and an included windscreen and microphone clip. - Wide cardioid pattern provides a compromise between omni and directional microphones
- Equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments, and vocals
- Flat on-axis frequency response and maximum phase response
- Linear off-axis characteristics
In the Box DPA Microphones 4015C Wide Cardioid Microphone (Compact) UA0639 Microphone Clip ffzwdercdz DUA0020 Small Microphone Windscreen (Dark Gray) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4015C Wide Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4015C Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Wide-Angle Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 152 dB SPL | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB | | CMRR | 50 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 2.52" / 64 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.05 oz / 58 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 10.8 x 6.2 x 2.0" |
