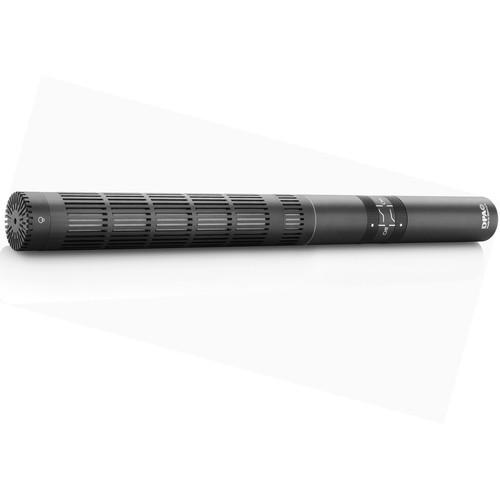

User Manual for DPA Microphones 4017B Shotgun Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4017B Shotgun Microphone
- Product category: Shotgun Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Shotgun Microphones
|
User manual for the DPA Microphones 4017B Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4017B Shotgun Microphone from DPA is a professional, versatile microphone designed for demanding sound capturing in film, video, sound reinforcement and even music recording. The supercardioid, lobe-shaped polar pattern is coupled with excellent off-axis signal rejection for a focused pickup, enhanced range and minimal noise. The condenser capsule uses a high voltage pre-polarized back plate, endowing the shotgun with high output as well as wide dynamics, extremely low noise and distortion specifications.The 4017B's frequency response, dynamic range, and signal-to-noise ratio result in pristine, transparent signal reproduction. Two onboard filters eliminate noise and artifacts with a 4dB shelf at 8kHz and a first-order bass roll-off below 120Hz. The short, lightweight profile of the 4017B make it a suitable choice for both indoor and outdoor production with boompoles, handheld shock-mounts, etc. - Wide Frequency Response and Excellent Clarity
- The 4017B's frequency response, dynamic range, and signal-to-noise ratio result in pristine, transparent signal reproduction.
- Superb Off-Axis Rejection
- The supercardioid, lobe-shaped polar pattern is coupled with excellent off-axis signal rejection for a focused pickup, enhanced range and minimal noise, etc.
- Short and Lightweight Profile
- The short, lightweight profile of the 4017B make it a suitable choice for both indoor and outdoor production with boompoles, handheld shock-mounts, etc.
In the Box DPA Microphones 4017B Shotgun Microphone UA0639 Microphone Clip DUA0073 Windscreen for 4017 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4017B Shotgun Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4017B Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Tube | Yes | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB A-Weighted | | Equivalent Noise Level | 13 dB A-Weighted
24 dB ITU-R 468 | | Maximum SPL | 138 dB SPL | | THD | < 1% | | Impedance | 150 Ohms | | Sensitivity | -34.4 dB at 1 kHz | | Low-Cut Filter | 4 dB/Octave @ 8 kHz
4 dB/Octave @ 50 Hz
4 dB/Octave @ 120 Hz | | CMRR | 40 dB | | Dynamic Range | 119 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.5 mA | | Operating Voltage | 1.8 V
48 V ± 4 V | | Operating Temperature | 14 to 113°F / -10.00 to 45.00°C | | Operating Humidity | 90 | | Length | 8.35" / 212 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.40 oz / 68 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 10.7 x 6.2 x 2.8" |
