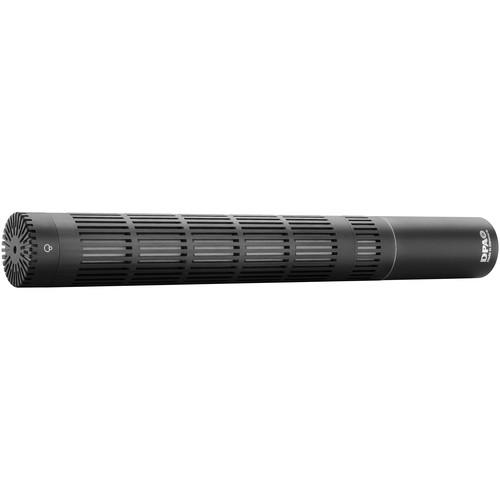

User Manual for DPA Microphones 4017C Compact Shotgun Microphone with MMP-C Preamp Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4017C Compact Shotgun Microphone
- Product category: Shotgun Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Shotgun Microphones
|
User manual for the DPA Microphones 4017C Compact Shotgun Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4017C Compact Shotgun Microphone with MMP-C Preamp from DPA Microphones is for capturing audio. It is used for various audio and video applications such as wedding videography, film, broadcast TV, recording studios, and more. It features a supercardioid lobe-shaped directional pattern and is a pre-polarized condenser microphone. The 4017C has a frequency response of 20 Hz to 20 kHz and is powered by 48V phantom power. It is featured with the compact MMP-C pre-amp so booming applications such as in a car or in low ceiling rooms is uncomplicated. The total length of the microphone is 6.1" and it weighs only 2.5 oz making it great for camera videographers. The 4017C microphone is built with an XLRM output connector. Foam windscreen and microphone clip are included. - Great for use in the field where off-axis damping is required
- The C amplifier purposely uses a non-transformer approach to preserve sound quality while providing common mode rejection at or above 50 dB
- Microphone super-cardioid polar pattern is highly directional
In the Box DPA Microphones 4017C Compact Shotgun Microphone with MMP-C Preamp Foam Windscreen Microphone Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4017C Compact Shotgun Microphone with MMP-C Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4017C Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Tube | Yes | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 81 dB A-Weighted | | Equivalent Noise Level | 13 dB A-Weighted
24 dB ITU-R 468 | | Maximum SPL | 146 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -34.4 dB at 1 kHz | | CMRR | 50 dB | | Dynamic Range | 124 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 6.06" / 154 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.47 oz / 70 g | | | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 4.0" |
