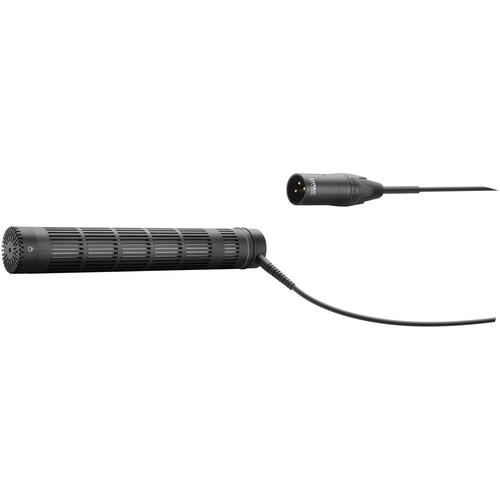

User Manual for DPA Microphones 4017ES Shotgun Microphone with Side Active Cable Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4017ES Shotgun Microphone with
- Product category: Shotgun Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Shotgun Microphones
|
User manual for the DPA Microphones 4017ES Shotgun Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4017ES Shotgun Microphone with Side Active Cable from DPA Microphones is for capturing audio. It is used for various audio and video applications such as film, broadcast TV, recording studios, and more. It features a supercardioid lobe-shaped directional pattern and is a pre-polarized condenser microphone. The 4017ES has a frequency response of 20 Hz to 20 kHz and is powered by 48V phantom power. It is featured with the compact MMP-E pre-amp so booming applications such as actors or distant voice dialogue for broadcast and video situations is uncomplicated. The total length of the microphone is 4.9" and it weighs only 1.1 oz, making it great for hanging from the ceiling to create precision spot miking of orchestra sections or ambience atmosphere. The 4017ES microphone is built with an XLR-3M integrated cable output connector. Foam windscreen and microphone clip are included. - Great for use in the field where off-axis damping is required
- The C amplifier purposely uses a non-transformer approach to preserve sound quality while providing common mode rejection at or above 50 dB
- The super-cardioid polar pattern is highly directional with excellent off-axis signal rejection for a focused pickup and enhanced range
In the Box DPA Microphones 4017ES Shotgun Microphone with Side Active Cable Foam Windscreen SM4000-C Suspension Mount Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4017ES Shotgun Microphone with Side Active Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4017ES Specs | Directional Pattern | Supercardioid, lobe-shaped | | Principle of Operation | Pressure gradient, with interference tube | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz to 20 kHz
± 2 db at 60 cm: 40 Hz to 18 kHz with typ. 3 dB soft boost at 15 kHz | | Sensitivity | Nominal, ± 2 dB at1 kHz: 19 mV/Pa; -34 dB re. 1 V/Pa | | Equivalent Noise Level | A-weighted: Typ. 13 dB (A) re. 20 µPa (max. 15 dB(A))
ITU-R BS.468-4: Typ. 24 dB (max 26 dB) | | Signal to Noise Ratio | A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 81 dB(A) | | Total Harmonic Distortion | < 1 % up to 137 dB SPL peak | | Dynamic Range | Typ. 124 dB | | Max SPL Level | Peak before clipping: 138 dB | | Output Impedance | 100 Ω | | Minimum Load Impedance | 2 kΩ | | Cable Drive Capability | 328' (100 m) | | Output Balance Principle | Impedance balancing | | Common Mode Rejection Ratio | > 40 dB | | Power Supply | 48 V Phantom power (± 4 V) for full specification | | Current Consumption | 3.5 mA | | Connector | XLR-3M pin 1 shield, pin 2 signal + phase, pin 3 phase | | Temperature | -40 to 113 °F (-40 to 45 °C) | | Relative Humidity | Up to 90% | | Output Voltage | RMS: 2.2 V | | Polarity | +V at pin 2 for positive sound pressure | | Dimensions (LxDiameter) | 4.9 x 0.75" (125 x 19 mm) | | Weight | 4.3 oz (121 g) |
