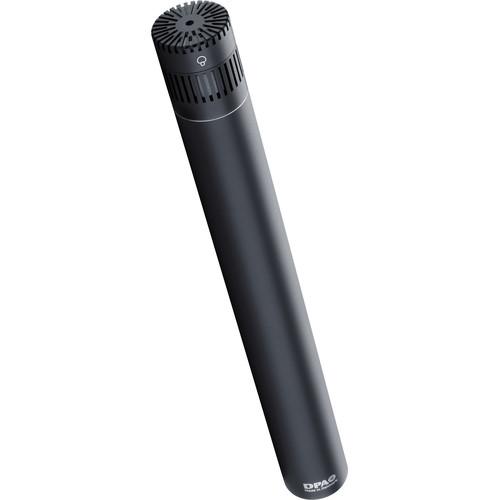

User Manual for DPA Microphones 4018A Supercardioid Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4018A Supercardioid Microphone
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4018A Supercardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4018A Supercardioid Microphone from DPA is designed for capturing professional-grade audio. It can be used for a broad range of music recording and long-distance broadcast/ENG/film miking applications such as booming, dialogue, interview, and table or spot-recording. It is also suitable for use as a spot or hanging microphone for orchestra recording situations. The microphone features a uniform and well controlled supercardioid pattern for high separation without off-axis frequency peaks and dips, providing an even sound around the microphone. Additionally, the rear lobe pattern on the microphone is minimized for isolation. The 4018A offers a frequency range of 10 Hz to 20 kHz and is powered by 48V of phantom power. A microphone clip and windscreen are included. - Highly directional supercardioid pattern
- Uniform, frequency independent directionality
- Low noise and high sensitivity for distant positioning
- Can be used for spot miking orchestra sections or singers
In the Box DPA Microphones 4018A Supercardioid Microphone Microphone Clip Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4018A Supercardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4018A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Supercardioid | | Frequency Range | 10 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 157 dB SPL | | Pad | -20 dB | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -38.4 dB at 1 kHz | | CMRR | 60 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 6.69" / 170 mm | | Diameter | 0.75" / 19 mm | | Weight | 5.57 oz / 158 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 11.7 x 7.7 x 3.9" |
