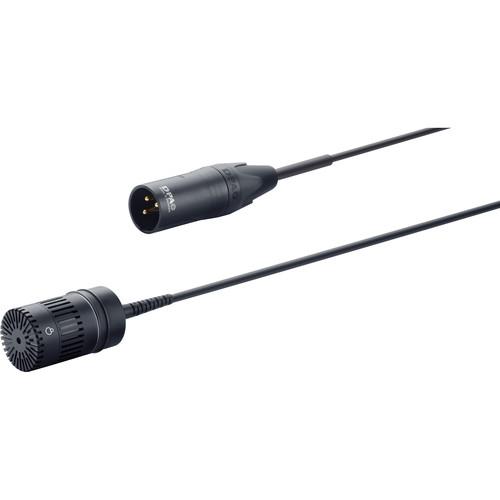

User Manual for DPA Microphones 4018ER Supercardioid Microphone with Rear Active Cable Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4018ER Supercardioid Microphone with
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4018ER Supercardioid Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4018ER Supercardioid Microphone with Rear Active Cable from DPA is designed for capturing professional-grade audio. It can be used for music recording in broadcast, ENG, film, and long-distance miking applications such as booming, dialogue, interview, and table or spot-recordings. The microphone features a uniform and controlled supercardioid capsule that provides maximum separation without off-axis frequency peaks and dips for an even sound around the microphone. Additionally, the rear lobe pattern is minimized for isolation. The 4018ER offers a frequency range of 20 Hz to 20 kHz and is suitable for use as a spot or hanging mic for orchestra recording situations. The microphone is powered by 48V of phantom power and includes an SM4000-C suspension mount. - Directional supercardioid pattern
- Uniform frequency with independent directionality
- Low noise and high sensitivity for distant positioning
- Can be used for spot miking orchestra sections and singers
In the Box DPA Microphones 4018ER Supercardioid Microphone with Rear Active Cable SM4000-C Suspension Mount Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4018ER Supercardioid Microphone with Rear Active Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4018ER Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 142 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -38.4 dB | | CMRR | 40 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 1.38" / 35 mm | | Diameter | 0.75" / 19 mm | | Weight | 3.84 oz / 109 g |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
