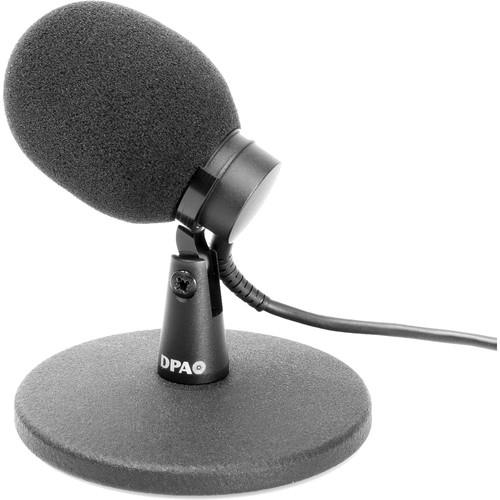

User Manual for DPA Microphones 4018ES-T Supercardioid Table Kit Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4018ES-T Supercardioid Table Kit
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4018ES-T Supercardioid Table Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4018ES-T Supercardioid Table Kit Microphone from DPA is designed for capturing professional-grade audio. It can be used in applications such as broadcast, ENG, film, and long-distance miking environments. With a length of 3.5cm, the microphone is unobtrusive and suitable for interviews or table and spot-recordings. The microhpone features a supercardioid capsule and a frequency range of 20 Hz to 20 kHz. It is powered by 48V of phantom power. The 4018ES-T kit features an MMP-E series active cable preamp which comes with a side mounted cable connected to the capsule. The microphone provides high separation without off-axis frequency peaks and dips, for an even sound on all sides. The rear lobe pattern is minimized for isolation, allowing for use as a spot or hanging microphone in orchestra recording situations. An SM4000-C suspension mount, table stand, and windscreen are included. - Ideal for unobtrusive or distant miking, such as desktop use
- Highly directional supercardioid pattern
- Uniform and frequency consistent polar pattern
- 3.5cm microphone for an inconspicuous appearance
- Can be used for spot miking orchestra sections or singers
In the Box DPA Microphones 4018ES-T Supercardioid Table Kit Microphone SM4000-C Suspension Mount Table Stand Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4018ES-T Supercardioid Table Kit Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4018ES Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 142 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -38.4 dB at 1 kHz | | CMRR | 40 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 1.38" / 35 mm | | Diameter | 0.75" / 19 mm | | Weight | 3.84 oz / 109 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
