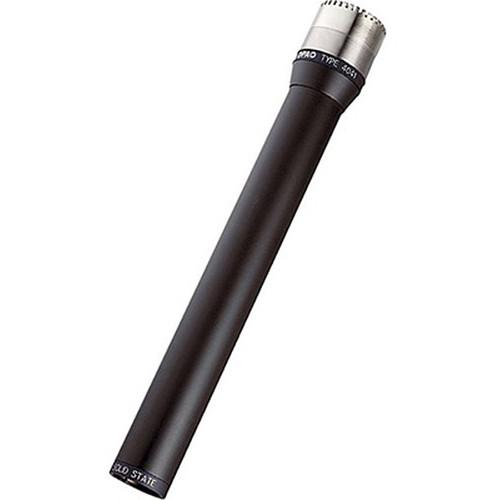

User Manual for DPA Microphones 4041-SP Large-Diaphragm Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4041-SP Large-Diaphragm Microphone
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4041-SP Large-Diaphragm Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4041-SP Large-Diaphragm Microphone from DPA is a professional, highly versatile omnidirectional modular microphone for use in professional recording applications. The 4041-SP consists of the company's MMC4041 Large-Diaphragm Capsule and MMP-4000SP 48V phantom solid state preamplifier. There is also an included microphone holder for securing the microphone in a wide range of situations. The modular design enables the 4041 to be interchanged with any of the available DPA modular preamplifiers. The sensitivity and acoustic characteristics of the 4041 make it an excellent choice for vocals, instruments, orchestral ensembles, and similar applications. Note: All DPA microphones feature a MicroDot connection and require an adapter for use with specific wireless microphone transmitters. - Includes MMP-4000SP Preamplifier
- The modular design enables the 4041 to be used with a selection of DPA preamplifiers, achieving different signal characteristics. This version includes the MMP-4000SP 48V phantom preamplifier.
- High SPL Capability
- The highly sensitive 4041 capsule is capable of reproducing high sound pressure levels without noise and distortion.
- Flat Frequency Response
- The wide, flat frequency response provides a soft boost at 8 kHz for additional presence and intelligibility.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern maintains a uniform frequency response at the direct and off-axis sections of the capsule.
In the Box DPA Microphones 4041-SP Large-Diaphragm Microphone Microphone Holder bbbysyrrbttafvaccsvsaeyyvqeyaqbqbytzur MMP-4000SP Preamplifier MMC4041 Large-Diaphragm Capsule Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4041-SP Large-Diaphragm Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4041SP Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Diaphragm | 0.94" / 24 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz With 4 to 6 dB soft boost at 8 kHz | | Signal to Noise Ratio | 86 dB A-Weighted | | Equivalent Noise Level | 8 dB A-Weighted
20 dB ITU-R 468 | | Maximum SPL | 134 dB SPL Peak | | THD | < 0.5% | | Impedance | 200 Ohms | | Sensitivity | 70 mV/Pa | | Dynamic Range | 118 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 328' / 100 m | | Operating Current Consumption | 2.20 µA | | Operating Voltage | 48 V | | Length | 6.69" / 170 mm | | Diameter | 0.94" / 24 mm | | Weight | 0.42 lb / 190 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 1.7" |
