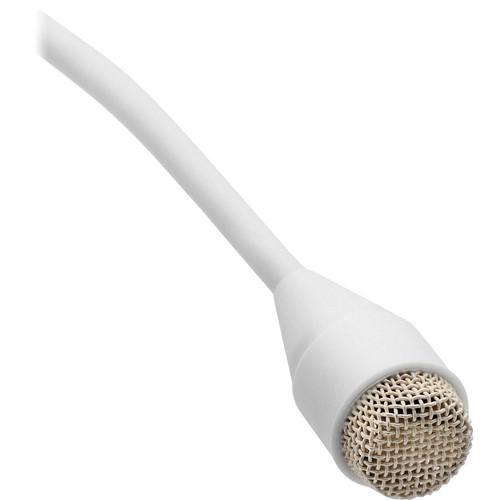

User Manual for DPA Microphones 4060-W10 Hi-Sens Omni-Directional Miniature Condenser Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4060-W10 Hi-Sens Omni-Directional Miniature
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones 4060-W10 Hi-Sens Omni-Directional Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The white 4060-W10 Hi-Sens Omni-Directional Miniature Condenser Microphone from DPA Microphones is designed for use with wireless systems in theater, television, and close-miked instrument applications. This condenser microphone is unobtrusive. Because of its small size, the tiny condenser exhibits an accurate omni-directional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.
The featured hardwire TA-4F connector is compatible with Shure Wireless Transmitters. This condenser microphone also features a 5.9’ (1.8m) cable and is supplied with 2 grids, one with a high boost and the other one with a soft boost. By changing these grids, you can acoustically modify the microphone's response according to its placement on the body including the chest, head, etc.
Offering good detail and resolution, the 4060-W10 Hi-Sens Omni-Directional Miniature Condenser Microphone has a neutral sonic character and is natural sounding. It has a low noise floor and impressive sensitivity, and can handle high SPLs. Musicians and engineers use this condenser microphone as a live or studio microphone for close-miking acoustic string instruments like violin, guitar, bass, viola, and harp. On television, the condenser microphone is popular as a lavalier lapel and tie clip mic. In the Box DPA Microphones 4060-W10 Hi-Sens Omni-Directional Miniature Condenser Microphone (White) High-Boost Grid Soft-Boost Grid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4060-W10 Hi-Sens Omni-Directional Miniature Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4060 Specs | Characteristics | Directional Characteristics: Omni-directional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | ±2 dB
Soft-Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
High-Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz | | Sensitivity | Nominal: ±3 dB at 1 kHz: 20 mV/Pa, -34 dB re. 1 V/Pa | | Equivalent Noise Level | A-Weighted:
Typical: 23 dBA re. 20 µPa
Maximum: 26 dBA
ITU-R BS.468-4:
Typical: 35 dB
Maximum: 38 dB | | S/N Ratio | 1 kHz at 1 Pa (94 dB SPL): 71 dBA | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 100 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 134 dB | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Connector | Hardwired TA-4F connector | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Relative Humidity | Up to 90% | | Cable Length | 5.9' (1.8 m) | | Dimensions (Ø x L) | 0.21 x 0.50" (5.40 x 12.70 mm) | | Weight | 1 lb (0.5 kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
